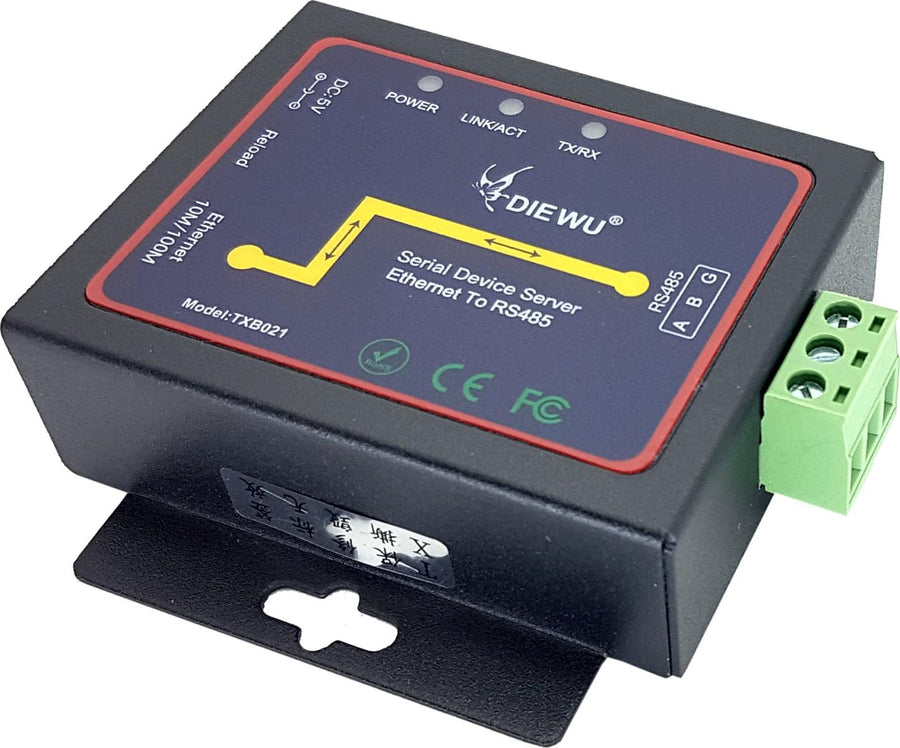

ETHERNET TO RS485 - TXB021
Ethernet To RS485 Device
Model Number: TXI021
Chipset: IP210
Port Number: 1 Port 10/100M Auto MDI-MDIX RJ45,1Port RS485
Standard: IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3az
Network Media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP
Data Rate: 10/100M
Forwarding Rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
LED Indicator: Link/Act, Power, TX/RX
Baud Rate: 110bps - 256000bps
Operation Modes: TCP Server, TCP Client, UDP
Dimension: 78 x 72 x 23mm
Power Input: DC5V
Power Consumption: Max1.5W
Environment
Operating Temperature: -10 -55
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40-85
Relative Humidity: 5%-90%(non-condensing)
Other function: Build load default key
Device Default Parameters
ID: Admin
Password: System
IP Address: 192.168.2.1
Operation Mode: TCP Server
Transmission Mode: RS485
Baud Rate: 57600bps
UART Parameters: 57600,8,N,1
Local Port
TCP:23
UDP:21
Load Default
Power off the Device
Hold the Load Default Button
Power on the Device, hold the Button for 10 seconds, then release Default Button
