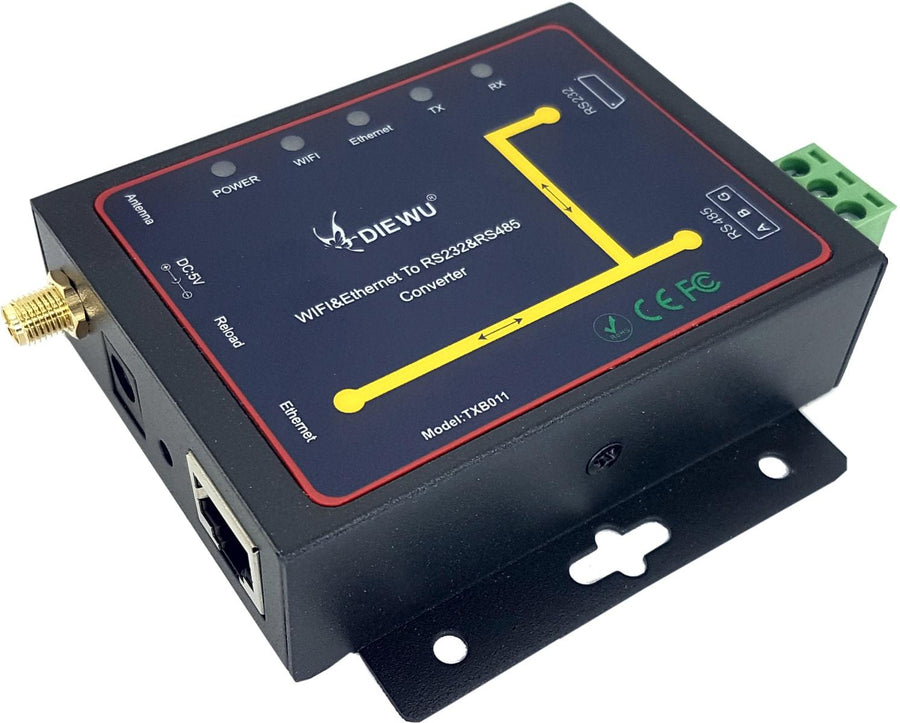

Wi-Fi TO RS232/RS485
WIFI TO RS232/RS485 - TXB011Product Specification Model Number: TXB011Chipset: Ralink,RT5350FPort Number: 1 Port 10/100M Auto MDI-MDIX RJ45,1Port RS485,1Port RS232Ethernet Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3azNetwork Media: 10Base-T, Cat3 or above UTP, 10Base-Tx, Cat5 UTPEthernet Data Rate: 10/100MWIFI Standard: IEEE802.11.b/g/nWIFI Data Rate: 11b:11Mbps, 11g:54Mbps,...
WIFI TO RS232/RS485 - TXB011
Product Specification
Model Number: TXB011
Chipset: Ralink,RT5350F
Port Number: 1 Port 10/100M Auto MDI-MDIX RJ45,1Port RS485,1Port RS232
Ethernet Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az
Network Media: 10Base-T, Cat3 or above UTP, 10Base-Tx, Cat5 UTP
Ethernet Data Rate: 10/100M
WIFI Standard: IEEE802.11.b/g/n
WIFI Data Rate: 11b:11Mbps, 11g:54Mbps, 11n:150Mbps
WIFI Mode: AP, Client
LED Indicator Power, WIFI, Ethernet, TX,RX
Baud Rate: 110bps - 115200bps
Operation Modes: TCP Server, TCP Client, UDP,VCOM
Dimension: 86 x 84 x 25mm
Power Input: DC5V
Power Consumption: Max1.5W
Environment
Operating Temperature: -10 C -55 C
Relative Humidity: 10%-90% (non-condensing)
Storage Temperature: -40 C -85C
Relative Humidity: 5%-90% (non-condensing)
Other function
Build load default key
Support P2P control
Two Com Port, Support RS232 and RS485 same time work
