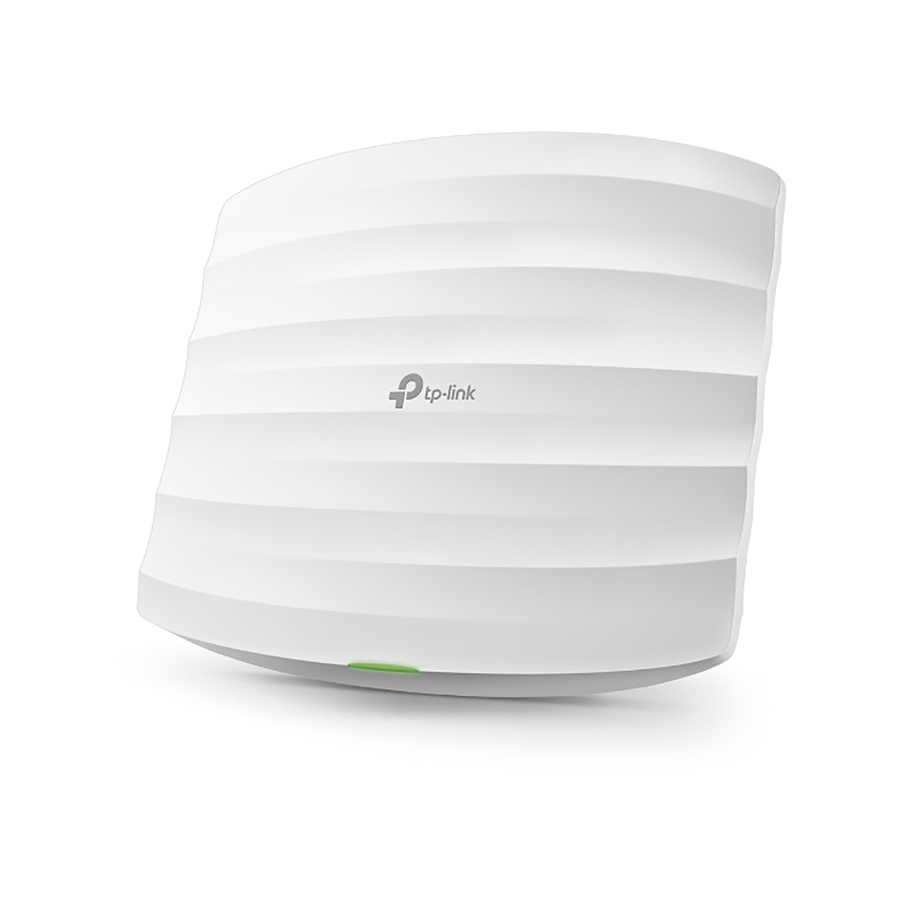

TP-Link Omada AC1350 Ceiling-Mount Dual-Band AP 1.35Gbps 2.4/5GHz 1×1G Mesh PoE
TP-Link Omada AC1350 Ceiling-Mount Dual-Band AP 1.35Gbps 2.4/5GHz 1×1G Mesh PoE The TP-Link Omada AC1350 Ceiling-Mount Dual-Band AP 1.35Gbps 2.4/5GHz 1×1G Mesh PoE is in our Wireless Access Points range and available to order online from WeShopTech. Key details – Interface: Gigabit...
TP-Link Omada AC1350 Ceiling-Mount Dual-Band AP 1.35Gbps 2.4/5GHz 1×1G Mesh PoE
The TP-Link Omada AC1350 Ceiling-Mount Dual-Band AP 1.35Gbps 2.4/5GHz 1×1G Mesh PoE is in our Wireless Access Points range and available to order online from WeShopTech. Key details – Interface: Gigabit Ethernet (RJ-45) Port ×1 (Support IEEE802.3af PoE and Passive PoE); Physical Security Lock: Yes; Button: Reset.
Key Features
- Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
- Compatibility with 802.3af and Passive PoE (PoE adpater included) support makes deployment effortless and flexible
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
- AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
Technical Specifications
| Specification | Details |
|---|---|
| Interface | Gigabit Ethernet (RJ-45) Port ×1 (Support IEEE802.3af PoE and Passive PoE) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/A PoE, 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Max. Power Consumption | EU: 10.5 W, US: 12.6 W |
| Dimensions (W × D × H) | 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) |
| Antenna | 3 Internal Omni (2.4GHz: 4 dBi, 5GHz: 5 dBi) |
| Mounting | Ceiling / Wall Mounting (Kits included) |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: Up to 867 Mbps, 2.4GHz: Up to 450 Mbps |
| Transmission Power | CE: ≤20 dBm (2.4GHz, EIRP), ≤23 dBm (5GHz, EIRP); FCC: ≤24 dBm (2.4GHz), ≤22 dBm (5GHz) |
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Omada Controller Software | Yes |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
