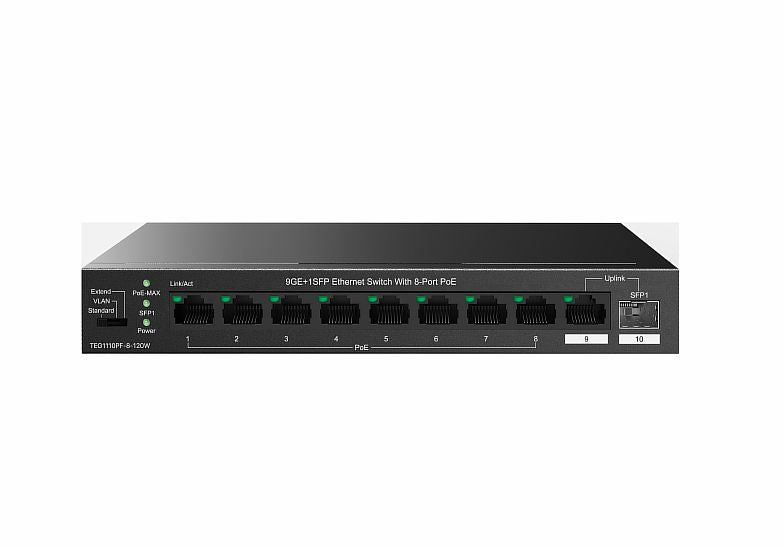

Tenda Switch 9GE+1SFP 8PORT PoE

The Tenda TEG1110PF-8-120W is an unmanaged 9-port Gigabit Ethernet switch designed for small to medium-sized networks requiring reliable PoE connectivity. With eight 10/100/1000 Mbps PoE ports compliant with IEEE 802.3af/at standards, it delivers up to 30W per port and a total PoE power budget of 92W, making it ideal for powering devices such as IP cameras, wireless access points, and VoIP phones. The switch features a three-mode toggle function: tandard Mode: All ports can communicate with each other. VLAN Mode: Ports 1–8 are isolated from each other but can communicate with port 9 and the SFP port, reducing broadcast storms. Extend Mode: Ports 1–8 operate at 10 Mbps and can transmit up to 250 meters, ideal for long-distance deployments Its 6KV lightning protection ensures robust operation in challenging environments. Key Features: 8 PoE Ports: Eight 10/100/1000 Mbps RJ45 ports with IEEE 802.3af/at compliance, delivering up to 30W per port. High PoE Power Budget: Total PoE power output of 92W, suitable for multiple PoE-enabled devices. Three Operating Modes: Standard, VLAN, and Extend modes for flexible network deployment. 6KV Lightning Protection: Protects the switch from power surges and lightning strikes. Plug-and-Play: No configuration required; simplifies installation and deployment. Technical Specifications: Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af/at Interfaces: 8 × 10/100/1000 Mbps RJ45 PoE ports, 1 × 10/100/1000 Mbps RJ45 uplink port, 1 × 1G SFP port Transmission Media: CAT5/5e UTP or better MAC Address Table: 4K entries Switching Capacity: 20 Gbps Forwarding Mode: Store-and-forward Packet Buffer Memory: 2M PoE Budget: Single port: AF: 15.4W, AT: 30W; Total device: 92W Power Consumption: 120W Lightning Protection: 6KV for ports, 6KV for power inputs Power Supply: Input: AC 100–240V~50/60Hz; Output: DC 51V?2.0A (Power Adapter) Dimensions: 177.5 mm × 104.0 mm × 26.0 mm Mounting Options: Desktop or wall-mountable Operating Temperature: 0°C to 45°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90% RH non-condensing Storage Humidity: 5% to 90% RH non-condensing
