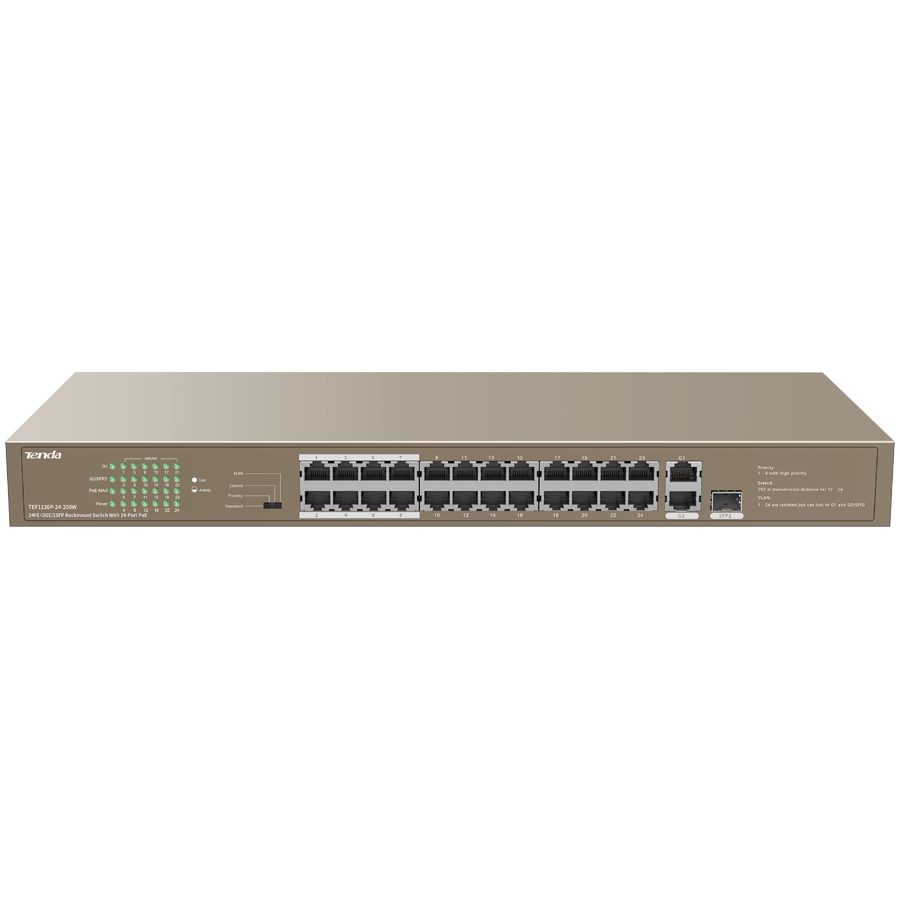

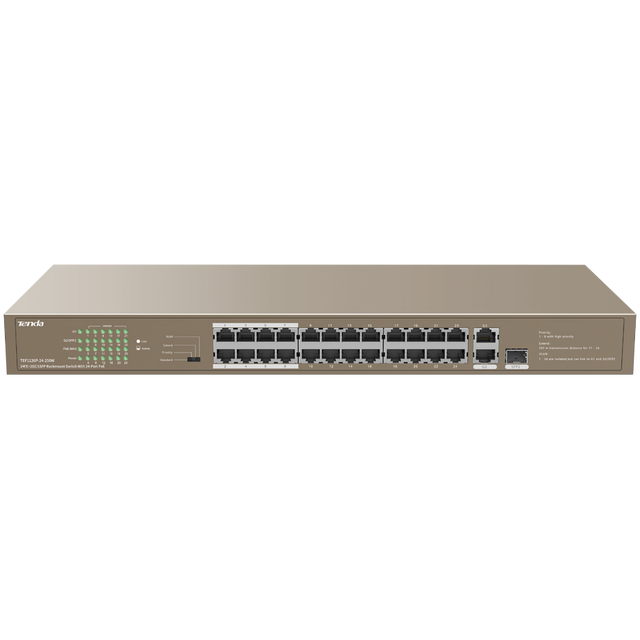

Tenda Switch 24 PoE 10/100 250W Rack

The Tenda TEF1126P-24-250W is an unmanaged 24-port Fast Ethernet switch designed for small to medium-sized networks requiring reliable PoE connectivity. With twenty-four 10/100 Mbps PoE ports compliant with IEEE 802.3af/at standards, it delivers up to 30W per port and a total PoE power budget of 230W, making it ideal for powering devices such as IP cameras, wireless access points, and VoIP phones. The switch features a 250-meter extend mode, surpassing the standard 100-meter Ethernet limitation, facilitating long-distance deployments without additional equipment. Its 6KV lightning protection ensures robust operation in challenging environments. Additionally, the TEF1126P-24-250W offers VLAN functionality to enhance network security and performance. Key Features: 24 PoE Ports: Twenty-four 10/100 Mbps RJ45 ports with IEEE 802.3af/at compliance, delivering up to 30W per port. High PoE Power Budget: Total PoE power output of 230W, suitable for multiple PoE-enabled devices. Dual Uplink Ports: Two 10/100/1000 Mbps RJ45 uplink ports for connecting to the core network. 250M Extend Mode: Enables long-distance data and power transmission up to 250 meters. VLAN Support: Isolates ports 1–24 from each other while maintaining communication with the uplink ports, enhancing network security. 6KV Lightning Protection: Protects the switch from power surges and lightning strikes. Plug-and-Play: No configuration required; simplifies installation and deployment. Technical Specifications: Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at Interfaces: 24 × 10/100 Mbps RJ45 ports (Data/Power), 2 × 10/100/1000 Mbps RJ45 uplink ports (Data), 1 × 1000 Mbps SFP port (Combo) Transmission Media: CAT5/5e UTP or better MAC Address Table: 16K entries Switching Capacity: 8.8 Gbps Forwarding Mode: Store-and-forward Packet Buffer Memory: 4M Lightning Protection: 6KV for ports, 6KV for power inputs Power Supply: Input: AC 100–240V~50/60Hz; Output: DC 51V?4.9A (Power Adapter) Dimensions: 440 mm × 178.8 mm × 44 mm Mounting Options: Desktop, wall-mountable, or rack-mountable Operating Temperature: 0°C to 45°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90% RH non-condensing Storage Humidity: 5% to 90% RH non-condensing Certifications: FCC, CE, RoHS
