Tenda Switch 16 PoE 10/100 2XUPL 1XSFP*
TENDA SWITCH 16 POE 10/100 2XUPL 1XSFP* The Tenda TEF1218P-16-250W is a Web-managed 16-port Fast Ethernet switch designed for small to medium-sized networks requiring reliable PoE connectivity. With sixteen 10/100 Mbps PoE ports compliant with IEEE 802.3af/at standards, it delivers up to...
TENDA SWITCH 16 POE 10/100 2XUPL 1XSFP*

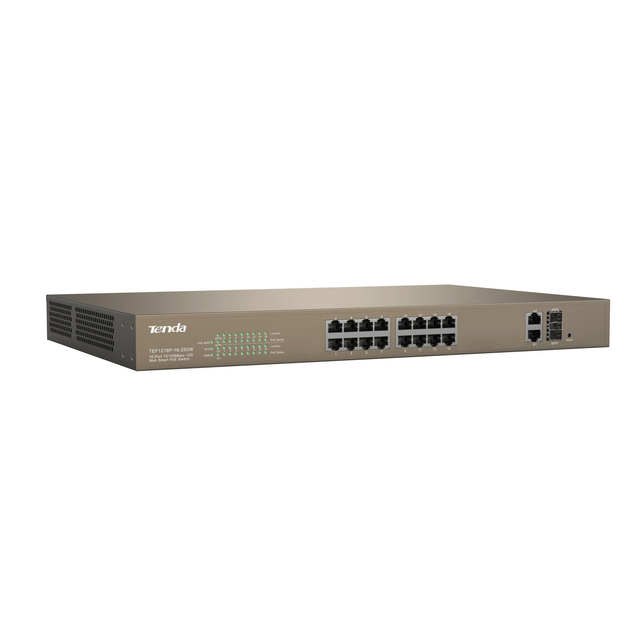

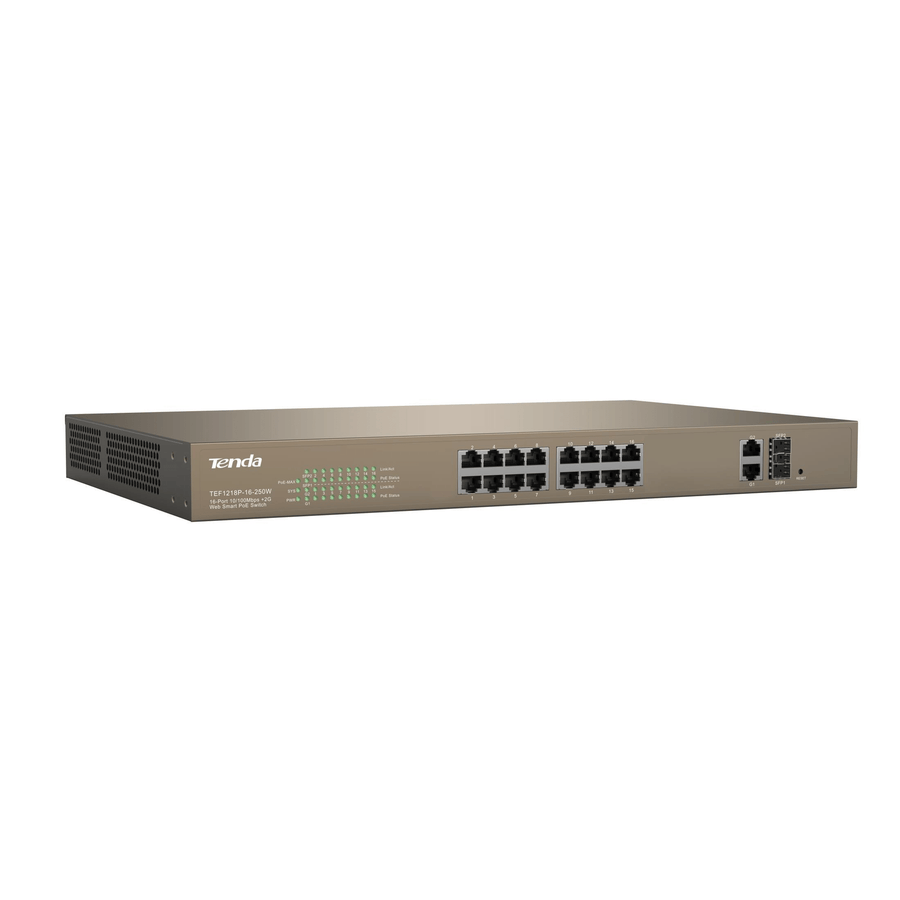

The Tenda TEF1218P-16-250W is a Web-managed 16-port Fast Ethernet switch designed for small to medium-sized networks requiring reliable PoE connectivity. With sixteen 10/100 Mbps PoE ports compliant with IEEE 802.3af/at standards, it delivers up to 30W per port and a total PoE power budget of 230W, making it ideal for powering devices such as IP cameras, wireless access points, and VoIP phones. The switch features a 250-meter extend mode, surpassing the standard 100-meter Ethernet limitation, facilitating long-distance deployments without additional equipment. Its 6KV lightning protection ensures robust operation in challenging environments. Additionally, the TEF1218P-16-250W offers VLAN functionality to enhance network security and performance.
Key Features
- 16 PoE Ports: Sixteen 10/100 Mbps RJ45 ports with IEEE 802.3af/at compliance, delivering up to 30W per port.
- 250M Extend Mode: Enables long-distance data and power transmission up to 250 meters.
- 6KV Lightning Protection: Protects the switch from power surges and lightning strikes.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Networking Switches |
| High PoE Power Budget | Total PoE power output of 230W, suitable for multiple PoE-enabled devices. |
| Dual Uplink Ports | Two 10/100/1000 Mbps RJ45 uplink ports for connecting to the core network. |
| VLAN Support | Isolates ports 1–16 from each other while maintaining communication with the uplink ports, enhancing network security. |
| Web Management | Provides a user-friendly interface for configuring and monitoring the switch. |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.3af/at |
| Interfaces | 16 × 10/100 Mbps RJ45 ports (Data/Power), 2 × 10/100/1000 Mbps RJ45 uplink ports (Data), 1 × 10/100/1000 Mbps SFP port (Combo) |
| Transmission Media | CAT5/5e UTP or better |
| MAC Address Table | 4K entries |
| Switching Capacity | 7.2 Gbps |
| Forwarding Mode | Store-and-forward |
| Packet Buffer Memory | 1.25 Mb |
| Lightning Protection | 6KV for ports, 6KV for power inputs |
| Power Supply | Input: AC 100–240V~50/60Hz; Output: DC 51V?4.9A (Power Adapter) |
| Dimensions | 440 mm × 178.8 mm × 44 mm |
| Mounting Options | Desktop or wall-mountable |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| Certifications | FCC, CE, RoHS |
