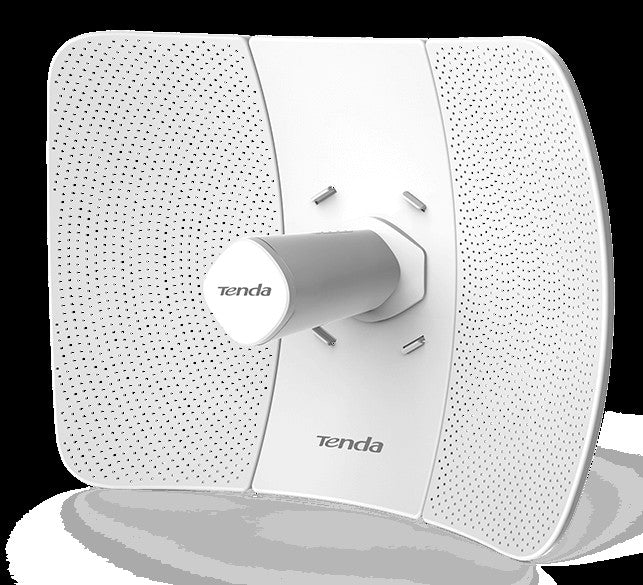

The Tenda O8 is a high-performance 5GHz 11ac outdoor CPE designed for point-to-point (PtP) and point-to-multipoint (PtMP) applications, such as private ISP wireless connectivity, CCTV surveillance, and data transmission. Equipped with a 23dBi directional vertical polarization antenna and an independent power amplifier, it ensures stable signal transmission over distances exceeding 20km. The device features auto-bridging technology, allowing two O8 units to connect automatically when powered on and aligned, simplifying setup for long-distance connections. Its IP65-rated waterproof enclosure and 6000V lightning protection ensure reliable operation in various weather conditions. The O8 supports multiple operating modes, including AP, Station, and WISP, and can be managed centrally using Tenda’s CPE Assistant software. Key Features: High-Speed Wireless: 5GHz 11ac with speeds up to 433Mbps. Long-Range Coverage: 23dBi directional antenna provides stable connections over 20km+. Auto-Bridge Technology: Enables automatic pairing between devices for easy setup. Weatherproof Design: IP65-rated enclosure protects against dust and water ingress. Lightning Protection: 6000V surge protection ensures device safety during storms. Flexible Power Options: Supports 24V 0.5A passive PoE power supply. Fast Ethernet Port: Includes one 10/100Mbps LAN port for wired connections. Centralized Management: Compatible with Tenda’s CPE Assistant software for network management. Technical Specifications: Wireless Standards: IEEE 802.11a/n/ac Frequency: 5GHz Antenna Gain: 23dBi directional vertical polarization Transmission Range: Over 20km Operating Modes: AP, Station, WISP Interfaces: 1× 10/100Mbps Ethernet port Power Supply: 24V 0.5A passive PoE Power Consumption: 7.5W Operating Temperature: -30°C to 60°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90% non-condensing Storage Humidity: 10% to 90% non-condensing Dimensions: 270mm × 94.86mm × 67.5mm Weight: Approximately 0.3kg
