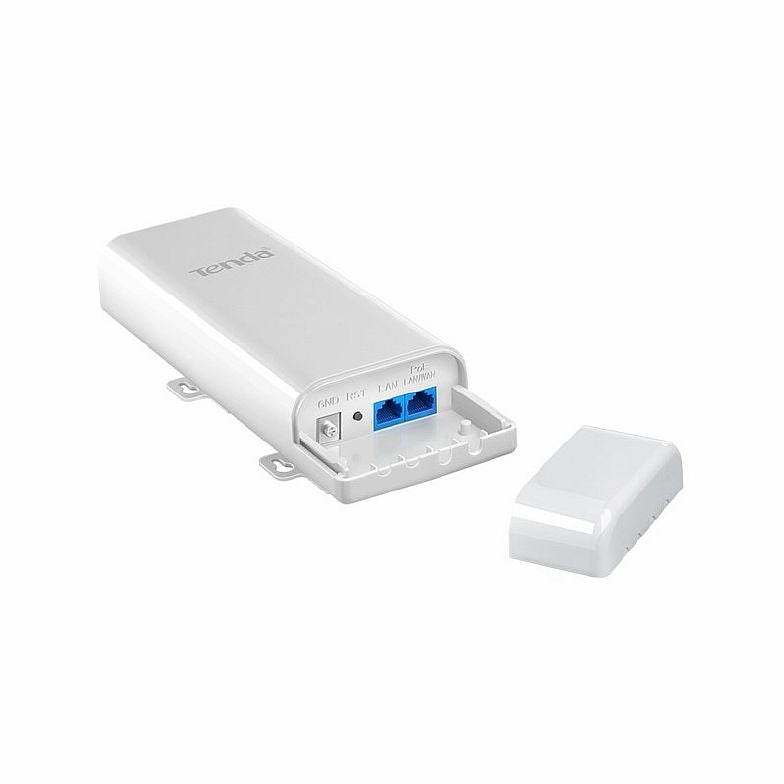

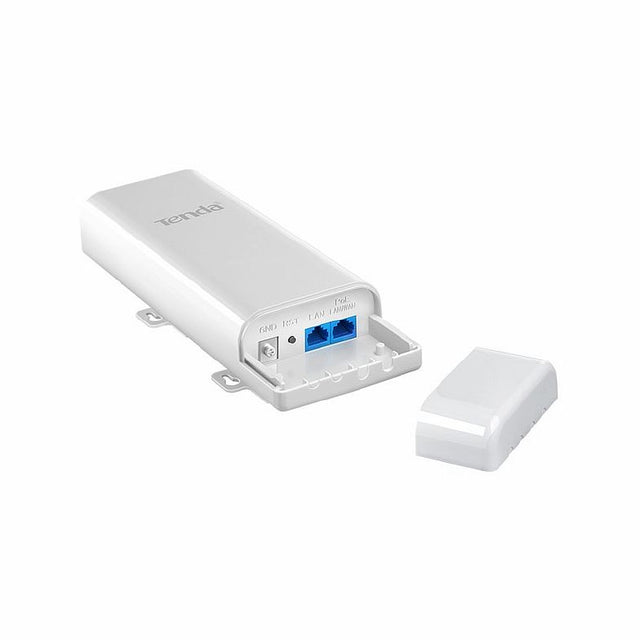

Tenda Outdoor Cpe, P-P 2.4GH 150Mbps 5KM

The Tenda O3 is a 2.4GHz 11n 150Mbps outdoor CPE designed for WISP CPE solutions and long-distance wireless network applications such as video surveillance and data transmission. Equipped with a 12dBi directional antenna and an independent power amplifier, it ensures stable signal transmission over distances exceeding 5km. The device features auto-bridging technology, allowing two O3 units to connect automatically when powered on and aligned, simplifying setup for point-to-point connections. Its IP64-rated waterproof enclosure and 6000V lightning protection ensure reliable operation in various weather conditions. The O3 supports multiple operating modes, including AP, Station, and WISP, and can be managed centrally using Tenda’s PC-CPE Assistant software. Key Features: High-Speed Wireless: 2.4GHz 11n with speeds up to 150Mbps. Long-Range Coverage: 12dBi directional antenna provides stable connections over 5km+. Auto-Bridge Technology: Enables automatic pairing between devices for easy setup. Weatherproof Design: IP64-rated enclosure protects against dust and water ingress. Lightning Protection: 6000V surge protection ensures device safety during storms. Flexible Power Options: Supports 12V 1A DC and passive PoE power supply. Fast Ethernet Ports: Includes two 10/100Mbps LAN ports for wired connections. Centralized Management: Compatible with Tenda’s PC-CPE Assistant software for network management. Technical Specifications: Wireless Standards: IEEE 802.11b/g/n Frequency: 2.4GHz Antenna Gain: 12dBi directional Transmission Range: Over 5km Operating Modes: AP, Station, WISP Interfaces: 2× 10/100Mbps Ethernet ports Power Supply: 12V 1A DC or passive PoE Power Consumption: 4.3W Operating Temperature: -30°C to 60°C Storage Temperature: -40°C to 70°C Operating Humidity: 10% to 90% non-condensing Storage Humidity: 10% to 90% non-condensing Dimensions: 270mm × 94.86mm × 67.5mm Weight: Approximately 0.3kg
