Samsung 13" Professional Display - Full HD, 16/7 Usage, 500NIT Brightness

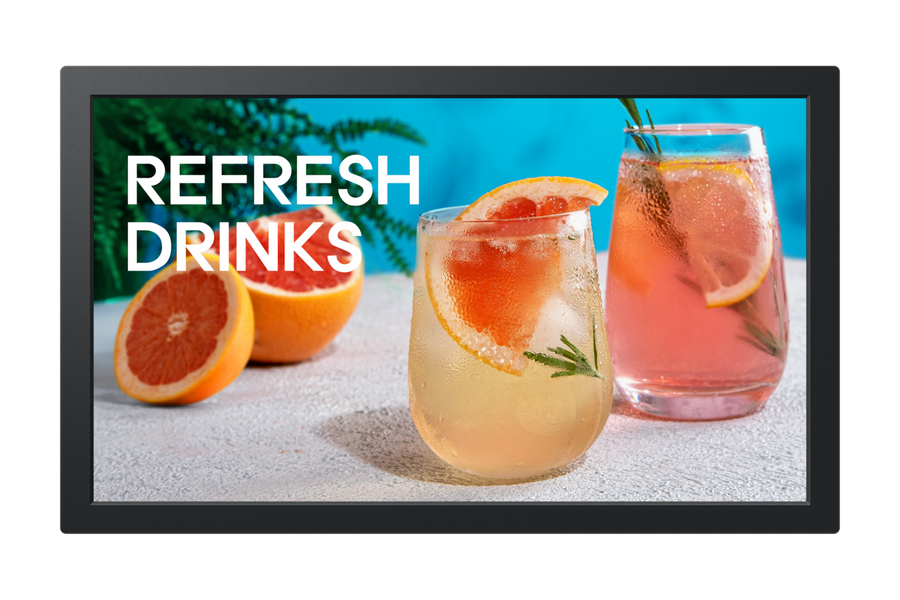

Samsung QB13C 13-inch Small Signage Display Panel

Effective display for compact places

The newly refined QB13C delivers a slim, space-efficient design with a 13-inch display that integrates seamlessly into diverse business settings. Its intuitive usability, reliable performance and easy management brings the essentials of business signage into compact spaces.

Features:

• Slimmer than ever at 19.9mm, it fits flawlessly in tight spaces
• Supports VXT & SmartThings Pro to empower your business
• Home UI upgrades for faster & more intuitive control

Smaller and slimmer, greater flexibility

Compact 13" Size & Slim Design

Slimmer than ever at 19.9mm, the 13-inch compact display fits flawlessly in tight spaces, perfect for maximizing visibility without hindering performance. Its smaller design packs the same reliable performance businesses demand, making it a smart choice for any space.

Intuitive accessibility meets effortless usability

Home UI

The QB13C features Home UI upgrades for faster, more intuitive control. Key tools such as Features, Sources, and settings are grouped for quicker access, while the Favorites folder brings you to frequently used tools in one click.

Faster, smoother wireless performance

Dual Wi-Fi (2.4GHz + 5GHz)

QB13C now supports dual-band Wi-Fi with both 2.4GHz and 5GHz frequencies, enabling faster network connections and higher data transmission speeds—especially in high-traffic areas.

Empower your business with smart control

SmartThings Pro

Samsung SmartThings now extends beyond the home with SmartThings Pro for business environments. Businesses, from small shops to large companies and hotels, can experience enhanced convenience, safety, and energy efficiency with SmartThings Pro connectivity.

Change the way to manage your display

Samsung VXT

Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.

Technical Specifications:

Display

Diagonal Size: 13"
Panel Type: ADS
Resolution: 1920 × 1080

Pixel Pitch (H × V): 0.153 × 0.153 mm
Brightness (Typical): 500 Nit
Contrast Ratio: 800:1
Dynamic Contrast Ratio: 10,000:1

Viewing Angle (Horizontal / Vertical): 170° / 170°
Response Time: 30 ms
Colour Gamut: 45%
Glass Haze: 25%

H-Scanning Frequency: 56–84.5 kHz
V-Scanning Frequency: 48–75 Hz
Maximum Pixel Frequency: 148.5 MHz

Operation Time Support: 16/7

Connectivity

Video Input

• 1 × HDMI (Version 1.4)

DisplayPort Input: Not Supported

USB

• 1 × USB Type-C (Data Transfer Only)

Audio Output: Stereo Mini Jack

RS232 Input: Yes
RJ45 Input: Yes

Wireless Connectivity

• Wi-Fi
• Bluetooth

IR Input: Not Supported
Audio Input: Not Supported

Power

Power Supply: AC 100–240 V, 50/60 Hz

Power Consumption

• On Mode: 35 W
• Sleep Mode: 0.5 W

Dimensions

Set Dimensions (W × H × D): 322 × 193.5 × 19.9 mm
Package Dimensions (W × H × D): 520 × 64 × 238 mm

Weight

Set Weight: 0.8 kg
Package Weight: 1.70 kg

Operating Conditions

Operating Temperature: 0°C to 40°C
Operating Humidity: 10%–80% (Non-Condensing)

Mechanical Specifications

VESA Mount: 100 × 100 mm
Bezel Width: 12.1 mm
Bezel Colour: Black
Frame Material: Non-Glossy

System on Chip (SoC)

Operating System: Tizen 7.0
Flash Memory: 8 GB

Optional Features

Optional Mount: WMN-2090SC

Included Stand

• Simple Stand (2 Units)

Certification and Compliance

EMC: Class B

Safety Standards

• 60950-1
• 62368-1
