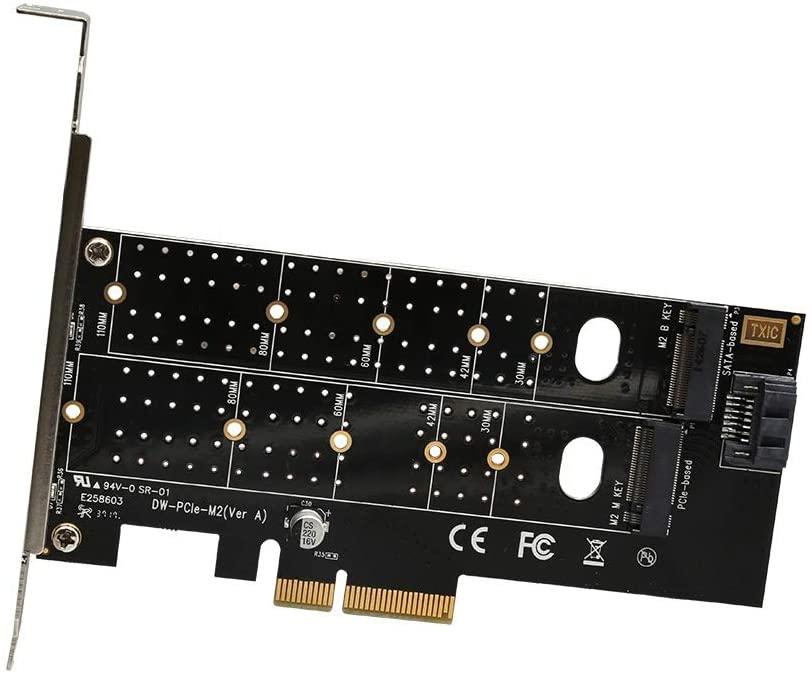

PCIe to M 2(M Key+b Key)
PCIE TO M 2(M KEY+B KEY) Full Bandwidth is available for each M.2 Drive simultaneously (up to approximately 40Gbps for M.2 PCIe Drive, and up to 6Gbps for M.2 SATA III Drive) Key Features 2-Port M.2 SSD (NGFF) Adapter Card - 1...
PCIE TO M 2(M KEY+B KEY)
Full Bandwidth is available for each M.2 Drive simultaneously (up to approximately 40Gbps for M.2 PCIe Drive, and up to 6Gbps for M.2 SATA III Drive)
Key Features
- 2-Port M.2 SSD (NGFF) Adapter Card - 1 x PCIe
- (NVMe) M.2, 1 x SATA III M.2 - PCIe 3.0
- This 2-Port M.2 SSD Adapter card is one of the only Cards that Supports both PCIe and SATA-based M.2 SSDs
- Increase The Storage Of Your Desktop PC
- This Card Provides a Platform for Adding up to Two M.2 SSDs To Virtually any Computer That has A PCIe Slot
- It Supports common M.2 SATA SSDs, as well as newer High-Performance M.2 PCIe Drives
- Optimize Your Computers Performance
- When you Couple this Card with a PCI Express based M.2 Drive
- You can give your Computers Performance a noticeable Speed Boost
- With Support for PCI Express 3.0 (up to approximately 40Gbps)
- You can Install the latest High-Performance M.2 PCIe SSDs inside your Computer
- With Faster Performance, you can get more work done in less time
- Supports A Wide Range Of Drives
- You can rest assured that your M.2 SSDs are Compatible with the Adapter Card
What's in the Box
- Included in Package
- 1 2-Port M.2 NGFF SSD Adapter Card
- 2 M.2 Mounting Standoffs
- 2 M.2 Mounting Screws
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer Part Number | TXB044 |
| Bus Type | PCI Express |
| Card Type | Standard & Low Profile |
| Port Style | Integrated on Card |
| Ports | 2 |
| ATAPI Support | Yes |
| Bootable | Yes |
| Connector Type(s) | 1 - PCI Express x4 Male |
| OS | Compatibility OS Independent, no additional Drivers or Software required |
| LED Indicators | 2 M.2 Drive Status/Activity (Green) |
| Humidity | 20-80% RH |
| Operating Temperature | 5C to 50C (41F to 122F) |
| Storage Temperature | -25C to 70C (-13F to 158F) |
| Product Height | 120 mm |
| Product Length | 140 mm |
| Product Weight | 51.2 g |
| Product Width | 20 mm |
