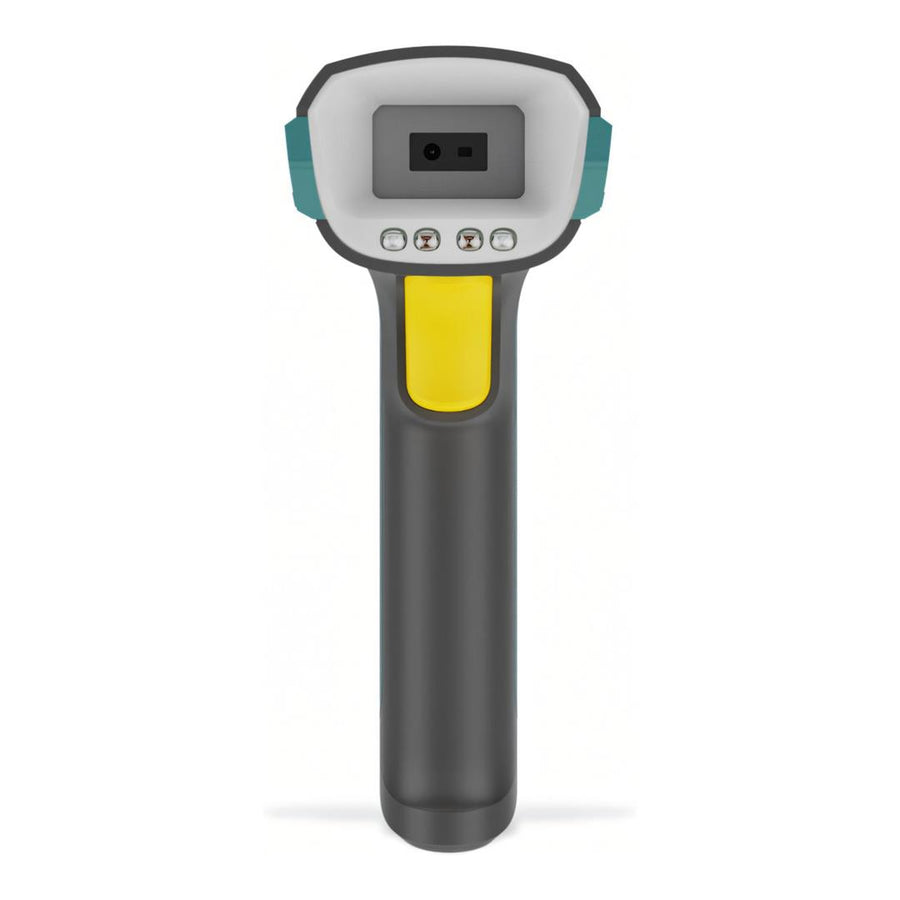

NVH220 Lophius II, Bluetooth wireless Handheld scanner. Industry. 2D. megapixel imager. AI-powered
NVH220 Lophius II, Bluetooth wireless Handheld scanner. Industry. 2D. megapixel imager. AI-powered The NVH220 Lophius II, Bluetooth wireless Handheld scanner. Industry. 2D. megapixel imager. AI-powered is in our Barcode Scanners range and available to order online from WeShopTech. Key details – Brand:...
NVH220 Lophius II, Bluetooth wireless Handheld scanner. Industry. 2D. megapixel imager. AI-powered
The NVH220 Lophius II, Bluetooth wireless Handheld scanner. Industry. 2D. megapixel imager. AI-powered is in our Barcode Scanners range and available to order online from WeShopTech. Key details – Brand: Newland.
Key Features
- High-resolution 1280 × 800 CMOS imager for 1D and 2D barcode capture.
- Bluetooth cordless operation with up to 150m line-of-sight communication distance.
- XD industrial interface support including RS-232, TCP/IP, Modbus TCP, EtherNet/IP, PROFINET and MELSEC/SLMP.
- IP64-rated scanner withstands repeated drops from up to 2.4m.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Newland |
| Model | NVH220B V2 |
| Manufacturer Part Number | NLS-NVH220B-V2-XD |
| Product Type | Cordless Industrial Barcode Scanner |
| Decode Capability | 1D / 2D / DPM |
| Image Sensor | 1280 × 800 CMOS |
| 1D Resolution | ≥1.25mil |
| 2D Resolution | ≥2.82mil |
| Minimum Symbol Contrast | 15% |
| 2D Symbologies | QR Code / PDF417 / Micro QR / Data Matrix / Aztec |
| DPM Support | Laser-Etched and Dot-Peened Direct Part Marks |
| OCR | Supported |
| Decoding Technology | AI-Powered Barcode Positioning / Intelligent Learning / Newland UIMG Algorithm |
| Direct Illumination | Red and Blue LEDs |
| Diffuse Illumination | White LEDs |
| Aiming | 650nm Crosshair Laser |
| Field of View | 33° Horizontal / 22° Vertical |
| Scan Angle | 360° Roll / ±50° Pitch / ±50° Skew |
| Typical EAN-13 13mil Depth of Field | 35–200mm |
| Typical Code 39 5mil Depth of Field | 15–150mm |
| Typical Code 39 20mil Depth of Field | 75–270mm |
| Typical Data Matrix 10mil Depth of Field | 10–140mm |
| Typical QR Code 20mil Depth of Field | 10–200mm |
| Wireless Connectivity | Bluetooth |
| Communication Distance | Up to 150m Line of Sight |
