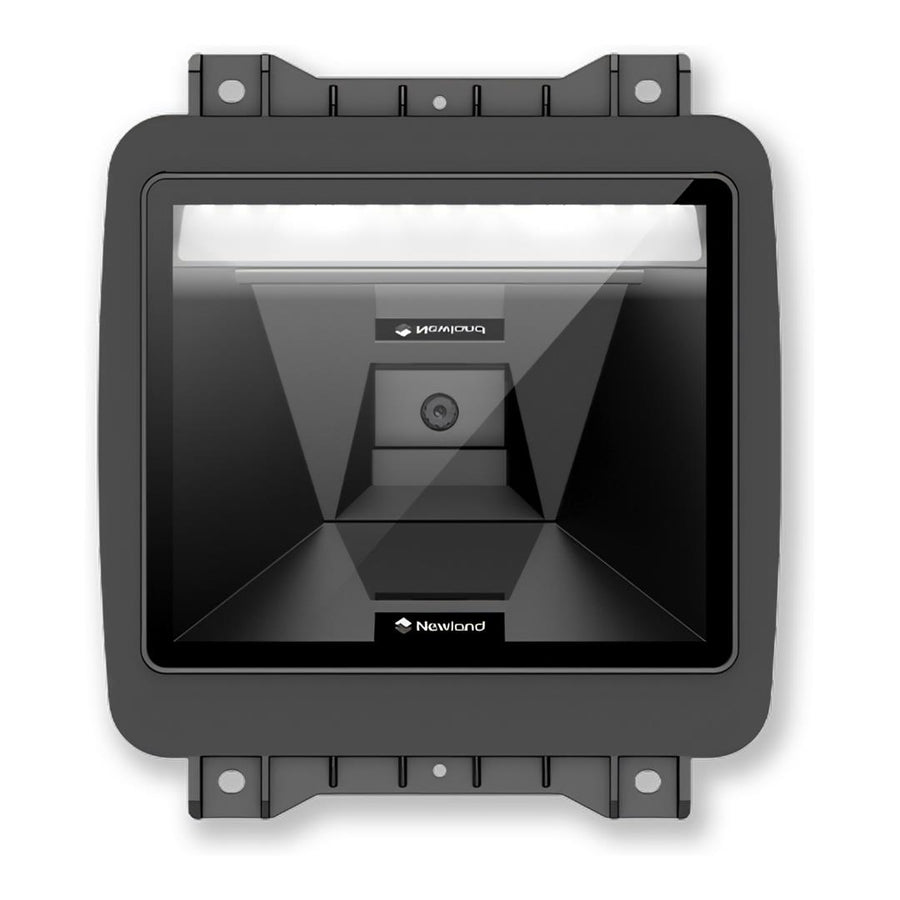

Newland-FM80 Salmon 2D CMOS Mega Pixel Large Window Fixed Mount Scanner with 3 mtr USB cable
Newland-FM80 Salmon 2D CMOS Mega Pixel Large Window Fixed Mount Scanner with 3 mtr USB cable The Newland-FM80 Salmon 2D CMOS Mega Pixel Large Window Fixed Mount Scanner with 3 mtr USB cable is in our Barcode Scanners range and available to...
Newland-FM80 Salmon 2D CMOS Mega Pixel Large Window Fixed Mount Scanner with 3 mtr USB cable
The Newland-FM80 Salmon 2D CMOS Mega Pixel Large Window Fixed Mount Scanner with 3 mtr USB cable is in our Barcode Scanners range and available to order online from WeShopTech. Key details – Brand: Newland.
Key Features
- High motion tolerance of up to 3.5m/s for quickly presented items.
- Red LED illumination with a wide 42.4° horizontal field of view.
- USB and RS-232 interface support for flexible system integration.
- IP52-rated enclosure with robust ESD protection.
- Integrate fast, intuitive 1D and 2D barcode scanning into kiosks, POS systems and other fixed applications with the Newland FM80 Salmon.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Newland |
| Product | FM80 Salmon |
| Manufacturer Part Number | NLS-FM8080-20 |
| Product Type | Fixed-Mount Barcode Scanner |
| Decode Capability | 1D / 2D |
| Image Sensor | 1280 × 1088 CMOS |
| Illumination | Red LED, 614–624nm |
| 1D Resolution | ≥3mil |
| 2D Symbologies | PDF417 / QR Code / Data Matrix / Aztec |
| Typical Depth of Field | 0–140mm at 13mil / 50–90mm at 5mil |
| Field of View | 42.4° Horizontal / 36° Vertical |
| Scan Angle | 360° Roll / ±55° Pitch / ±50° Skew |
| Minimum Symbol Contrast | 15% at Code 128 10mil |
| Scan Mode | Advanced Sense Mode |
| Motion Tolerance | Up to 3.5m/s |
| Interfaces | USB / RS-232 |
| Notifications | Beep / LED Indicator |
| Operating Voltage | 5V DC ±5% |
| Operating Current | 0.4A Typical / 0.5A Maximum |
| Operating Power Consumption | 2W Typical / 2.5W Maximum |
| Standby Power Consumption | 1.25W |
| IP Rating | IP52 |
| ESD Protection | ±15kV Air / ±8kV Direct Contact |
| Ambient Light | 0–100,000 lux |
| Operating Temperature | -20°C to 50°C |
