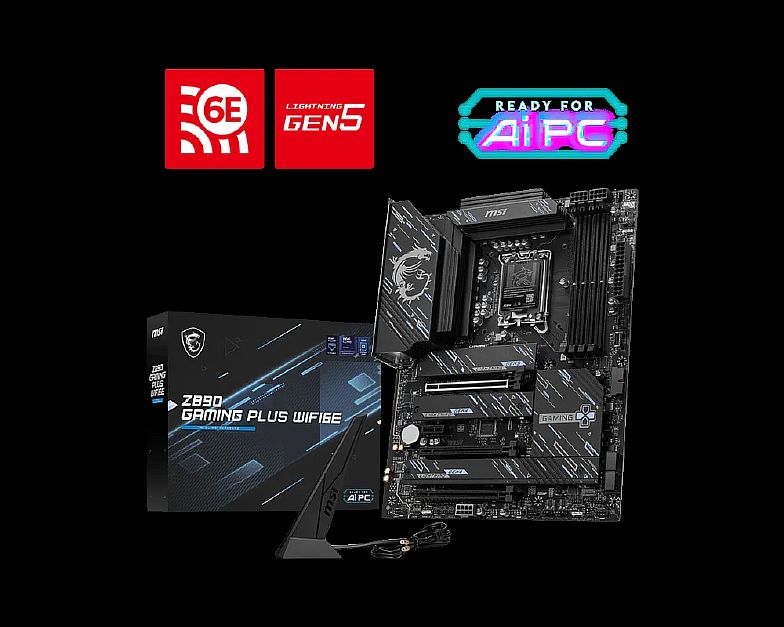

MSI Mag Z890 Gaming Plus WIFI6E

MSI Z890 Gaming PLUS Wi-Fi6E Intel LGA 1851 ATX Motherboard

The MSI is a high-performance ATX motherboard designed for gaming, AI computing and enthusiast desktop systems powered by Intel Core Ultra Processors (Series 2). Built around the Intel Z890 chipset and LGA 1851 socket, it combines DDR5 memory support, PCIe 5.0 graphics and storage connectivity, 5 Gigabit Ethernet and Wi-Fi 6E. A robust 14+1+1+1 power design, extensive cooling solutions and MSI EZ DIY features provide a strong foundation for powerful next-generation desktop builds.

Key Features

• Intel Z890 chipset with LGA 1851 processor socket.
• Supports Intel Core Ultra Processors (Series 2).
• 4 × DDR5 UDIMM slots supporting up to 256GB of memory.
• DDR5 speeds up to 9200+ MT/s with overclocking, configuration dependent.
• PCIe 5.0 x16 primary expansion slot with Steel Armor.
• 1 × PCIe 5.0 x4 M.2 and 3 × PCIe 4.0 x4 M.2 slots.
• Intel Killer E5000 5Gbps Ethernet networking.
• Wi-Fi 6E with Bluetooth 5.3.
• 14+1+1+1 Duet Rail Power System with 55A DrMOS.
• EZ M.2 Shield Frozr II, EZ PCIe Clip II and Flash BIOS Button.

Intel Z890 and LGA 1851 Platform

The combines Intel's Z890 chipset with the LGA 1851 processor socket for Intel Core Ultra Processors (Series 2). The platform is designed for modern gaming, productivity and AI-focused desktop systems.

High-Speed DDR5 Memory

Four DDR5 UDIMM slots provide a maximum memory capacity of 256GB. The motherboard supports standard DDR5 as well as CUDIMM memory, Intel XMP 3.0 and memory overclocking, with supported speeds reaching up to 9200+ MT/s in suitable single-DIMM configurations.

PCIe 5.0 Graphics and Storage

The CPU-connected primary expansion slot provides PCIe 5.0 x16 connectivity for high-performance graphics cards. Storage is equally well equipped, with one CPU-connected PCIe 5.0 x4 M.2 slot delivering up to 128Gbps and three additional PCIe 4.0 x4 M.2 interfaces for high-speed NVMe SSDs.

5GbE and Wi-Fi 6E Networking

An Intel Killer E5000 controller provides wired Ethernet speeds up to 5Gbps, while integrated Wi-Fi 6E supports 2.4GHz, 5GHz and 6GHz wireless bands where permitted by regional regulations. Bluetooth 5.3 provides additional wireless connectivity for compatible peripherals.

Enhanced Power and Thermal Design

The motherboard features a 14+1+1+1 Duet Rail Power System with 55A DrMOS, dual 8-pin CPU power connectors and Core Boost technology. An Extended Heatsink, 7W/mK MOSFET thermal pads, additional choke thermal pads and EZ M.2 Shield Frozr II help manage temperatures during sustained high-performance operation.

EZ DIY Features

MSI incorporates a range of installation-friendly features including a pre-installed I/O shield, EZ PCIe Clip II, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna. A Flash BIOS Button also enables BIOS flashing with only a power supply connected, without requiring the CPU or memory to be installed.

Technical Specifications

What’s in the Box:

• MSI Motherboard
• EZ Wi-Fi Antenna
• Standard accessories and documentation supplied by MSI for the applicable regional package

The MSI provides a modern foundation for Intel Core Ultra Series 2 desktop systems, combining DDR5 memory, PCIe 5.0 graphics and storage, 5GbE networking and Wi-Fi 6E. Its robust 14+1+1+1 power system, comprehensive cooling and MSI EZ DIY features make it well suited to high-performance gaming, AI computing and enthusiast desktop builds.
