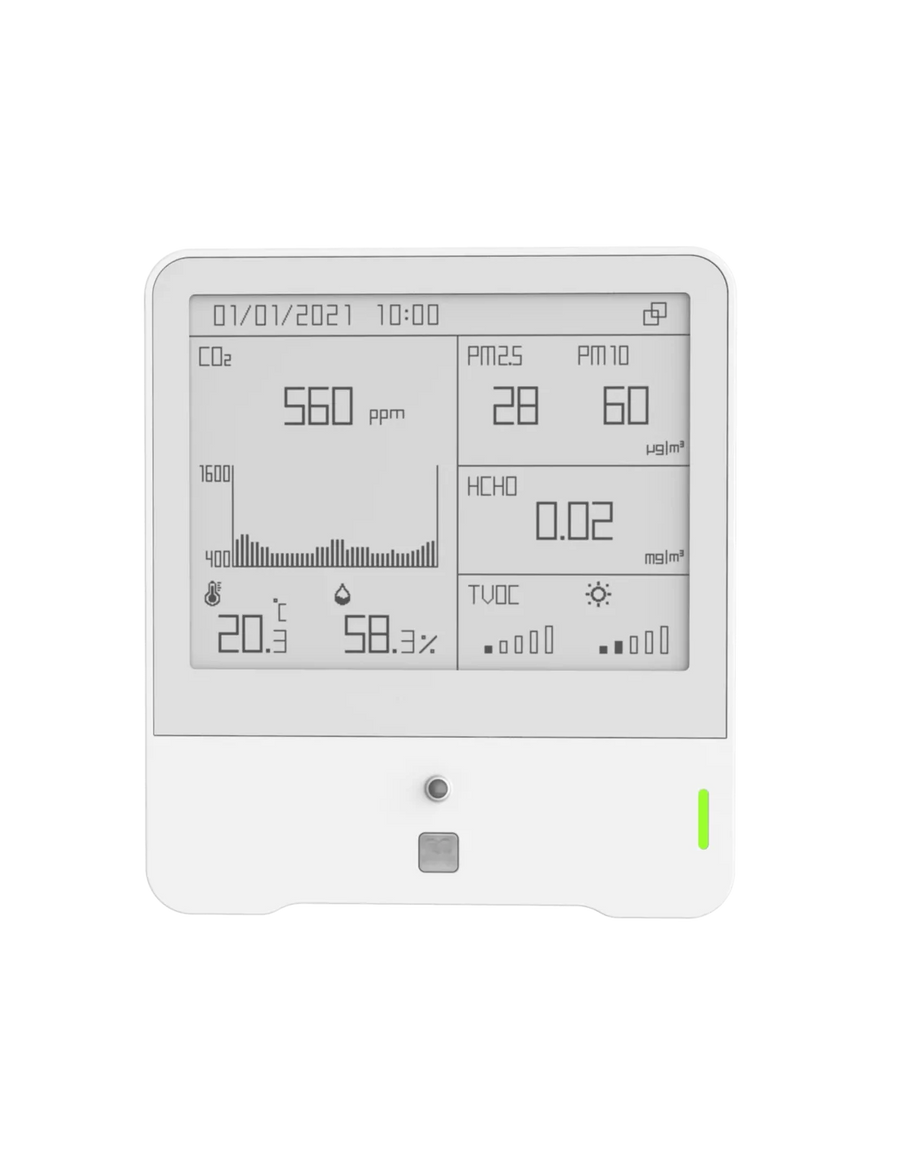

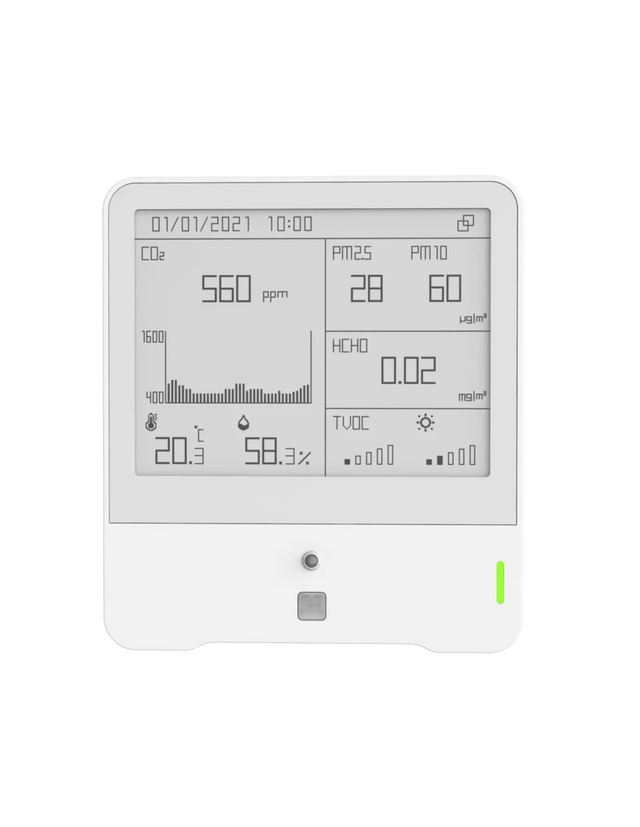

Milesight Indoor Ambience Monitor - Temp, Humidity, PIR, Light, TVOC, CO2, Barometric
Milesight Indoor Ambience Monitor - Temp, Humidity, PIR, Light, TVOC, CO2, Barometric AM307/AM308/AM319 is a comprehensive IAQ sensor for detecting CO2 concentration, temperature, humidity, light, HCHO/O3 level, TVOC, barometric pressure, PM2.5, PM10 and motion. Key Features Milesight AM307 Room Comfort Sensor Improving...
Milesight Indoor Ambience Monitor - Temp, Humidity, PIR, Light, TVOC, CO2, Barometric
AM307/AM308/AM319 is a comprehensive IAQ sensor for detecting CO2 concentration, temperature, humidity, light, HCHO/O3 level, TVOC, barometric pressure, PM2.5, PM10 and motion.
Key Features
- Milesight AM307 Room Comfort Sensor
- Improving Energy Efficiency and Indoor Comfort
- 9 Sensors in 1
- Optional 4.2 Inch E-ink Screen
- Traffic Light Indicator & Buzzer
- Anti-theft Protection
- Vivid Emoticon Indication (AM307)
- Battery Life up to 3 Years (AM307)
- Milesight 47,000 LoRaWAN® IAQ Sensors in Canadian Schools
- 9 Sensors in 1
- Integrated 9 types of sensor to measure various ambience conditions
- Higher Accuracy with
- Better Insulation Design
- Placement for temperature and humidity sensors is designed to isolate the heat generated when the chip is operating.
With province-wide LoRaWAN® IAQ solution deployment, students and staff in Quebec's public schools are now in a healthier learning environment with more helpful insights. Check how Milesight has made it happen!
At Milesight, we help you and your people to live in a safer and healthier facilities. Towards that end, real-time data about air quality is essential. And that starts with our one-stop solution for indoor air quality (IAQ)
Data can be stored in the device and cannot be manually deleted, further securing the traceability of the reported information.
With support for data retransmission,the device guarantees that the web server gets all the data even if the network is down occasionally.
Battery Life (10 min interval, 25°C): Around 3.9 Years (SF7, EU868 & US915), Around 3.1 Years (SF10, EU868), Around 2 Years (SF10, US915)
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Monitors |
| Penetrating Signals | data transmission range up to 2 km in urban areas and |
| High Compatibility | compliant with standard LoRaWAN® gateways and network servers |
| Wireless Transmission Technology | LoRaWAN® |
| Antenna | Internal Antenna |
| Frequency | CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Work Mode | OTAA/ABP Class A |
| Temperature Operating Principle | Digital CMOSens® technology (MEMS) |
| Temperature Range | -20°C ~ 60°C |
| Temperature Accuracy | Typ. ±0.3°C (-20°C ~ 0°C), ±0.2°C (0°C ~ 60°C) |
| Temperature Resolution | 0.1°C |
| Humidity Operating Principle | Digital CMOSens® technology (MEMS) |
| Humidity Range | 0% ~ 100% RH |
| Humidity Accuracy | Typ. ±2% RH (25°C) |
| Humidity Resolution | 0.5% RH |
| Motion Operating Principle | Passive infrared (PIR) |
| Motion Detection Range | 80° Horizontal, 55° Vertical, 5 m |
| Motion Status | Vacant/Occupied |
| Light Operating Principle | Photodiode |
| Light Range | 0-60000 Lux (Determine as 6 levels, 0-5) |
| TVOC Operating Principle | MOX (MEMS) |
| TVOC Range | 1.00 ~ 5.00 (IAQ Rating) |
| TVOC Accuracy | ±1 |
| Barometric Pressure Operating Principle | Piezoresistive absolute pressure sensor (MEMS) |
| Barometric Pressure Range | 260 - 1260 hPa |
| Barometric Pressure Accuracy | ±0.5 hPa |
| Barometric Pressure Resolution | 0.1 hPa |
| Carbon Dioxide (CO2) Operating Principle | Nondispersive Infrared (NDIR) |
| CO2 Range | 400 ~ 5000 ppm |
| CO2 Accuracy | ±(30 ppm + 3% of reading) (0°C ~ 50°C, 0% to 85% RH) |
| CO2 Resolution | 1 ppm |
| PM2.5 & PM10 Operating Principle | — |
| PM2.5 & PM10 Range | — |
| PM2.5 & PM10 Accuracy | — |
| PM2.5 & PM10 Resolution | — |
| Display | AM307 & AM308: 4.2-inch Black & White E-Ink Screen; AM308L: Not Support |
| Button | 1 × Power Button + 1 × Reset Button |
| LED & Buzzer | 1 × Traffic Light Status Indicator + 1 × Buzzer |
| USB | 1 × Type-C Port for Power Supply, Configuration or Console |
