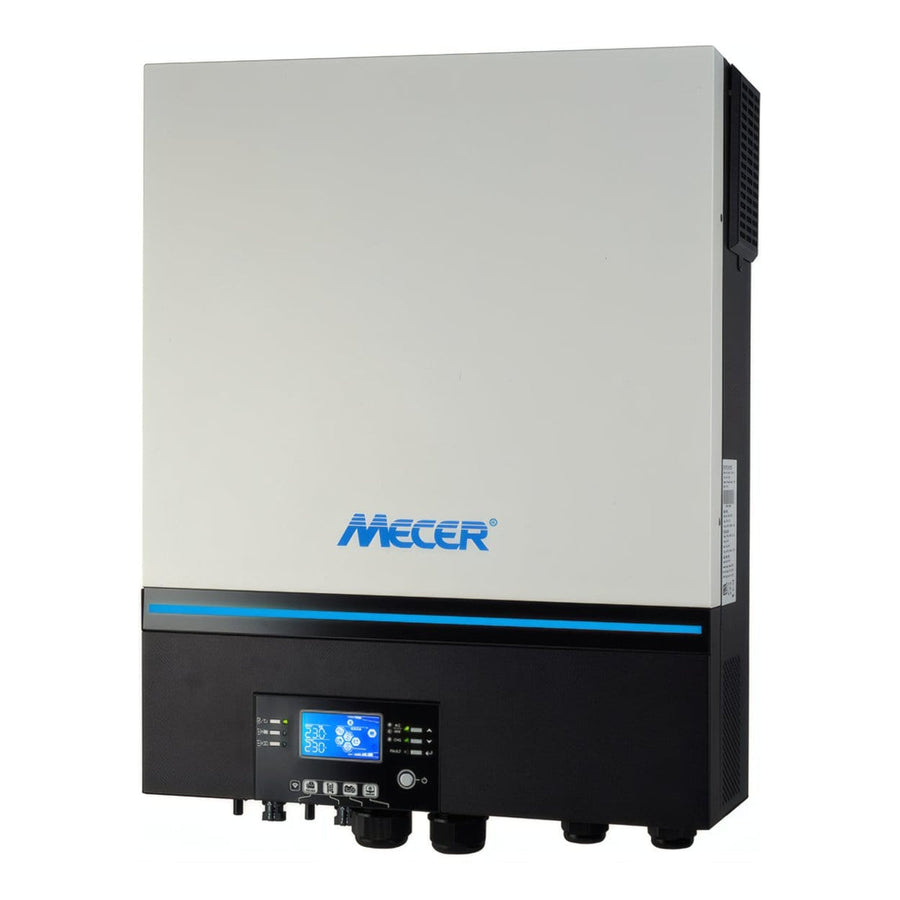

MECER Off Grid 8kVA 8kW 8kW MPPT 48V
MECER Off Grid 8kVA 8kW 8kW MPPT 48V The MECER Off Grid 8kVA 8kW 8kW MPPT 48V is in our Power Adapters & Inverters range and available to order online from WeShopTech. Key details – Rated Power: 8000VA/8000W; Parallel Capability: Yes, 6...
MECER Off Grid 8kVA 8kW 8kW MPPT 48V
The MECER Off Grid 8kVA 8kW 8kW MPPT 48V is in our Power Adapters & Inverters range and available to order online from WeShopTech. Key details – Rated Power: 8000VA/8000W; Parallel Capability: Yes, 6 units. Parallel card included.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SOL-I-AX-8M |
| Rated Power | 8000VA/8000W |
| Parallel Capability | Yes, 6 units. Parallel card included |
| Voltage | 230 VAC |
| Voltage Range | 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| AC Voltage Regulation (Line & Batt Mode) | 230VAC ± 5% |
| Surge Power | 16 000VA |
| Efficiency (Peak) | 90% ~ 93% |
| Transfer Time | 15 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| No Load Power Consumption | <70W |
| Battery Voltage | 48V DC |
| Floating Charge Voltage | 54V DC |
| Overcharge Protection | 66V DC |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W |
| Number of MPPTs | 2 x 4000W |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum Solar Charge Current | 120 A |
| Maximum AC Charge Current | 120 A |
| Maximum Charge Current | 120 A |
| Dimension, D x W x H (mm) | 147.4 x 432.5 x 553.6. |
| Net Weight (kgs) | 18.4 kg |
| Communication Interface | RS232, USB, Dry Contact, Wi-Fi, RS485 |
