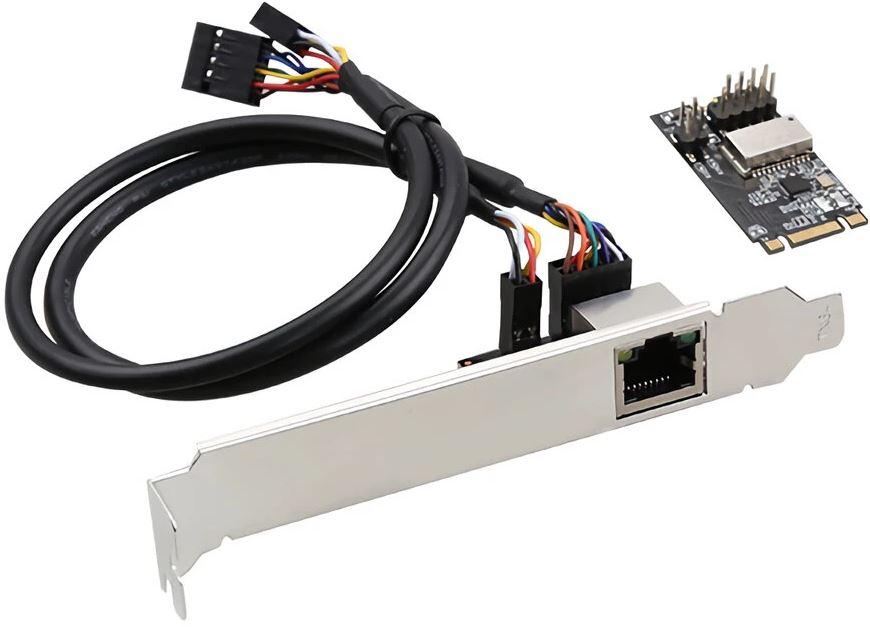

M.2 1G LAN CARD FOR REALTEK 8111H
The TXA082 M.2 Gigabit Ethernet Adapter is a high performance 10/100/100 BASE-T Ethernet LAN Controller. It is suitable for converting the M.2 slot at the PC end into Gigabit Ethernet RJ45 Interface. Supporting Features such as NDIS5 checksum and large send offload for lower CPU Utilization. Jumbo frames and VLAN Tagging, this M.2 Gigabit Adapter is ready to handle a wide variety of scenarios.
Key Features
- M.2 2242 Key B/M
- A single 10/100/1000Mbps compatible RJ45 Ethernet Port
- 2 status LEDs for link and activity
- Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
- Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
- 9KB Jumbo Frame Support
- Microsoft NDIS5 Checksum Offload (IPV4, TCP, UDP) and Large Send Offload Support
- Full and half Duplex Support
- Crossover Detection & Auto-Correction (Auto MDI/MDI-X)
- IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow
- Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding
- Jumbo Frame Support: 9K max.
- Windows Server 2008 R2, 2012, 2016, 2019,
- 2022; Linux 2.6.31 to 5.x
Applications
- Add a Gigabit networking port to a PC with a M.2 slot
- Replacement for a failed built-in Gigabit Ethernet Port
Technical Specifications
| Specification | Details |
|---|---|
| Form Factor | M.2 2242 B-M |
| Card Type | Embedded |
| Chipset ID | Realtek RTL8111H |
| Industry Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab,1000BASE-T |
| Interface RJ45 | (Gigabit Ethernet) |
| Max Power Consumption | 0.6W (3.3V@170mA) |
| Ports | 1 |
| MDIX | Yes |
| Auto-Negotiation | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Flow Control | Full duplex flow control |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 2 Gbps (Ethernet; Full-Duplex) |
| Connector Type(s) | 1 M.2 B+M Key |
| External Ports | 1 - RJ-45 Female |
| OS Compatibility | Windows 7, 8.x, 10, 11 |
