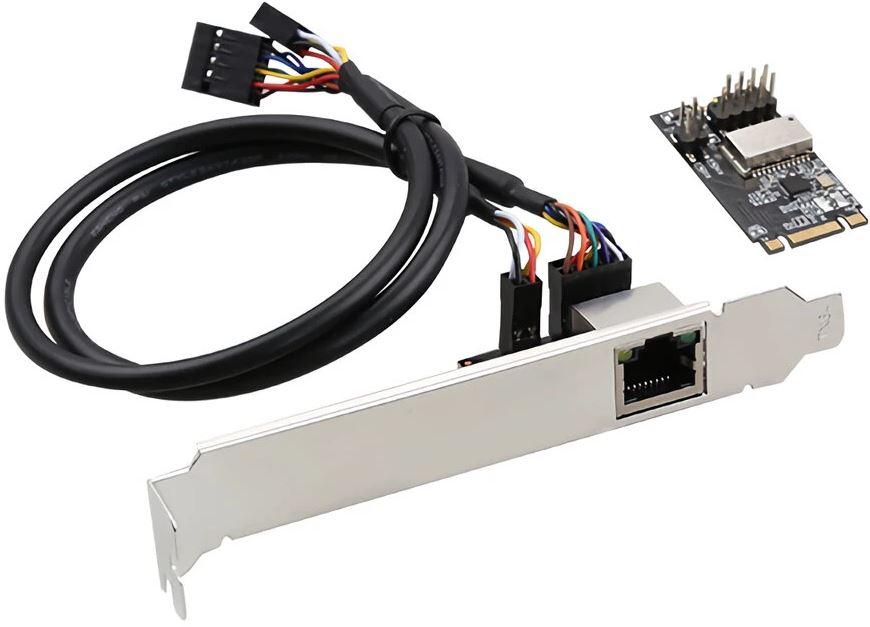

M.2 1G LAN Card for Realtek 8111H

M.2 1G LAN CARD FOR REALTEK 8111H - TXA082

The TXA082 M.2 Gigabit Ethernet Adapter is a high performance 10/100/100 BASE-T Ethernet LAN Controller

It is suitable for converting the M.2 slot at the PC end into Gigabit Ethernet RJ45 Interface

Supporting Features such as NDIS5 checksum and large send offload for lower CPU Utilization

Jumbo frames and VLAN Tagging, this M.2 Gigabit Adapter is ready to handle a wide variety of scenarios

Applications

Add a Gigabit networking port to a PC with a M.2 slot

Replacement for a failed built-in Gigabit Ethernet Port

Features

M.2 2242 Key B/M

A single 10/100/1000Mbps compatible RJ45 Ethernet Port

2 status LEDs for link and activity

Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards

Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control

9KB Jumbo Frame Support

Microsoft NDIS5 Checksum Offload (IPV4, TCP, UDP) and Large Send Offload Support

Full and half Duplex Support

Crossover Detection & Auto-Correction (Auto MDI/MDI-X)

Hardware

Form Factor: M.2 2242 B-M

Card Type: Embedded

Chipset ID:  Realtek – RTL8111H

Industry Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab,1000BASE-T

IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow

Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding

Interface RJ45: (Gigabit Ethernet)

Max Power Consumption: 0.6W (3.3V@170mA)

Ports: 1

Performance Auto

MDIX:  Yes

Auto-Negotiation: Yes

Compatible Networks: 10/100/1000 Mbps

Flow Control: Full duplex flow control

Full Duplex Support : Yes

Jumbo Frame Support: 9K max.

Maximum Data Transfer Rate: 2 Gbps (Ethernet; Full-Duplex)

Connector(s)

Connector Type(s): 1 – M.2 B+M Key

External Ports:  1 - RJ-45 Female

Software

OS Compatibility: Windows 7, 8.x, 10, 11

Windows Server 2008 R2, 2012, 2016, 2019,

2022; Linux 2.6.31 to 5.x
