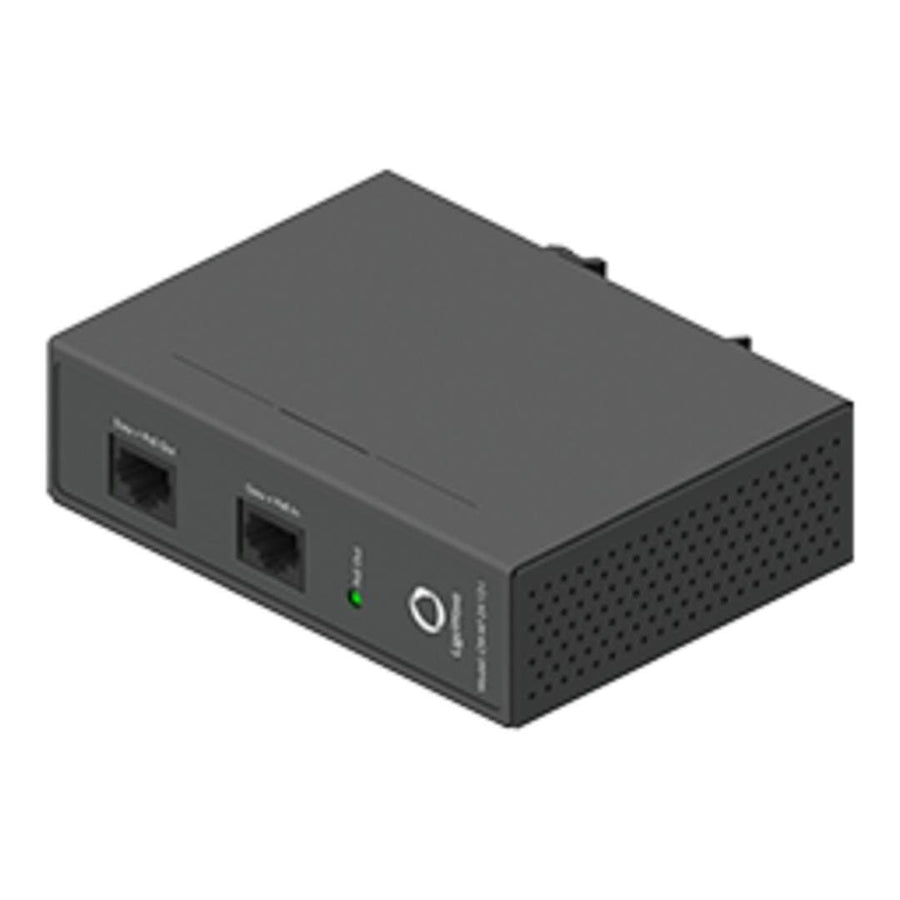

LigoWave RapidFire Powering Kit
LigoWave RapidFire Powering Kit The LigoWave RapidFire Powering Kit is in our Networking Accessories range and available to order online from WeShopTech. Key details – Brand: LigoWave; SKU / MPN: POE-MPPTP-RF. Key Features Includes a 48V DC PoE inserter and an AC-to-48V...
LigoWave RapidFire Powering Kit
The LigoWave RapidFire Powering Kit is in our Networking Accessories range and available to order online from WeShopTech. Key details – Brand: LigoWave; SKU / MPN: POE-MPPTP-RF.
Key Features
- Includes a 48V DC PoE inserter and an AC-to-48V DC adapter.
- Supports 10/100/1000Mbps Ethernet data rates.
- Provides an IEEE 802.3af/at-compliant PoE output.
- Supports a total UTP or FTP cable length of up to 100 metres.
- PoE inserter operates in temperatures from −40°C to +65°C.
- LigoPoE 802.3af/at Inserter
- LigoPTP AC-to-48V DC Adapter
Technical Specifications
| Specification | Details |
|---|---|
| Brand | LigoWave |
| Product | LigoPTP RapidFire Powering Kit |
| SKU / MPN | POE-MPPTP-RF |
| Product Type | PoE powering kit |
| Compatibility | LigoPTP RapidFire outdoor series |
| Kit Components | LigoPoE 802.3af/at inserter and LigoPTP AC-to-48V DC adapter |
| DC Input Voltage | 44–57V DC |
| PoE Output | IEEE 802.3af/at compliant |
| Maximum Output Power | Up to 28W |
| Power Output Pin Assignment | RJ45 pins 1, 2, 4 and 5 (+); pins 3, 6, 7 and 8 (−) |
| Data Rate | 10/100/1000Mbps |
| Data Input | RJ45 |
| Data and Power Output | RJ45 |
| Surge Protection | 2kV line-to-line; 6kV line-to-ground on the output port |
| Maximum Cable Length | 100m total from the switch to the device using UTP or FTP cable |
| Operating Temperature | −40°C to +65°C |
| Dimensions | 117 × 87 × 34mm |
| Weight | 270g |
| Input Voltage | 100–240V AC, 50/60Hz |
| Output Voltage | 48V DC ±5% |
| Output Power | 24W |
| Protection | Short-circuit, overvoltage and overcurrent protection |
| Input Connector | IEC320 C6 |
| Output Connector | Terminal block connector |
