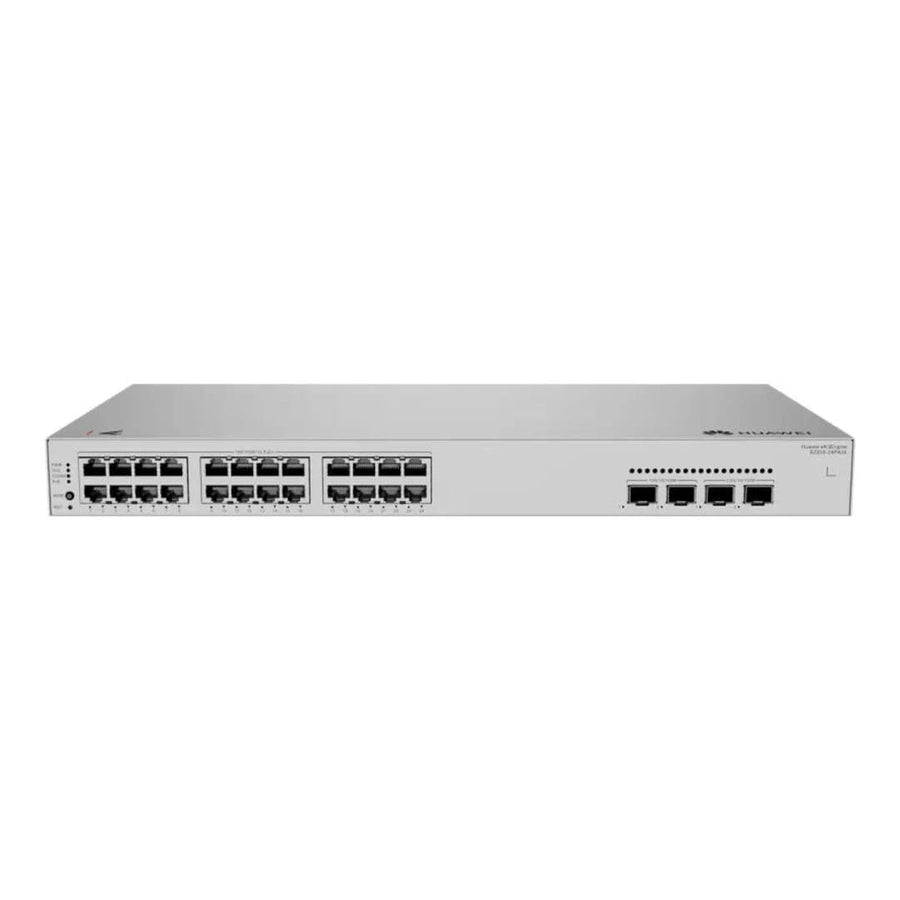

Huawei S220S-24P4JX 24-Port 400W PoE Switch
Huawei S220S-24P4JX 24-Port 400W PoE Switch Huawei S220S-24P4JX is a manageable L2 switch equipped with 24x 1Gbit Ethernet with PoE+ support, 2x 2.5G SFP and 2x SFP+ ports. The total PoE budget is 400W, ensuring reliable power for 24 devices under the...
Huawei S220S-24P4JX 24-Port 400W PoE Switch
Huawei S220S-24P4JX is a manageable L2 switch equipped with 24x 1Gbit Ethernet with PoE+ support, 2x 2.5G SFP and 2x SFP+ ports. The total PoE budget is 400W, ensuring reliable power for 24 devices under the 802.3af standard or 13 devices under the 802.3at standard with full power consumption. It supports all common L2 features and extensive management options, including management via the Huawei eKit App, enabling cloud management. With the Huawei Online Upgrade Platform (HOUP) service, the switch provides one-click automatic updates.
Key Features
- Huawei eKitEngine S220S-24P4JX 24-port L2 Managed Network Switch
- Operating temperature [°C]: -5 up to 40
The Huawei eKitEngine S220S series switches are L2 GE/10GE designed for small and medium-sized businesses (SMBs). Advanced features, high reliability, extensive device management options, rack mounting, built-in 230V AC power supply, and fanless design enable use in various installation scenarios.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Networking |
| LAN speed | (24) 10/100/1000Mbps |
| Optical interfaces | (2) 1G/2.5G + (2) 1/10G |
| Power type | Mains power (230V) |
| PoE-Out standards | 802.3af, 802.3at |
| PoE Out ports | 24 |
| PoE budget | 400W |
| Max. power consumption | 482W |
| Power via connector/terminal | 230V AC |
| Design | Rackmount |
| Fans | Yes |
| Chassis design | Metal |
| Buttons | Reset |
| Width | 442 mm |
| Height | 44 mm |
| Depth | 220 mm |
| Switchning capacity | 98 Gbps |
| Packet forwarding rate | 73 Mpps |
| Web management | Yes |
| Management | Web management, SSH, Telnet, eKit cloud / eKit app |
| Features | VLAN, QoS, DHCP snooping |
