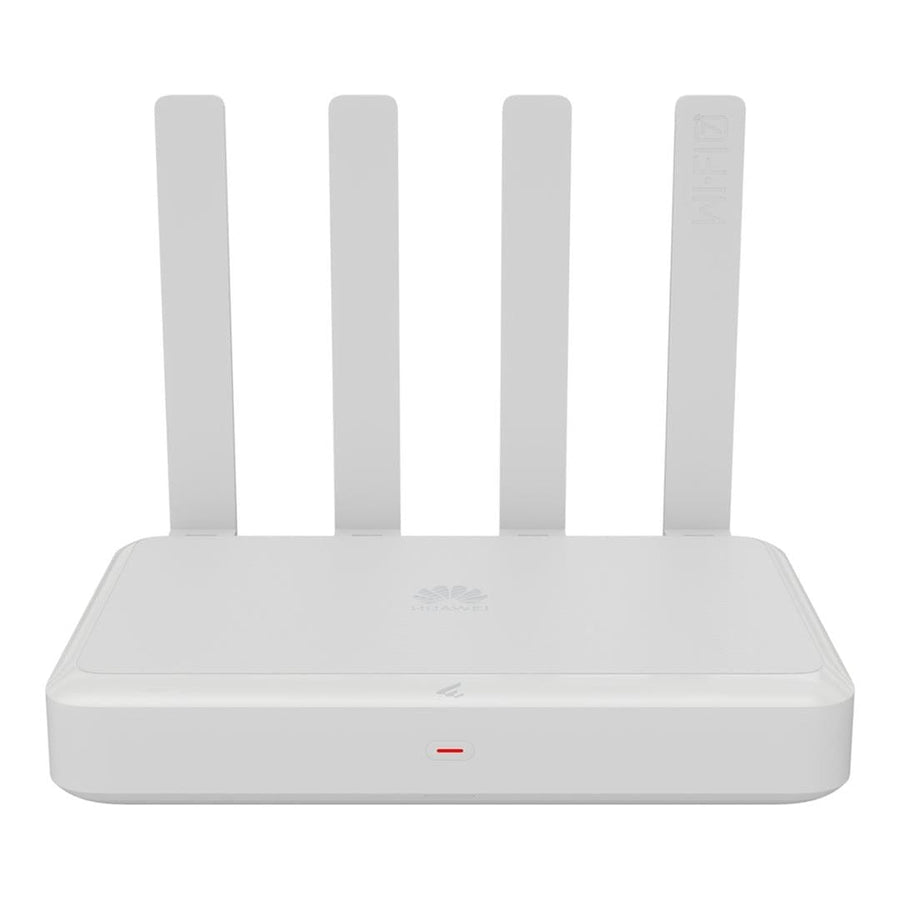

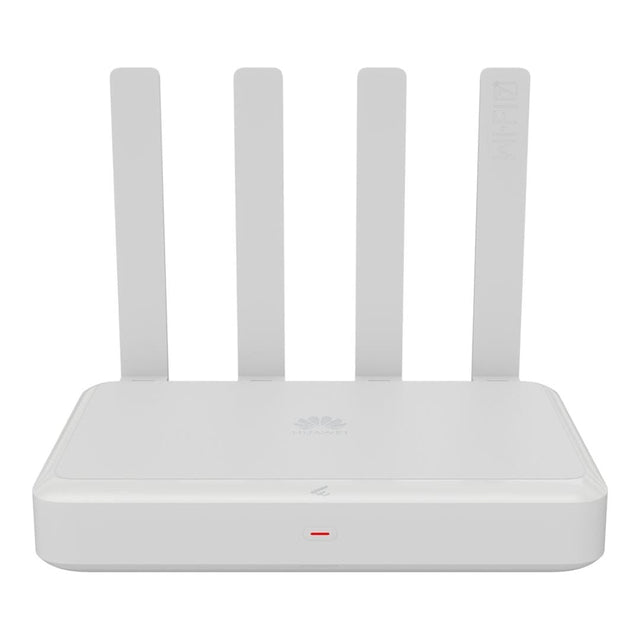

Huawei AR180 EKIT 4GE 2.5GE Router

Huawei eKitEngine AR180 5-port Wireless Router 50010839

Huawei AR180 is a high-performance dual-band Wi-Fi 7 router, operating simultaneously on two bands (2.4GHz and 5GHz) to achieve a maximum data transfer rate of up to 3.57Gbps. The router is equipped with (1) 2.5G port, (4) Gbit ports and supports management via a local web interface as well as cloud management (eKit SNC / eKit mobile app). It features modern technologies such as MU-MIMO, 4096-QAM and MLO. The device's maximum power consumption is 13W.

• Wi-Fi 7 (802.11be) - extremely fast and stable connectivity
• (1) 2.5G LAN/WAN port, (3) Gbit LAN/WAN ports and (1) Gbit LAN Turbo port (preferential forwarding of Turbo port traffic)
• Total throughput up to 3.57Gbps - 0.69Gbps on 2.4GHz (2×2) and 2.88Gbps on 5GHz (2×2)
• Huawei Online Upgrade Platform (HOUP) - automatic one-click updates
• Easy management via the eKit SNC / eKit mobile app
• Smart Mesh technology allows up to 8 devices to form a unified mesh network, intelligently switching connections for stable operation and minimizing signal interruptions
• Automatic loop prevention, VLAN, QoS and IPSec VPN

Specifications:

Maximum modulation: 4096 QAM

Wireless frequency: 2.4 + 5 GHz (dual band)

WiFi standards: 802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ac - wave2, 802.11ax, 802.11be

MU-MIMO: Yes

Transmission speed - 5GHz [Mb/s]: 2880

Transmission speed - 2.4GHz [Mb/s]: 688

Tx power 2.4GHz [dBm]: 23

Tx power 5GHz [dBm]: 23

2.4GHz MIMO: 2 x 2

5GHz MIMO: 2 x 2

Type of antenna: Fixed

Fixed antennas: 4

Roaming: Yes

Antenna gain [dBi]: 4

LAN speed: (1) 10/100/1000/2500Mbps LAN/WAN + (3) 10/100/1000Mbps LAN/WAN + (1) 10/100/1000Mbps

Gigabit LAN: Yes

Max. power consumption [W]: 13

Power via connector/terminal: 12V / 1,5A

Purpose: Indoor

Buttons: Reset, LED

Operating temperature [°C]: 0 up to 40

Weight: 630g

Width: 195mm

Height: 35mm

Depth: 130mm

Colour: White

CPU: Dual Core

CPU frequency: 1300MHz

RAM: 512MB

Supported VPN: IPSec

Operating mode: AP Router, Access Point

Management: Web management, Mobilní aplikace, eKit cloud / eKit app

Default IP address: 192.168.112.1

Default login and password: Is set by the user at the first startup
