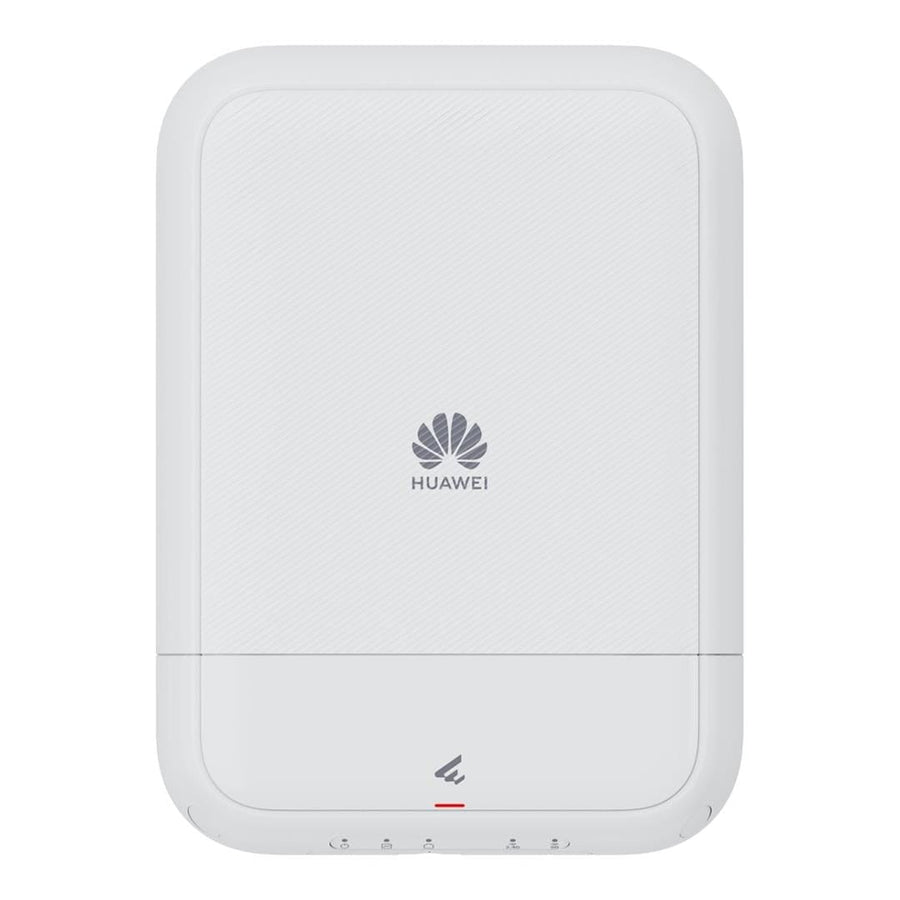

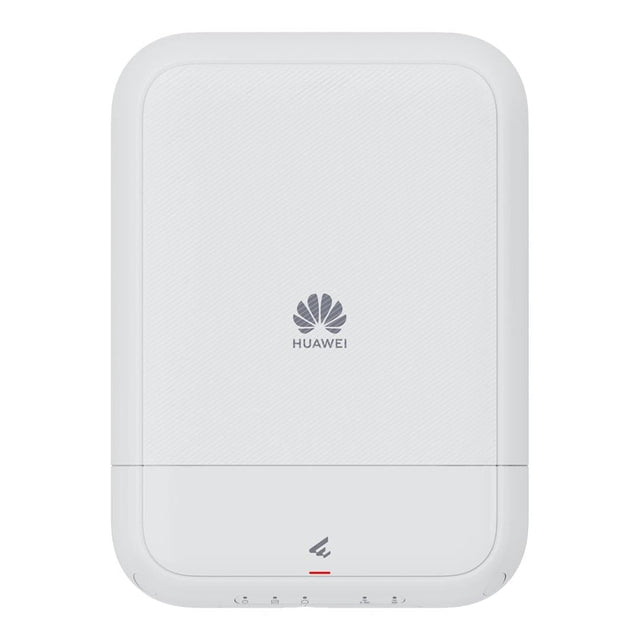

Huawei AP771 Dual-Band Wi-Fi 7 Outdoor Access Point

Huawei eKitEngine AP771 Wi-Fi 7 Dual-band Wireless Access Point 50088525

Huawei eKitEngine AP771 is a high-performance outdoor omnidirectional Wi-Fi 7 access point. It operates simultaneously in two bands (2.4GHz and 5GHz) and features modern technologies such as MU-MIMO, 4096-QAM, Multi RU, OFDMA, MLO and preamble puncturing. The AP is equipped with a durable, fully sealed enclosure with IP65 protection. It provides connectivity with a total throughput of up to 3.57Gbps and has a maximum power consumption of 18.8W.

• Wi-Fi 7 (802.11be) - extremely fast and stable connectivity
• Total throughput up to 3.57Gbps - 0.69Gbps on 2.4GHz (2×2) and 2.88Gbps on 5GHz (2×2)
• (1) 2.5G PoE+ port with 802.3at/af PoE+ support (functions are limited when using 802.3af)
• Coverage radius up to 130 meters thanks to built-in omnidirectional antennas
• Support for Fit / Fat / Cloud modes - flexible deployment in various environments
• Easy deployment and management via the HUAWEI eKit application
• IP65 weather-resistant enclosure and 6kA surge protection on the Ethernet port

Specifications:

Maximum modulation: 4096 QAM

Wireless frequency: 2.4 + 5 GHz (dual band)

WiFi standards: 802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax, 802.11be

MU-MIMO: Yes

Transmission speed - 5GHz: 2880Mb/s

Transmission speed - 2.4GHz: 688Mb/s

Tx power 2.4GHz: 28dBm

Tx power 5GHz: 27dBm

Security: WPA, WPA2, WPA3

Azimuth beam width (-6dB) [°]: 360

2.4GHz MIMO: 2 x 2

5GHz MIMO: 2 x 2

Type of antenna: Built-in

Roaming: Yes

Antenna gain: 7dBi

LAN speed: (1) 100/1000/2500Mbps

Gigabit LAN: Yes

Power over Ethernet: 802.3af, 802.3at

PoE type: PoE-In (only)

Max. power consumption: 18.8W

Purpose: Outdoor

Buttons: Reset

Operating temperature [°C]: -30 up to 60

Weight: 1140g

Width: 196mm

Height: 270mm

Depth: 51mm

Operating mode: Access Point
