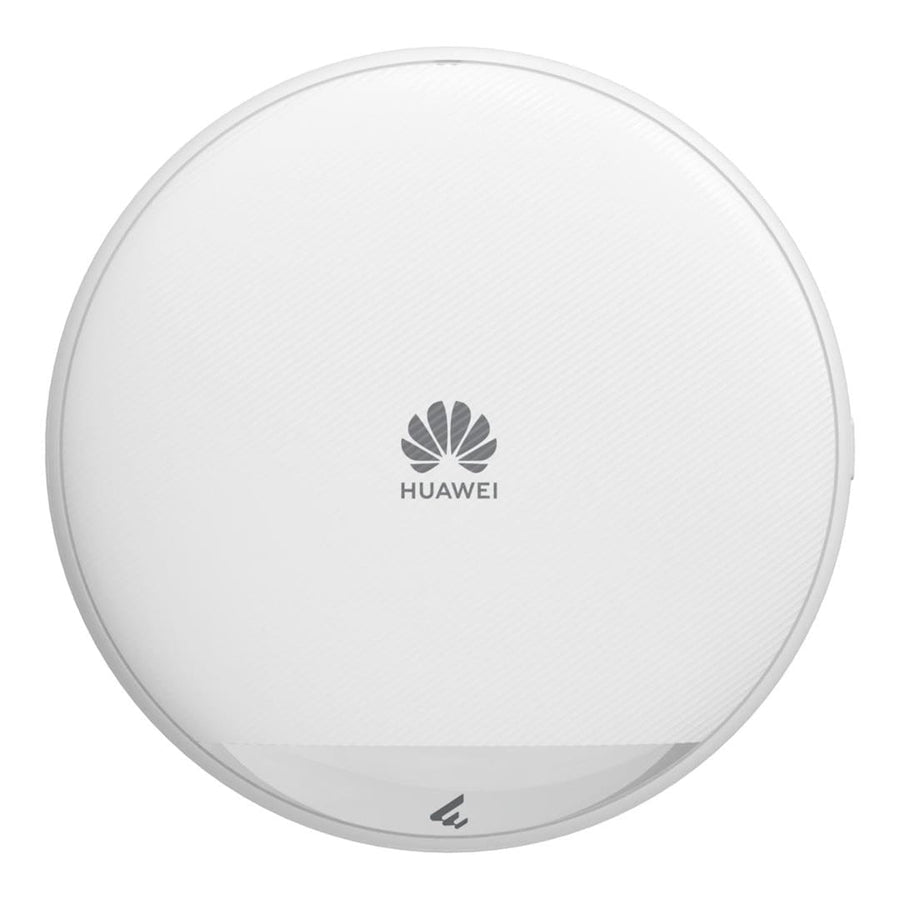

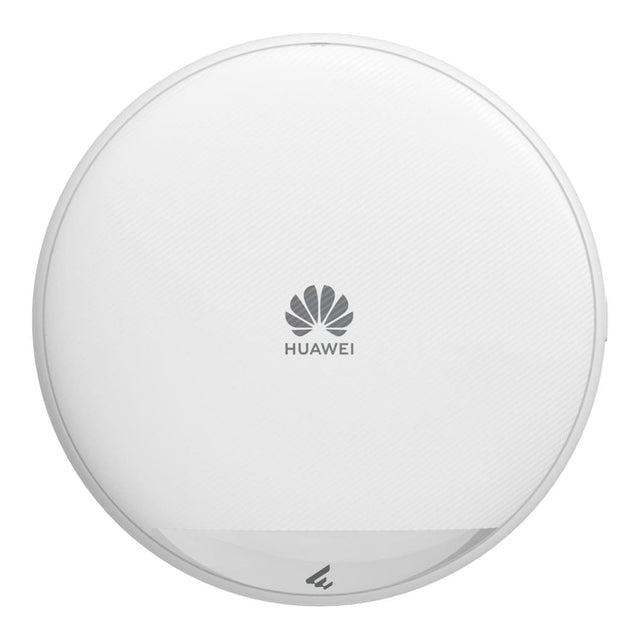

Huawei AP572 Wi-Fi 7 Dual-Band Indoor Access Point

Huawei AP572 eKit PoE Wireless Access Point 50088143

Technical Specifications:

Installation Type
Wall, Ceiling (Solid Wall / Gypsum Board / Spring Tee / Flat-Edge T-Rail / Channel Rail / Beam / Threaded Rod), Junction Box (86 mm / 1-Gang 120 mm / Octagonal / 2-Gang 120 mm)

Dimensions
Without Packaging (H × W × D): Diameter × depth: 220 mm × 45 mm (8.66" × 1.77")
With Packaging (H × W × D): 72 mm × 260 mm × 255 mm (2.83" × 10.24" × 10.04")

Weight
Without Packaging: 0.730 kg (1.61 lb)
With Packaging: 1.215 kg (2.68 lb)

Storage
NAND Flash 512 MB

Console Port
No

Power
Maximum Power Consumption: 14.8 W (excluding USB)
Maximum Heat Dissipation: 48.0 BTU/hour
Power Supply Mode: PoE / DC power adapter
Rated Input Voltage: DC: 12 V, PoE: 802.3at/af
Input Voltage Range: DC: 12 V ± 10%, PoE: 802.3at/af
Service Port Surge Protection: PoE port – Differential mode (48 V-RTN): 0.5 kV (1.2/50 µs, 42 Ω), criterion B; Common mode (8 wires to ground): 4 kV (1.2/50 µs, 42 Ω), criterion B
PoE OUT: Not supported

Cooling
None

Network Ports
2.5GE (RJ45) × 1, 100M/1000M/2500M auto-sensing
GE (RJ45) × 1, 10M/100M/1000M auto-sensing

Environmental
Long-term Operating Temperature: –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m, max ambient temp decreases by 1°C per 300 m increase in altitude)
Storage Temperature: –40°C to +70°C (–40°F to +158°F)
Long-term Operating Relative Humidity: 5% RH to 95% RH, non-condensing
Long-term Operating Altitude: –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric Pressure: 53 kPa – 106 kPa ETSI 300 019-2-3
Ground: Floating ground

USB
Supplies power of 2.5 W or 5 W

IoT Slot
Not supported

BLE
Not supported

Radio
Number of Radios: 2
Operating Frequency Band: 2.4 GHz / 5 GHz
MIMO Spatial Streams: Radio 0 (2.4 GHz): 2x2, Radio 1 (5 GHz): 4x4
Wi-Fi Standard: 2.4 GHz: 802.11b/g/n/ax/be, 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be
Radio Interface: Built-in smart antennas
Antenna Gain: 2.4 GHz: 4 dBi/chain (peak), 2 dBi (combined), 5 GHz: 5 dBi/chain (peak), 3 dBi (combined)
Maximum Transmit Power: 2.4 GHz: 20 dBm/chain, 23 dBm (combined), 5 GHz (4x4): 20 dBm/chain, 26 dBm (combined)
Signal Radio Transmit Power [dBm]: 2.4G: -10 to 20 dBm/chain, 5G: -10 to 20 dBm/chain

Reliability
MTBF: 138.501 year
MTTR: 2 hour
Frequency Stability [ppm]: ±20

Power Supply Compatibility
802.3bt: Power mode negotiated to 802.3at, no function restricted
802.3at: Power mode negotiated to 802.3at, no function restricted
802.3af: Radio mode restricted to 2.4 GHz (2x2) + 5 GHz (2x2), USB port unavailable, other functions not restricted
DC Power Supply: No function is limited
