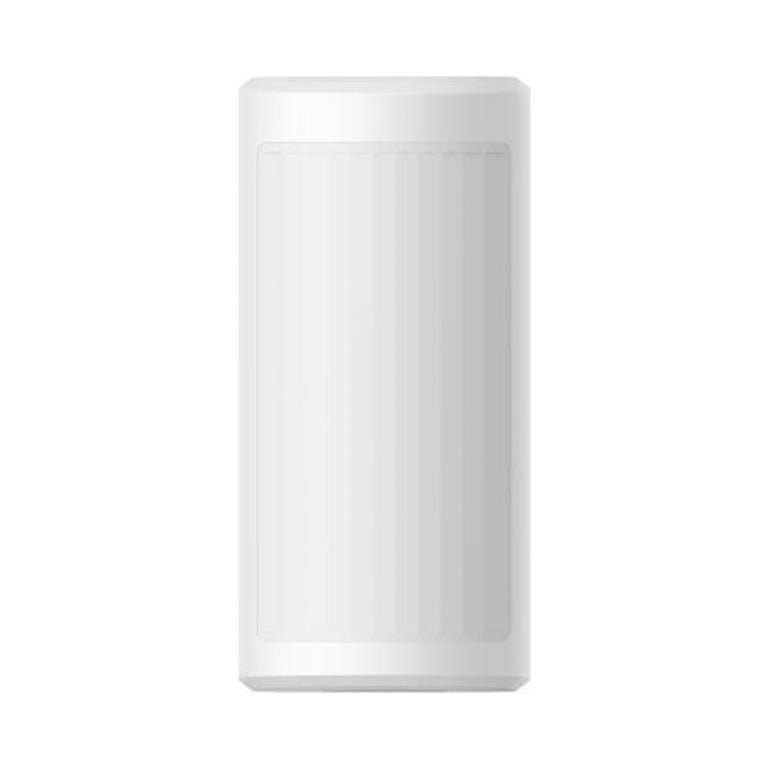

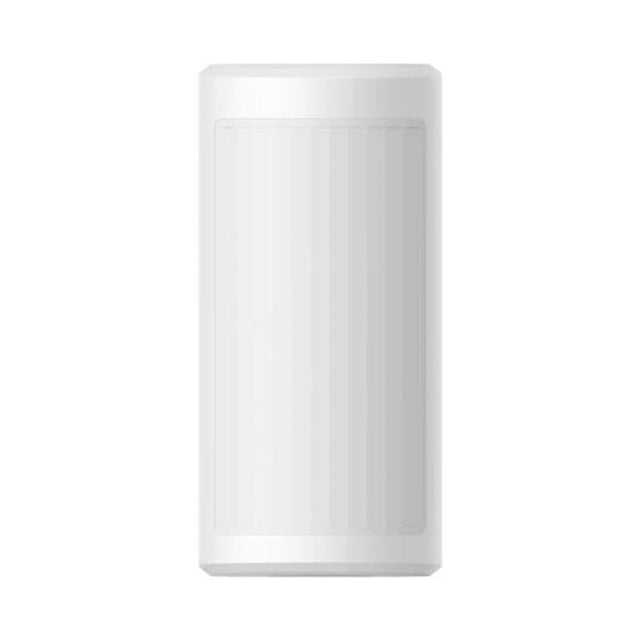

Hikvision Wired Double PIR Detector
The Hikvision is a wired double passive infrared detector designed for indoor and outdoor intrusion detection. It provides an 18 m detection range, a 90° detection angle and flexible high- or low-level mounting, making it suitable for protecting a variety of residential and commercial areas.
Automatic sensitivity, digital temperature compensation and sealed optics support dependable operation across changing environmental conditions. Its IP65-rated enclosure, selectable end-of-line resistors and reverse-polarity protection also help simplify outdoor installation and integration with compatible wired alarm systems.
Flexible Detection Coverage
The detector covers distances of up to 18 m across a 90° field of view, with 118 detection zones and support for detectable movement speeds from 0.3 to 2 m/s. Automatic and pet sensitivity options allow the detector to be configured for the requirements of the installation.
High- or Low-Level Installation
The can be wall-mounted at a height of 2.5 to 3 m or installed at a lower height of 0.8 to 1.2 m. This flexibility helps installers adapt its position to the layout and security requirements of the protected area.
Designed for Indoor and Outdoor Use
An IP65-rated enclosure provides protection against dust and water ingress for suitable outdoor applications. The detector operates in temperatures from -25 °C to 70 °C and includes digital temperature compensation, sealed optics and a 2,000 lux white-light filter.
Practical Wired Integration
Selectable end-of-line resistance values are provided for alarm and tamper circuits, helping the detector accommodate different wired alarm configurations. Front and rear tamper protection, a normally closed alarm output and separate alarm and fault indication provide useful installation and diagnostic support.
Key Features:
- Double passive infrared detection with a range of up to 18 m and a 90° detection angle.
- High- or low-level mounting options accommodate different installation layouts.
- IP65-rated construction supports suitable indoor and outdoor applications.
- Automatic sensitivity and pet immunity for animals weighing up to 24 kg.
- Digital temperature compensation, digital processing and sealed optics.
- Selectable alarm and tamper end-of-line resistance values simplify wired integration.
- 9 to 16 VDC input range with reverse-polarity protection.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Model | |
| Product Type | Wired double PIR detector |
| Detection Method | Passive infrared |
| Detection Range | Up to 18 m |
| Detection Angle | 90° |
| Detection Zones | 118 |
| Detectable Speed | 0.3 to 2 m/s |
| Sensitivity Modes | Automatic and pet |
| Pet Immunity | Up to 24 kg |
| White-Light Filter | 2,000 lux |
| Digital Temperature Compensation | Supported |
| Digital Processing | Supported |
| Sealed Optics | Supported |
| Tamper Protection | Front and rear |
| LED Indicators | Blue for alarm; orange for fault |
| Alarm End-of-Line Resistance | 1 kΩ, 2.2 kΩ, 4.7 kΩ, 5.6 kΩ or 6.8 kΩ |
| Tamper End-of-Line Resistance | 1 kΩ, 2.2 kΩ, 4.7 kΩ or 5.6 kΩ |
| Alarm Output | Normally closed |
| Power Supply | 9 to 16 VDC |
| Typical Voltage | 12 VDC |
| Current Consumption | 8 mA quiescent; 15 mA maximum at 12 VDC |
| Ingress Protection | IP65 |
| Operating Temperature | -25 °C to 70 °C |
| Storage Temperature | -25 °C to 70 °C |
| Operating Humidity | 10% to 90% |
| Dimensions | 67.3 × 142 × 60 mm |
| Weight | 226.3 g |
| Mounting Height | 2.5 to 3 m high mount; 0.8 to 1.2 m low mount |
| Mounting Method | Wall mounting |
| Application | Indoor and outdoor |
