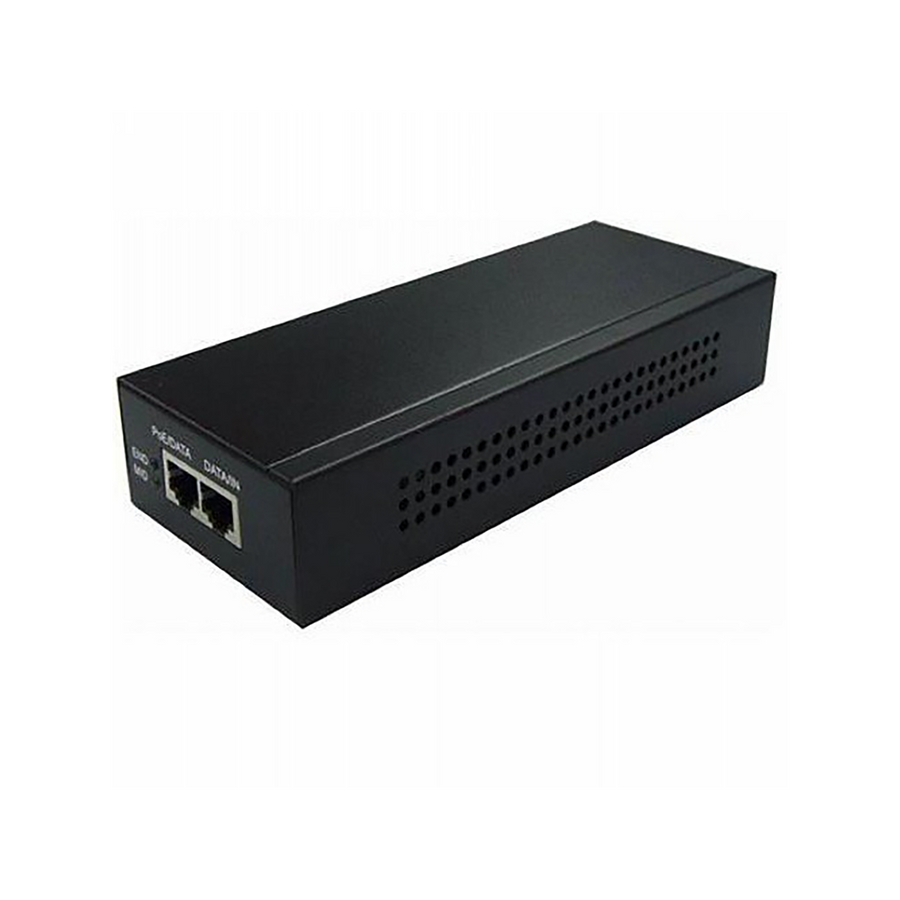

Hikvision 60W Midspan PoE Injector
Key Features
- Network Medium: 10BASE-T: unshielded twisted pair category 3, 4 or 5
- 100BASE-TX: unshielded twisted pair category 5 and above
- 1000BAST-TX: unshielded twisted pair category 5 and above
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | CCTV Accessories |
| Input Current | 2A |
| Output Voltage Range | 54V~57V |
| Output Power | 60W |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Ports | Two 10/100/1000M adaptive RJ45 ports, one is DATA/IN, another is PoE/DATA |
| LED Indicator | Power & PoE Status(The module operates normally when MID and END are on) |
| Base Function | Compliance to IEEE 802.3 at/af Standard for PD |
| Protection Methods | Output Over Current Protection, Short Circuit Protection |
| Operating Humidity | 5% ~ 90% |
| Weight | 473g |
| Dimension | 185mm*70.8mm*37mm (L*W*H) |
| Operating Temperature | -20 ~ 60 °C |
