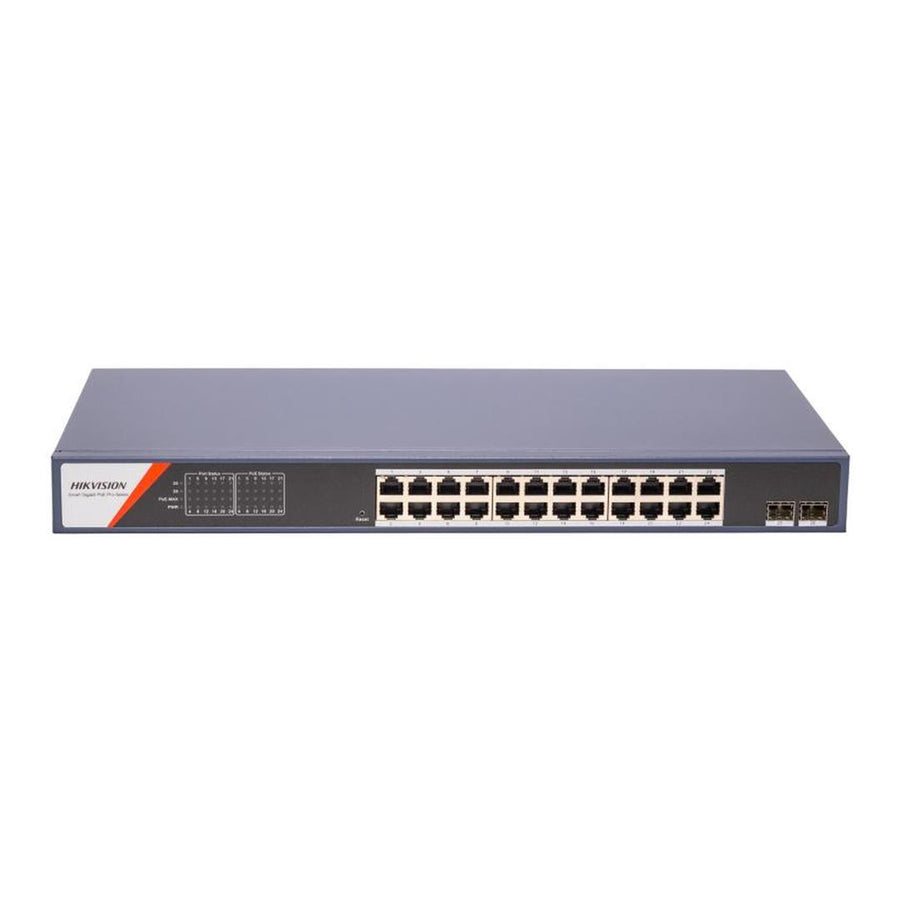

Hikvision 24 Port Gigabit Smart PoE Switch 2 Gigabit Fiber Ports
Hikvision 24-port Gigabit Smart PoE Switch The Hikvision is a smart managed Gigabit PoE switch designed for professional video surveillance and business network installations. It combines 24 Gigabit PoE ports, two Gigabit SFP fibre ports and a substantial 370 W PoE power...
Hikvision 24-port Gigabit Smart PoE Switch
The Hikvision is a smart managed Gigabit PoE switch designed for professional video surveillance and business network installations. It combines 24 Gigabit PoE ports, two Gigabit SFP fibre ports and a substantial 370 W PoE power budget, helping installers connect and power multiple compatible cameras and network devices from a central switch.
Web-based management, network monitoring and remote management through compatible Hikvision platforms make it easier to deploy, monitor and maintain connected equipment. Features including PoE watchdog, cable detection, VLAN support and loop prevention help support reliable day-to-day network operation.
Gigabit Connectivity with a 370 W PoE Budget
The switch provides 24 10/100/1000 Mbps PoE ports for connecting compatible cameras, access points and other powered devices. Each PoE port can supply up to 30 W, subject to the switch’s total 370 W PoE budget, while two 100/1000 Mbps SFP ports provide fibre uplink options for integration with wider network infrastructure.
Support for IEEE 802.3af and IEEE 802.3at enables the switch to work with a broad range of compatible PoE equipment. Its 56 Gbps switching capacity and 41.66 Mpps packet forwarding rate provide the capacity required for multi-device installations.
Practical Management for Surveillance Networks
The supports web-based device management as well as compatible Hik-Central Pro and Hik-Partner Pro management. Hik-Partner Pro can be used to view network topology, port rates, bandwidth utilisation, PoE power usage and alarm status, as well as restart ports and supported connected devices remotely.
PoE watchdog can automatically detect and restart cameras that stop responding. Cable detection can help identify open circuits, short circuits and approximate cable length, making it easier to locate connection problems during installation or maintenance.
Network Control and Protection
IEEE 802.1Q VLAN support allows network traffic to be separated into configurable virtual networks. STP, RSTP and ERPS loop-prevention technologies help protect network communication, while storm control, DHCP snooping, access control and IP source guard features provide additional tools for managing network access and traffic.
The switch also offers 6 kV surge protection and a durable metal enclosure. Its rack-mount design and included mounting ears make it suitable for structured equipment cabinets and professional surveillance installations.
Key Features:
- Twenty-four 10/100/1000 Mbps PoE ports provide Gigabit data connectivity and power for compatible devices.
- Two 100/1000 Mbps SFP ports support fibre uplinks to compatible network equipment.
- Up to 30 W is available per PoE port, with a total PoE power budget of 370 W.
- PoE watchdog can detect and restart connected cameras that stop responding.
- Long-range mode supports transmission distances of up to 300 metres on ports 1 to 24, subject to the camera model and cable conditions.
- IEEE 802.1Q VLAN, STP, RSTP, ERPS, QoS, link aggregation and storm control provide practical network-management options.
- Web management, cable detection, SNMP and compatible Hikvision platform management simplify monitoring and maintenance.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | Hikvision |
| Model | |
| Manufacturer Part Number | |
| Product Type | 24-port Gigabit smart managed PoE switch |
| PoE Network Ports | 24 × 10/100/1000 Mbps Gigabit PoE ports |
| Fibre Ports | 2 × 100/1000 Mbps SFP ports |
| PoE Ports | Ports 1 to 24 |
| PoE Standards | IEEE 802.3af and IEEE 802.3at |
| Maximum Power per PoE Port | 30 W |
| Total PoE Power Budget | 370 W |
| PoE Power Pins | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| MAC Address Table | 8K entries |
| Internal Cache | 4.1 Mbits |
| Long-Range Mode | Up to 300 m on ports 1 to 24; performance may vary according to the camera model and cable conditions |
| VLAN | IEEE 802.1Q; configurable VLAN IDs from 1 to 4094; Access and Trunk port modes |
| Loop Prevention | IEEE 802.1D STP, IEEE 802.1w RSTP and G.8032 ERPS |
| Link Aggregation | Static link aggregation with up to eight aggregation groups |
| Quality of Service | Port-based priority configuration with SP and WRR scheduling |
| Management | Web management, SNMP v1/v2c, Hik-Central Pro and remote management through Hik-Partner Pro |
| Network Functions | PoE watchdog, port isolation, LLDP, cable detection, port mirroring, rate limiting, storm control, DHCP snooping, ACL and IP source guard |
| Surge Protection | 6 kV |
| Power Supply | 100 to 240 V AC, 50/60 Hz, maximum 7 A |
| Maximum Power Consumption | 400 W |
| Idle Power Consumption | 20 W |
| Energy Saving | User-configurable energy-saving plans |
| Enclosure | Metal |
| Installation | Rack mounting with mounting ears |
| Dimensions | 440.0 × 44.0 × 220.8 mm (W × H × D) |
| Net Weight | 2.81 kg |
| Gross Weight | 3.73 kg |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 95%, non-condensing |
Build and manage a multi-device surveillance network with Gigabit connectivity, a substantial PoE budget and practical remote-management features—add the Hikvision to your cart today.
