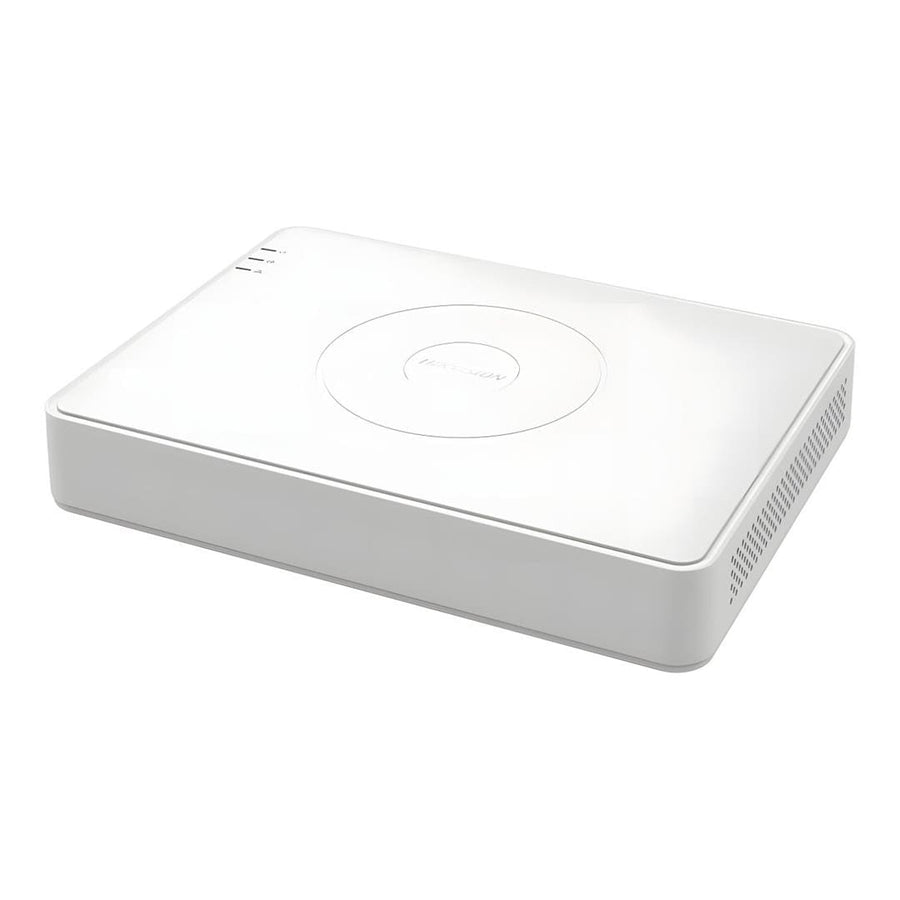

Hikvision 16-Channel 1080P Acusense Mini 1U DVR
Hikvision 16-Channel 1080P Acusense Mini 1U DVR The Hikvision 16-Channel 1080P Acusense Mini 1U DVR is in our Security DVR & NVR Kits range and available to order online from WeShopTech. Key details – Line Crossing Detection / Intrusion Detection: 4 Channels;...
Hikvision 16-Channel 1080P Acusense Mini 1U DVR
The Hikvision 16-Channel 1080P Acusense Mini 1U DVR is in our Security DVR & NVR Kits range and available to order online from WeShopTech. Key details – Line Crossing Detection / Intrusion Detection: 4 Channels; Facial Detection and Capture: Face Picture Detection, Face Picture Search; Quick Search: Supported by Object or Event Type.
Key Features
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- Up to 24-ch IP camera inputs (up to 6 MP)
- Motion Detection 2.0
Technical Specifications
| Specification | Details |
|---|---|
| Line Crossing Detection / Intrusion Detection | 4 Channels |
| Facial Detection and Capture | Face Picture Detection, Face Picture Search |
| Quick Search | Supported by Object or Event Type |
| IP Video Input | 2 Channels (Up to 18 Channels) |
| Enhanced IP Mode | 8 Channels (Up to 24 Channels), Up to 4 Mbps per Channel |
| Maximum IP Camera Resolution | Up to 6 MP |
| Supported IP Camera Formats | H.265+, H.265, H.264+, H.264 |
| Analog Video Input | 16 Channels |
| Interface | BNC (1.0 Vp-p, 75 Ω) |
| Coaxitron Support | Yes |
| Video Standard | PAL, NTSC |
| HDMI Output | 1 Channel |
| VGA Output | 1 Channel |
| Audio Input | 1 Channel (Up to 4 Channels Optional), RCA (2.0 Vp-p, 1 kΩ), 4 Channels via Coaxial Cable |
| Audio Output | 1 Channel, RCA (Linear, 1 kΩ) |
| Two-Way Audio | 1 Channel, RCA (2.0 Vp-p, 1 kΩ), Using the First Audio Input |
| Synchronous Playback | 16 Channels |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Encoding Resolution | 2K, 3K Lite, 5 MP Lite, 4 MP Lite, 3 MP, 1080p, 1080p Lite, 720p, 720p Lite, VGA, WD1, 4CIF, CIF |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Dual Stream | Supported |
| Stream Type | Video, Video and Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Remote Connections | 128 |
