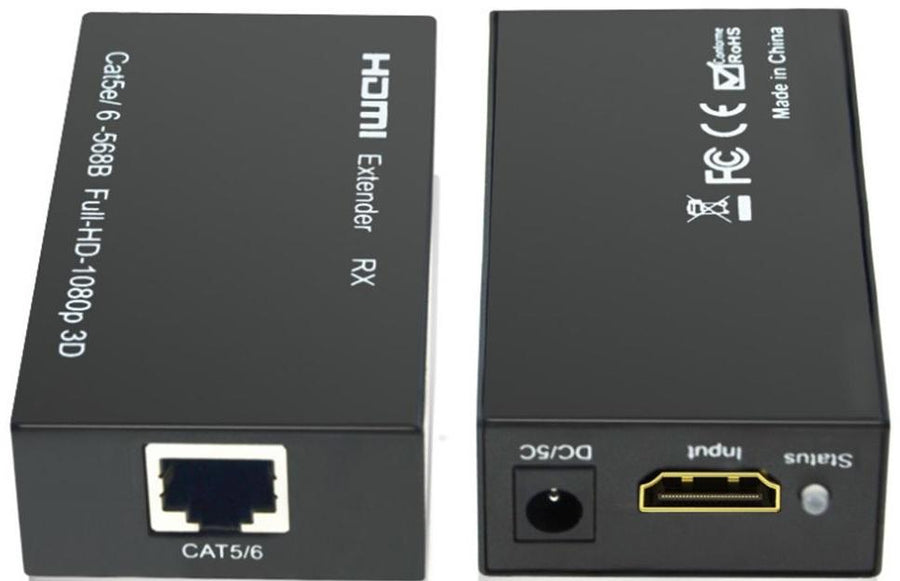

HDMI Extender Over LAN 60m
R 573.72
Incl. VAT · Free delivery over R1,500
HDMI EXTENDER OVER LAN 60M Key Features HDMI Extender Over Single 60M UTP Cables With IR Control The Transmitting unit is used to Capture the HDMI Input with IR Signals And carries the Signals via one cost effective Cat5e/6 Cable The Receiving...
WarrantyManufacturer-backed
Free deliveryTracked, 2–4 days
14-day returnsHassle-free
Expert helpCall 010 541 0089
HDMI EXTENDER OVER LAN 60M
Key Features
- HDMI Extender Over Single 60M UTP Cables With IR Control
- The Transmitting unit is used to Capture the HDMI Input with IR Signals
- And carries the Signals via one cost effective Cat5e/6 Cable
- The Receiving Unit is responsible for equalizing the Transmitted HDMI Signal and reconstructing IR control Signals
- The Extender offers the most convenient solution for HDMI Extension Over a Single Cat5e/6 with long distance capability
- And is the perfect solution for any Application
- Allows HDMI Audio/Video and IR Signals to be Transmitted Over a Single Cat5e/6 Cable
- Support copy EDID from, Receiver Display or loop out Display
- Allows for cascading via additional HDMI loop Out Port Support Power Over Cable unction
- Works with HDMI and HDCP Compliant Devices
- Supports up to1080p High Definition Resolution
- Compact Design for an easy and Flexible Installation
- Surround Sound (up to7.1 ch)or Stereo Digital Audio
- Input TMDS Signal 3.3 Volts
What's in the Box
- Windband IR RX Cable 1pcs
- 5V1A DC Power Supply Adaptor: 1pcs
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer Part Number | HDME60M |
| The Extender includes Two Units | Transmitting Unit and Receiving Unit |
| HDMI Transmitter | 1pcs |
| HDMI Receiver | 1pcs |
| Windband IR Tx Cable | 1pcs |
| Transmission Range | Extends1080p Resolution up to 60m Over a Single Cat5e or Cat6 Cable |
| Bandwidth | Single-Link 165Mhz |
| Audio Support | [4.95Gbps] 480i/480p/720p/1080i/1080p@60 |
| Input DDC Signal ESD | 5.0 Volts/P-P |
| Protection | Human Body Model: +/-8 kV (air-gap discharge) |
| RJ-45 Connector | WE/SS 8P8C |
| Housing Metal enclosure Power Supply | (1)5V1A DC |
| Power Consumption | 1.5 Watts (TX);1.0 watts (RX) Operation Temperature 32-104°F |
| Storage Temperature | -4-140°F |
| Relative Humidity | 20-90%RH (no condensation) |
