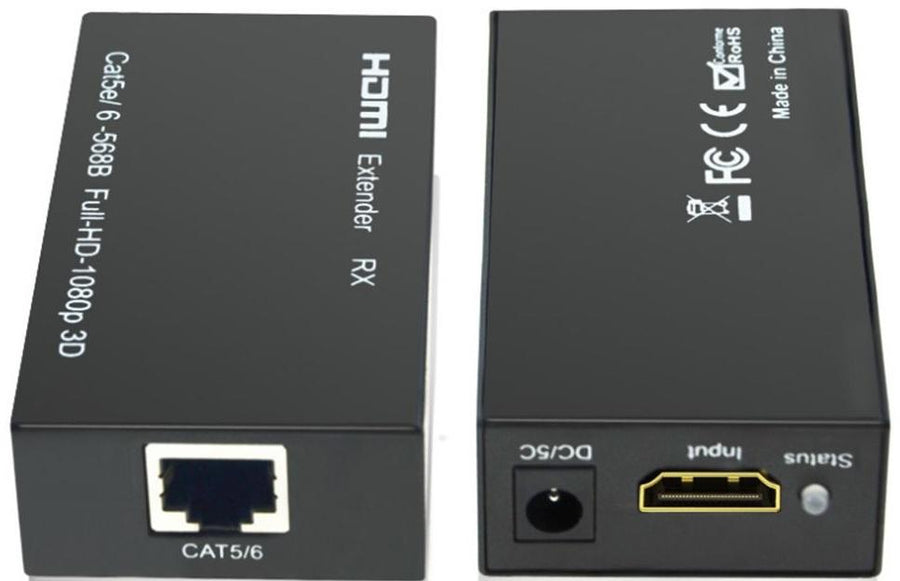

HDMI Extender Over LAN 60M

HDMI EXTENDER OVER LAN 60M - HDME60M

HDMI Extender Over Single 60M UTP Cables With IR Control

The Extender includes Two Units: Transmitting Unit and Receiving Unit

The Transmitting unit is used to Capture the HDMI Input with IR Signals

And carries the Signals via one cost effective Cat5e/6  Cable

The Receiving Unit   is responsible  for equalizing the Transmitted HDMI Signal and reconstructing IR control Signals

The Extender  offers the most convenient solution for HDMI Extension Over a Single Cat5e/6 with long distance capability

And is the perfect solution for any Application

Package Contents

HDMI Transmitter: 1pcs

HDMI Receiver: 1pcs

Windband IR Tx Cable: 1pcs

Windband IR RX Cable 1pcs

5V1A DC Power Supply Adaptor:  1pcs

Features

Allows HDMI Audio/Video and IR Signals to be Transmitted Over a Single Cat5e/6 Cable

Support copy EDID from, Receiver Display or loop out Display

Allows for cascading via additional HDMI loop Out Port Support Power Over Cable unction

Transmission Range: Extends1080p Resolution up to 60m Over a Single Cat5e or Cat6 Cable

Works with HDMI and HDCP Compliant Devices

Supports up to1080p High Definition Resolution

Compact Design for an easy and Flexible Installation

Specifications

Video

Bandwidth: Single-Link 165Mhz

Audio Support: [4.95Gbps] 480i/480p/720p/1080i/1080p@60

Surround Sound (up to7.1 ch)or Stereo Digital Audio

Transmission Range: HD [1080p  24-bit  color]-up to] 50m[164ft]

Input TMDS Signal 3.3 Volts

Input DDC Signal ESD:  5.0 Volts/P-P

Protection: Human Body Model: +/-8 kV (air-gap discharge)

+/-4kV (contact discharge) Type A19 Pin Female

HDMI Connector

RJ-45 Connector: WE/SS 8P8C

35mm Connector: (TX and RX) IR Receiver/R Blaster

MECHANICAL SPECS

Housing Metal enclosure Power Supply: (1)5V1A DC

Power Consumption: 1.5 Watts (TX);1.0 watts (RX) Operation Temperature 32-104°F

Storage Temperature :  -4-140°F

Relative Humidity: 20-90%RH (no condensation)
