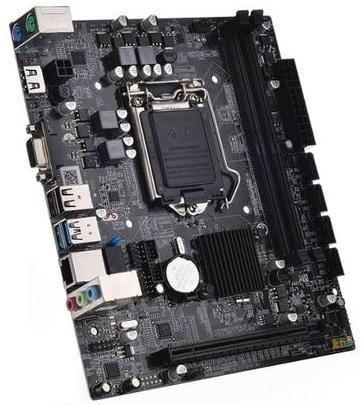

H110MB,1151, DDR4, Micro ATX
H110 MB,1151,DDR4,MICRO ATX ARKTEK H110 LGA1151 DDR4 MB - AK-H110M EG. Intel H110 Motherboard. Spec. Core i7 -7700 / Core i5 / Core i3 / Pentium / Celeron Processors Supports Intel 14 nm CPU. Real I/O. 1 x PS/2 Mouse Port 1...
H110 MB,1151,DDR4,MICRO ATX
ARKTEK H110 LGA1151 DDR4 MB - AK-H110M EG. Intel H110 Motherboard. Spec. Core i7 -7700 / Core i5 / Core i3 / Pentium / Celeron Processors Supports Intel 14 nm CPU. Real I/O. 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x VGA Port 1 x HDMI Port. 2 x USB 2.0 Port 2 x USB 3.0 Port 1 x LAN Jack 3 x Audio Jack. 1 x USB 3.0 Header Supports additional 2 USB 3.0 Ports 1 x Front Panel Audio Header. Accessories. 1 x SATA Cable. 1 x I/O Backboard. 1 x User Manual. 1 x Driver CD.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AK-H110M EG |
| Socket | LGA1151 |
| Chipset | Intel H110 |
| Memory Support | Dual Channel DDR4 |
| Intel | H110 |
| CPU Support | CPU Support: Intel Socket 1151 for 6th /7th / 8th / 9th Generation |
| On-Board Graphics | Integrated Graphics Processor-Intel HD Graphics support |
| Memory | 2 DDR4 2400/2666/3000MHz Memory Max. Up To 32GB Each |
| DIMM | 2 x Memory Slots |
| LAN | On Board Realtek RTL8105E 10/100 Mbps Adaptive Network Card Interface |
| Audio | Chip Integrated By Realtek 661 On Board, Supports 6-Channel Audio-Out |
| SATA | 3 x SATA, 1 x M.2 Supports PCIE+SATA Mode |
| Internal I/O | 2 x USB 2.0 Header Supports Additional 3 USB 2.0 Ports |
| Expansion Slots | 1 x PCI Express x 16 slot |
| Form Factor | Micro-ATX (22 x 17 cm) |
| OS Support | Support Windows 7 / 8 / 8.1 / 10(x64) |
| Mounting | 4 Mounting Holes |
