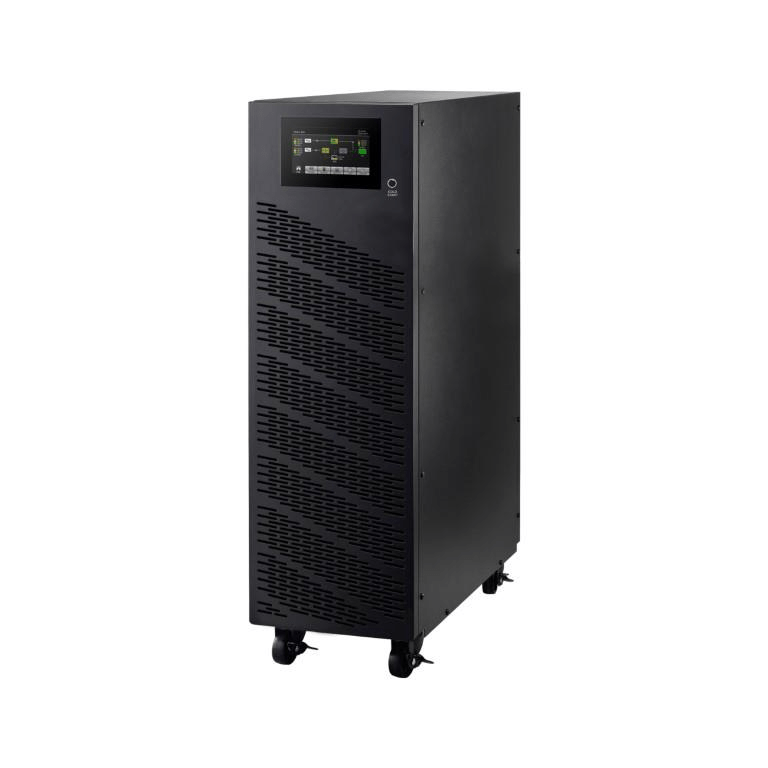

Galleon II 3P/3P 10K/ Online Tower 3 Phase UPS PF1.0. - Battery Warranty 6 Months
The Galleon II 3P/3P 10K/ Online Tower 3 Phase UPS PF1.0. - Battery Warranty 6 Months is in our Uninterruptible Power Supply (UPS) range and available to order online from WeShopTech. Key details – Phase: 3-Phase Input / 3-Phase Output; Capacity: 10kVA / 10kW.
Key Features
- Output power factor 1
- SNMP+USB+RS-232 multiple communications
- ≤2% THD (Linear Load)
- >130% for 1 Minute (Default)
- *When output voltage is set as 3 x 360VAC, the output power of the unit will be de-rated to 90%.
- **If the UPS is installed or used in a place where the altitude is higher than maximum height, the output power will be derated 1% per 100m.
Technical Specifications
| Specification | Details |
|---|---|
| Product | Mecer Galleon II 3-Phase UPS |
| Phase | 3-Phase Input / 3-Phase Output |
| Capacity | 10kVA / 10kW |
| Parallel Capability | Up to 4 Units |
| Input Nominal Voltage | 3 x 400V AC (3Ph+N) / 230V AC (1Ph=N) |
| Input Frequency Range | 46-54Hz or 56-64Hz |
| Input Harmonic Distortion (THDi) | <4% at Full Linear Load |
| Output Voltage | 208/220/230/240V AC (1Ph+N) |
| AC Voltage Regulation (Battery Mode) | ±1% |
| Output Frequency Range (Synchronized) | 46-54Hz or 56-64Hz |
| Output Frequency Range (Battery Mode) | 50/60Hz ±1% or 60Hz ±0.1Hz |
| Current Crest Ratio | 3:1 (Maximum) |
| Output Harmonic Distortion (THDv) | ≤5% THD (Non-Linear Load) |
| AC Mode to Battery Mode | Zero |
| Transfer Time | Inverter to Bypass: Zero |
| Waveform (Battery Mode) | Pure Sine Wave |
| Overload Capability (AC Mode) | >150% Immediate |
| Overload Capability (Battery Mode) | >150% Immediate |
| Bypass Nominal Voltage | 3 x 380/400/415V AC (3Ph+N) |
| Bypass Voltage Range | -30% to +20% (Adjustable) |
| Bypass Frequency Range | 46-54Hz or 56-64Hz |
| Bypass Overload Capability | Continuous Operation Until Breaker Protection (Optional) |
| Battery Type | 12V / 9Ah |
| Battery Quantity | 20 Batteries (10 + 10) |
| Typical Recharge Time | 4 Hours to Recover 90% Capacity |
