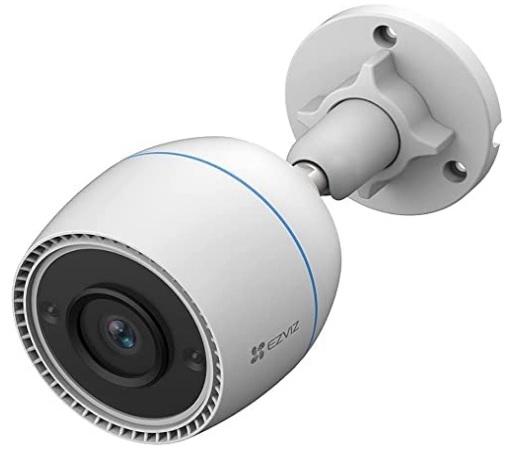

Ezviz WI-FI Smart Home Camera

EZVIZ WI-FI SMART HOME CAMERA - C3TN Home protection in the simplest way

If you are seeking for a simple

Durable Camera to tackle Multiple security needs at a super affordable price

The C3TN can’t be beat

The camera is well-engineered to focus on the most needed features to get the basics right

Including great video quality

Extended night vision, weatherproof housing, and more

FHD 1080p Resolution

IP67 Weatherproof Design

Motion Detection

Audio Pick-Up

IR Night Vision (Up to 30 m/98 ft)

H.265 Video Technology

Supports MicroSD Card (Up to 256 GB)

Supports EZVIZ Cloud Storage

Specifications Camera

Image Sensor: 1/2.7 Progressive Scan CMOS

Minimum Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Speed: Self-adaptive shutter

Lens: 2.8 mm @ F2.0, view angle: 106 (Horizontal), 122 (Diagonal)

Lens Mount: M12

DNR: 3D DNR

WDR: Digital WDR

Compression

Video Compression: H.265 / H.264

Video Bit Rate: Ultra-HD; HD; Standard. Adaptive bit rate


Max. Resolution: 1920 × 1080

Frame Rate: Max: 30fps; Self-Adaptive during network transmission

Network

Wi-Fi Pairing: AP Pairing

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol: EZVIZ Cloud Proprietary Protocol

General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Max. Bitrate: 2M

Interface Storage: Micro SD card slot (Max. 256 GB)

Wired network: RJ45 × 1(10M/100M Adaptive Ethernet Port)

Wi-Fi

Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4GHz - 2.4835 GHz

Channel Bandwidth: Supports 20MHz

Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate: 11b: 11Mbps,11g: 54Mbps,11n: 144Mbps
