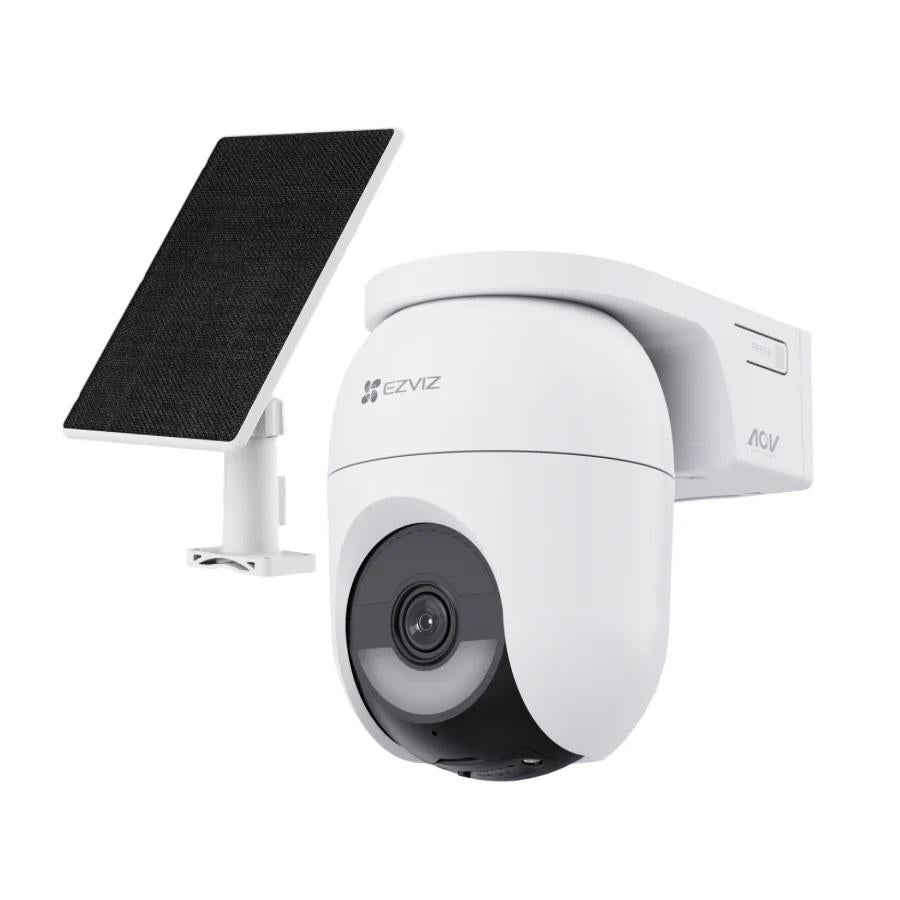

Ezviz CB8 4G + WI-FI Battery Camera Kit
EZVIZ CB8 4G + WI-FI BATTERY CAMERA KIT - E-CB8C4GCS-CB8c-R100-1N4WL4GA, CS-CB8c/SP (4MP,W4GA)CameraImage Sensor: 1/3 4-Megapixel Progressive Scan CMOS SensorMinimum Illumination: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IRShutter Speed: Self-Adaptive ShutterLens 4mm@ F1.6 Diagonal Angle: 90Horizontal Angle: 75°...
EZVIZ CB8 4G + WI-FI BATTERY CAMERA KIT - E-CB8C4G
CS-CB8c-R100-1N4WL4GA, CS-CB8c/SP (4MP,W4GA)
Camera
Image Sensor: 1/3 4-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed: Self-Adaptive Shutter
Lens
4mm@ F1.6 Diagonal Angle: 90
Horizontal Angle: 75° Vertical Angle:40
PT Angle: Pan: 340°, Tilt: 80°
Day & Night: IR-Cut Filter With Auto Switch
DNR: 3D DNR
Night Vision: 15 m
Video & Audio
Max Resolution: 4MP
Frame Rate: 15fps; Self-Adaptive during Network Transmission
Video Compression: H.265 / H.264
Video Bit Rate: Ultra-HD; Full HD; Hi-Def; Adaptive Bit Rate
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 4 Mbps
Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n, 802.11 ax
Frequency Range: 2.4 GHz - 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11Mbps,11g :54Mbps,11n :72Mbps, 11ax:114Mbps
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement: 4 Mbps
Frequency Bands
IN LTE-FDD: B1/B3/B5/B8
IN LTE-TDD: B34/B38/B39/B40/B41
EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28
EU LTE-TDD: B38/B40/B41
LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
LA LTE-TDD: B38/B40/B41
Function
Smart Alarm
AI-Powered Human Shape Detection
AI-Powered Vehicle Shape Detection
Two-Way Talk: Supports
General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage: Supports MicroSD Card (Max. 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay Storage (Subscription Required)
General
Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F)
Humidity 95% Or Less (Non-c=Condensing)
IP Grade: IP65
Power Supply: DC 5 V / 2 A (Adapter Needs To Be Purchased Separately)
Battery Capacity: 5,200 mAh
Power Consumption: Max.10 W
Product Dimensions: 157 × 102 × 148 mm (6.18 × 4.02 × 5.83 inch)
Packaging Dimensions: 205 × 145 × 194 mm (8.07 × 5.71 × 7.64 inch)
Product Weight:640 g (22.58 oz)
Weight With Package: 1,090 g (38.48 oz)
In The Box
CB8 Lite 4G Camera
Solar Panel 5W
Drilling Template
Adjustable Mounting Bracket
Screw Kit × 2
Power Cable
Regulatory Information × 3
Quick Start Guide × 2
Certifications: CE / REACH / WEEE / RoHS
