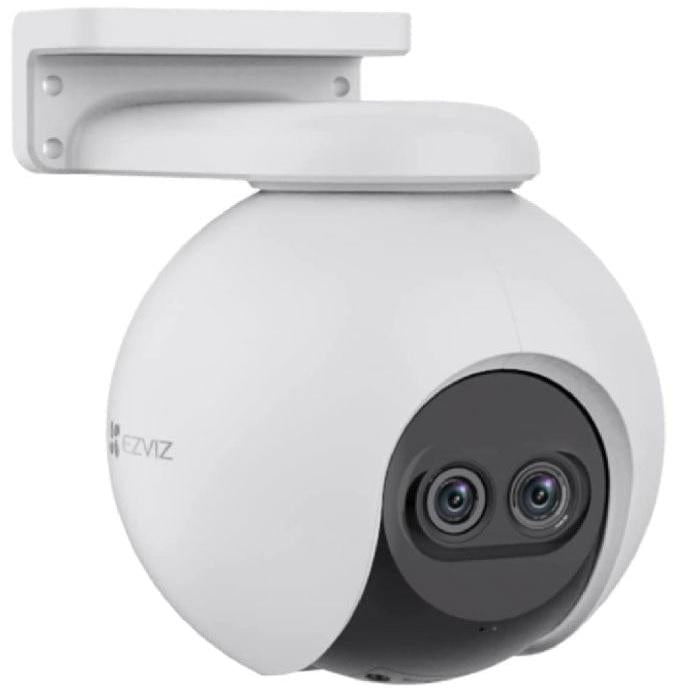

Ezviz C8PF Pan / Tilt Camera
EZVIZ C8PF PAN / TILT CAMERA - E-C8PF C8PFDual-Lens Weatherproof Pan & Tilt Wi-Fi CameraSpecificationsModel: CS-C8PF (1080P)CameraImage Sensor: Dual-1/2.7" Progressive Scan CMOSShutter Speed: Self-Adaptive ShutterLens: 2.8 mm @ F1.6 + 12 mm @ F1.6PT Angle: Pan: 340°, Tilt: 80°Minimum Illumination: 0.05Lux @ (F1.6...
EZVIZ C8PF PAN / TILT CAMERA - E-C8PF
C8PF
Dual-Lens Weatherproof Pan & Tilt Wi-Fi Camera
Specifications
Model: CS-C8PF (1080P)
Camera
Image Sensor: Dual-1/2.7" Progressive Scan CMOS
Shutter Speed: Self-Adaptive Shutter
Lens: 2.8 mm @ F1.6 + 12 mm @ F1.6
PT Angle: Pan: 340°, Tilt: 80°
Minimum Illumination: 0.05Lux @ (F1.6 AGC ON), 0 Lux with IR
Lens Mount: M12
Day & Night: IR-cut filter with auto switching
DNR: 3D DNR
WDR: Digital WDR
BLC: Supports
Black & White Night: 30 m/ 98 ft
Video & Audio
Max Resolution: 1920 × 1080
Frame Rate: Max. 15fps, self-adaptive during Network Transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Full HD; HD; Standard. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 2Mbps
Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz - 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11Mbps,11g :54Mbps,11n :72Mbps
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: RJ45 × 1(10M/100M Adaptive Ethernet Port)
Function
Smart Alarm: AI-Powered Human Shape Detection
Customized Alert Area: Supports
Audio: Supports Mic
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage: MicroSD Card Slot (Max. 512GB)
Cloud Storage: EZVIZ cloud storage
General
Operating Conditions: -30ºC to 60ºC (14°F to 113°F), Humidity 95% or less (non-condensing)
IP Grade: Weatherproof Design
Power Supply: DC 12V / 1A
Power Consumption: MAX. 12W
Dimensions: 154 × 116 × 164 mm (6.06 × 4.57 × 6.46 inch)
Packaging Dimensions: 197 × 185 × 205 mm (7.76 × 7.28 × 8.07 inch)
Weight Product: 578 g (20.39 oz)
With Package: 938 g (33.09 oz)
In The Box
C8PF Camera
1.5-Meter Power Adapter
Screw Kit
Waterproof Kit
Drill Template
Regulatory Information
Quick Start Guide
Certifications
Certifications: UL / FCC / CE / WEEE / REACH/ ROHS
