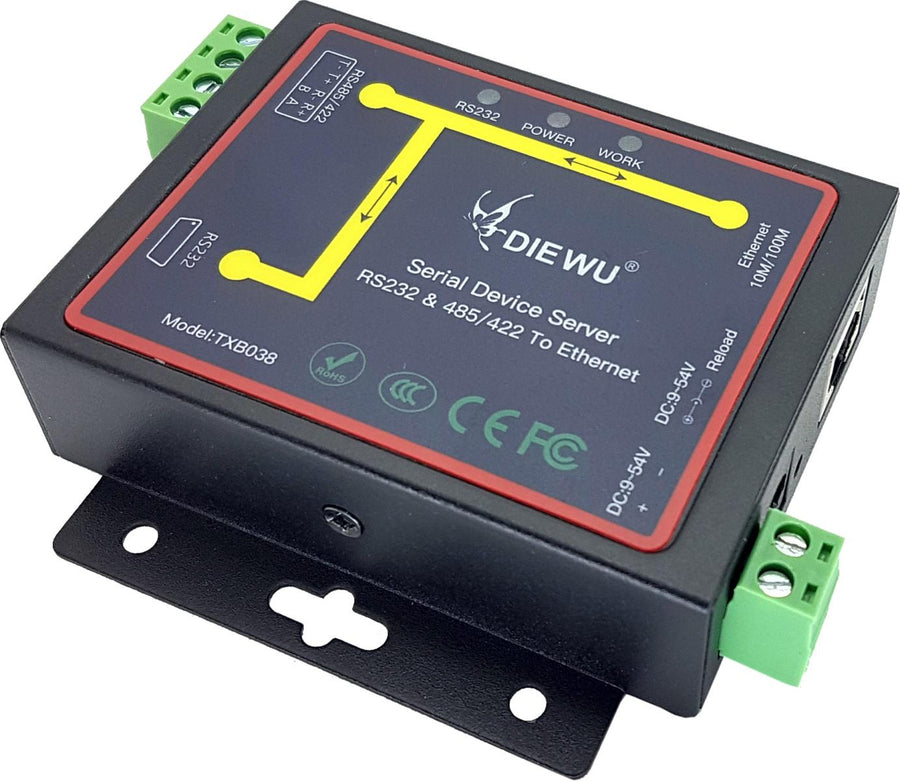

Ethernet to RS232/RS485
ETHERNET TO RS232/RS485 Ethernet to Serial Device. Product specification. Environment. Other function. RS485 Support full Duplex and half Duplex. Build Load Default Key. Device Default Parameters. Local Port. Load Default. Power off the Device. Hold the Load Default Button. Power on the...
ETHERNET TO RS232/RS485
Ethernet to Serial Device. Product specification. Environment. Other function. RS485 Support full Duplex and half Duplex. Build Load Default Key. Device Default Parameters. Local Port. Load Default. Power off the Device. Hold the Load Default Button. Power on the Device, hold the Button for 10 seconds, then release Default Button.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | TXI038 |
| Chipset | IP210 |
| Port Number | 1 Port 10/100M Auto MDI-MDIX RJ45,1 Port RS232,1port RS485/422 |
| Standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az |
| Network Media | 10Base-T,Cat3 or above UTP,10Base-Tx,Cat5 UTP |
| Data Rate | 10/100M |
| Forwarding Rate | 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps |
| LED Indicator | Link/Act, Power, System, TX/RX |
| Baud Rate | 110bps - 256000bps |
| Operation Modes | TCP Server, TCP Client, UDP |
| Dimension | 86 x 84 x 25mm |
| Power Input | DC9V-54V |
| Power Consumption | Max1.8W |
| Operating Temperature | -10 ?-55 ? |
| Relative Humidity | 10%-90%(non-condensing) |
| Storage Temperature | -40?-85? |
| ID | Admin |
| Password | System |
| IP Address | 192.168.2.1 |
| Operation Mode | TCP server |
| Transmission Mode | RS232 |
| UART Parameters | 57600,8,N,1 |
| TCP | 23 |
| UDP | 21 |
