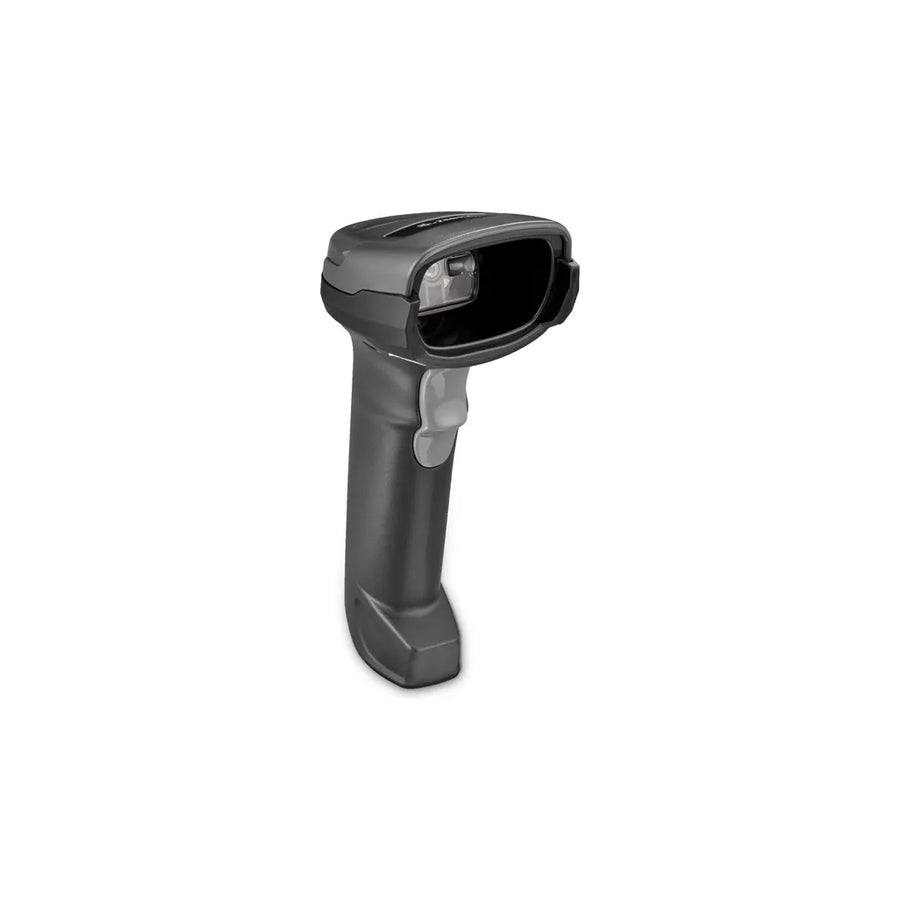

Zebra DS2208 Handheld Bar Code Reader 1D/2D LED Black

DS2208-SR7U2100SGW

Zebra DS2208. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB, RS-232, RS-485, Keyboard wedge. Product colour: Black, International Protection (IP) code: IP42, Certification: EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2.... Power source type: DC, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 2400 mAh. Weight: 161.6 g, Width: 66 mm, Depth: 99 mm

Specifications

• Product colour: Black
• LED indicators: Y
• International Protection (IP) code: IP42
• Certification: EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B
• Product colour: Black
• RoHS compliance: Y
• Certification: EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07\nIEC 62471\nEN 55022 (Class B); EN 55032 (Class B)\nEN 55024\nEN 61000-3-2\nEN 61000-3-3\n47 CFR Part 15, Subpart B, Class B\nICES-003 Issue 6, Class B
• LED indicators: Y
• International Protection (IP) code: IP42
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 2400
• AC adapter output voltage: 5
• Power source type: DC
• Battery life: 100
• Power consumption: 250
• Connectivity technology: Wired
• Wireless range: 10
• Bluetooth version: 4.0 BLE
• Standard interfaces: USB,RS-232,RS-485,Keyboard wedge
• Width: 66
• Weight: 161.6
• Depth: 99
• Height: 165
• Cables included: Micro-USB
• Charging base: N
• Operating temperature (T-T): 0 - 50
• Operating relative humidity (H-H): 5 - 95
• Storage temperature (T-T): -40 - 70
• Type: Handheld bar code reader
• Scanner type: 1D/2D
• Sensor type: LED
• Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,GS1 DataBar Expanded,Interleaved 2 of 5,MSI,U.P.C.
• 2D (matrix & stacked) barcodes supported: Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,PDF417,QR Code,TLC-39
• Optical sensor resolution (W x H): 640 x 480
• Working distance: 368
• Wavelength: 645
• Tilt reading angle: -65 - 65
• Pitch reading angle: -65 - 65
• Yaw reading angle: -65 - 65
• Motion tolerance (cm/s): 13
• Harmonized System (HS) code: 84716070
• Compliance certificates: RoHS
