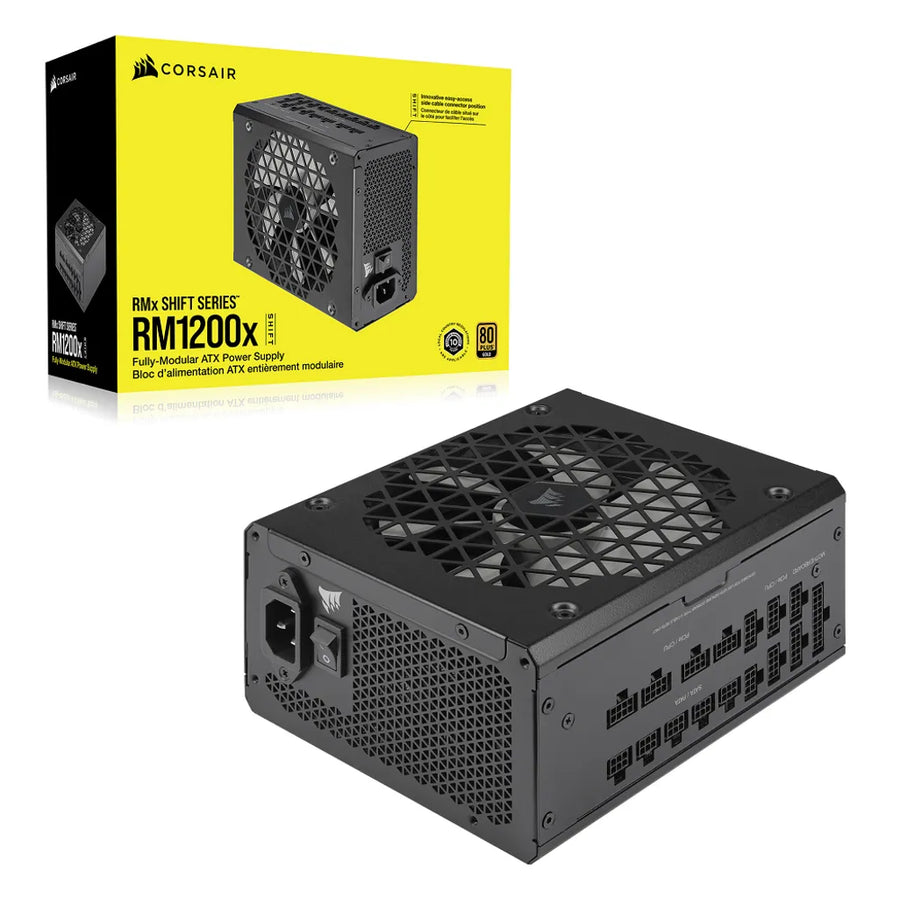

Corsair CP-9020254-WW

CP-9020254-WW

Corsair RM1200x SHIFT. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 455,570,685,800 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Cables included: AC, DC

Specifications

• Product colour: Black
• Number of fans: 1
• Cooling type: Active
• Fan diameter: 140
• On/off switch: Y
• Width: 150
• Weight: 2000
• Depth: 180
• Height: 86
• AC input voltage: 100 - 240
• AC input frequency: 47 - 63
• Input current: 7.5 - 15
• Power protection features: Over current,Over power,Over voltage,Overheating,Short circuit
• Total power: 1200
• Combined power (+3.3V): 150
• Combined power (+12V): 1200
• Combined power (+5V): 150
• Combined power (+5Vsb): 15
• Max output current (+3.3V): 20
• Max output current (+12V): 100
• Max output current (+5V): 20
• Max output current (+5Vsb): 3
• Efficiency: 90
• 80 PLUS certification: 80 PLUS Gold
• Mean time between failures (MTBF): 100000
• Power supply unit (PSU) form factor: ATX
• EPS version: 2.92
• Bearing technology: FDB
• ATX version: 3.0
• Purpose: PC/server
• Quantity: 1
• Peripheral (Molex) power connectors (4-pin): 8
• Number of SATA power connectors: 16
• Motherboard power connector: 24-pin ATX
• Motherboard power cable length: 610
• PCI Express power connectors (6+2 pin): 8
• Peripheral (Molex) power cable length: 450,550,650,750
• EPS power connector (4+4 pin): Y
• PCI Express power cable length: 750
• PCI Express power connectors (16-pin): 1
• Cabling type: Fully-Modular
• SATA power cable length: 455,570,685,800
• Screws included: Y
• EPS cable length: 650
• Sustainability compliance: Y
• Sustainability certificates: Low Voltage Directive (LVD),RoHS,UKCA
• Compliance certificates: Low Voltage Directive (LVD),RoHS,UKCA
• Cable tie(s) included: Y
• Cables included: AC,DC
