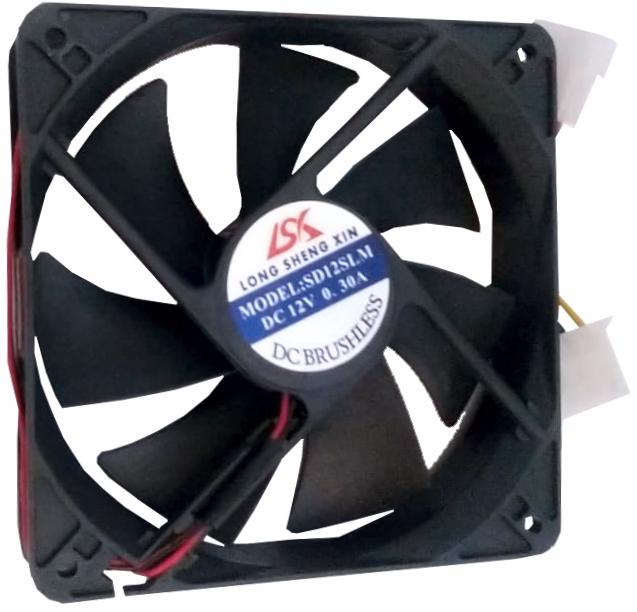

Chassis Fan: 120mm Black
CHASSIS FAN: 120MM BLACK - 12CMFAN DC FAN Chassis FAN, 120MM, BLACK Specification Measurement: 120 x 120 x 25mm Rated Voltage: 12 DCV Operating Voltage: 3.5 - 16 DCV Starting Voltage: 3 DCV (on/off) Rated Current: 0.25±0.01 Amp Input Power : 3...
Operating Voltage: 3.5 - 16 DCV
Starting Voltage: 3 DCV (on/off)
Rated Current: 0.25±0.01 Amp
Input Power : 3 Watts
Rated Speed: 1400 RPM±10% (after running3 - 5minutes)
Noise Level: 29 dB(A)
Max. Air Flow: 28 CFM
Max. Static Pressure: 4.2 mmAq
Life Expectancy : 20000 Hours (at 25 65%R.H.)
Operating Temperature: -10 - +85 (66%RH)
Storage Temperature: -40 -+70 (66%RH)
Weight: GramFAN HOUSING: PBT 85%+FIBER15%
FAN BLADE: PBT 80%+FIBER20%
INSULATOR FRAME: PBT 100%
SHAFT: STAINLESS STEEL
BEARING: SLEEVE
PLASTIC MAGNET: STRONTIUM FERRITE
ENAMELED WIRE: 2 UEW
SILICON STEEL STRIP: H23
HALL IC : 276
LEAD WIRES: 2468 26AWG L-300mm
TERMINAL: 4P
