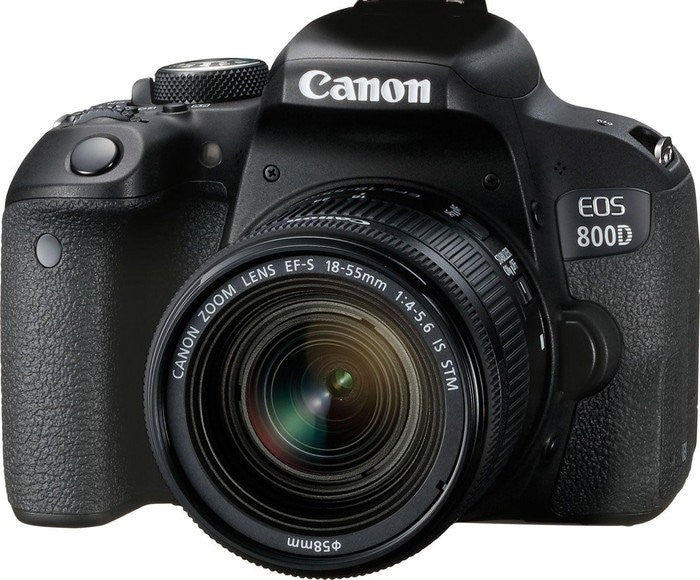

Canon Eos Camera Pro - 800D 18-55 IS Stm

Image Sensor Type 22.3mm x 14.9 mm CMOS Effective Pixels Approx. 24.20 megapixels Total Pixels Approx. 25.80 megapixels Aspect Ratio 3:2 Low-Pass Filter Built-in/Fixed Sensor Cleaning EOS integrated cleaning system Colour Filter Type Primary Colour Image Processor Type DIGIC 7 Lens Lens Mount EF/EF-S Focal Length Equivalent to 1.6x the focal length of the lens Image Stabilisation Optical Image Stabilizer on compatible lens Movie: In-camera 5-axis Digital IS available. Further stabilisation enhancements from lenses compatible with Dynamic IS 1 Focusing Type Via optical viewfinder: TTL-CT-SIR with a CMOS sensor Via liveview on LCD screen: Dual Pixel CMOS AF System. Phase detection pixels built onto imaging sensor 2 AF System/ Points Via optical viewfinder: 45 cross-type AF points (45 f/5.6 cross-type AF points, 27 f/8 points (9 cross-type), centre point is f/2.8 and f/5.6 dual cross-type) 3 Via liveview on LCD screen: Maximum 49 AF points (Fixed location on 7×7 grid) via camera automatic selection 4 Freely position 1 AF point/ 1 AF Zone (9 points, 3×3 grid) via manual selection 5 AF working range Via optical viewfinder: EV -3 – 18 (at 23 °C & ISO 100) with centre AF point & f/2.8 or brighter lenses Via liveview on LCD screen: EV -2 – 18 (at 23 °C & ISO 100) with One-Shot AF AF Modes AI Focus One Shot AI Servo (AI Servo II algorithm) AF Point Selection Via optical viewfinder: Automatic selection: 45 point AF Manual selection: Single point AF Manual selection: Zone AF Manual selection: Large Zone AF Selected AF point display Indicated by a transmissive LCD in viewfinder and Quick Control screen Predictive AF Yes6 AF Lock Locked when shutter button is pressed half way in One Shot AF mode or AF-ON Button is pressed. AF Assist Beam Intermittent firing of built-in flash (effective range up to 4.0 m) or emitted by optional dedicated Speedlite Manual Focus Selected on lens Exposure Control Metering modes Via optical viewfinder: 7560-pixel RGB+IR metering sensor Metering with the area divided into 63 segments (9 × 7) (1) Evaluative metering (linked to all AF points) (2) Partial metering (approx. 6.0 % of viewfinder) (3) Spot metering (approx. 3.5 % of viewfinder) (4) Center-weighted average metering Via liveview on LCD screen: (1) Evaluative metering (315 zones) (2) Partial metering (approx. 6.0 % of LCD screen) (3) Spot metering (approx. 2.6 % of LCD screen) (4) Center-weighted average metering Metering Range Via optical viewfinder: EV 1-20 (at 23 °C with 50mm f/1.4 lens ISO 100) Via liveview on LCD screen: EV 1-20 (at 23 °C, ISO 100, evaluative metering) AE Lock Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved. Manual: By AE Lock Button in creative zone modes. Exposure Compensation +/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB). AEB 3 shots +/-3 EV 1/3 or 1/2 stop increments ISO Sensitivity Auto (100-25600), 100-25600 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 51200 During Movie shooting: Auto (100-12800), 100-12800 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 256007 Shutter Type Electronically-controlled focal-plane shutter Speed 30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode) White Balance Type Automatic white balance with the imaging sensor Settings AWB (Ambience priority, White priority), Daylight, Shade, Cloudy, Tungsten light, White Fluorescent light, Flash, Custom, Colour Temperature Setting. White balance compensation: 1. Blue/Amber bias +/-9 levels 2. Magenta/ Green bias +/-9 levels Custom White Balance Yes, 1 setting can be registered WB Bracketing +/-3 levels in single level increments 3 bracketed images per shutter release. Selectable Blue/Amber bias or Magenta/ Green bias. Viewfinder Type Pentamirror Coverage (Vertical/Horizontal) Approx. 95 % Magnification Approx. 0.82x 8 Eyepoint Approx. 19 mm (from eyepiece lens centre) Dioptre Correction -3 to +1 m-1 (dioptre) Focusing Screen Fixed (Translucent LCD screen for information overlay) Mirror Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF 600mm f/4 IS USM or shorter) Viewfinder Information AF information: AF points, focus confirmation, AF area selection mode Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB. Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light. Image information: Card information, maximum burst (1 digit display), Highlight tone priority (D+). Composition information: Grid, Electronic level, Aspect Ratio Other information: Warning icon, Flicker Detection Depth of field preview Yes, with Depth of Field preview button. Eyepiece shutter On strap LCD Monitor Type Vari angle touchscreen 7.7 cm (3.0″) 3:2 Clear View II TFT, approx. 1040 K sRGB dots Coverage Approx. 100% Viewing Angle (horizontally/vertically) Approx 170° Coating Anti smudge Brightness Adjustment Adjustable to one of seven levels Display Options (1) Quick Control Screen (2) Camera settings (3) Electronic Level Flash Built-in Flash GN (ISO 100, meters) 12 Built-in Flash Coverage up to 17mm focal length (35mm equivalent: approx. 28mm) Built-in Flash recycle time Approx. 3 seconds Modes Auto, Manual flash, Integrated Speedlite Transmitter Red-Eye Correction Yes – with red-eye reduction lamp X-sync 1/200 sec Flash Exposure Compensation ‘+/- 2 EV in 1/2 or 1/3 increments Flash Exposure Bracketing Yes, with compatible External Flash Flash Exposure Lock Yes Second Curtain Synchronisation Yes HotShoe/ PC terminal Yes/ No External Flash Compatibility E-TTL II with EX series Speedlites, wireless optical multi-flash support External Flash Control via camera menu screen Shooting Modes Scene Intelligent Auto (Stills and Movie), No Flash, Creative Auto, Portrait, Landscape, Close-up, Sports, SCN(Group Photo,Night Portrait, Handheld Night Scene, HDR Backlight Control, Food, Kids, Candlelight), Creative filters, Program AE, Shutter priority AE, Aperture priority AE, Manual (Stills and Movie) Picture Styles Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3) Colour Space sRGB and Adobe RGB Image Processing Highlight Tone Priority Auto Lighting Optimizer (4 settings) Long exposure noise reduction High ISO speed noise reduction (4 settings) Multi Shot Noise Reduction Auto Correction of Lens Peripheral illumination, Chromatic aberration correction, Distortion correction, Diffraction correction Creative filters (Grainy B/W, Soft focus, Fish-eye effect, Art bold effect, Water painting effect, Toy camera effect, Miniature effect, HDR art standard, HDR art vivid, HDR art bold, HDR art embossed) Multi-exposure RAW image processing – during image Playback only Resize to M or S1, S2 Drive modes Single, Continuous L, Continuous H, Self timer (2s+remote, 10s +remote) Continuous Shooting Max. Approx. 6fps. (speed maintained until card is full) (JPEG) 910(with UHS-I card), 27 images (RAW)(with UHS-I card)) 1112 Live View Mode Coverage Approx. 100% (horizontally and vertically) Frame Rate 29.97 fps Focusing Manual Focus (Magnify the image 5x or 10x at any point on screen) Autofocus: Dual Pixel CMOS AF (Face detection and Tracking AF, FlexiZone-Multi, FlexiZone-Single) One-shot AF and Servo AF selectable for Stills and Movie Metering Real-time evaluative metering with image sensor. Evaluative metering, partial metering, spot metering, center-weighted average metering. Display Options Grid overlay (x3), Histogram, Electronic level, File Type Still Image Type JPEG: Fine, Normal (Exif 2.30 [Exif Print] compliant) / Design rule for Camera File system (2.0) RAW: 14bit, Canon original RAW 2nd edition Digital Print Order Format [DPOF] Version 1.1 compliant RAW+JPEG simultaneous recording RAW, RAW + L possible. Image Size JPEG 3:2: (L) 6000 x 4000, (M) 3984 x 2656, (S1) 2976 x 1984, (S2) 2400×1600, JPEG 4:3: (L) 5328×4000, (M) 3552×2664, (S1) 2656×1992, (S2) 2112×1600, JPEG 16:9: (L) 6000×3368, (M) 3984×2240, (S1) 2976×1680, (S2) 2400×1344, JPEG 1:1: (L) 4000×4000, (M) 2656×2656, (S1) 1984×1984, (S2) 1600×1600, RAW: (RAW) 6000×4000 Movie Type MP4 (Video: H.264 Intra frame / inter frame, Sound: Linear PCM / AAC, recording level can be manually adjusted by user) Movie Size 1920 x 1080 (59.94, 50 fps) inter-frame 1920 x 1080 (29.97, 25, 23.98 fps) inter frame 1920 x 1080 (29.97, 25) lite inter-frame 1280 x 720 (59.94, 50 fps) inter-frame 1280 x 720 (29.97, 25) lite inter-frame 640 x 480 (29.97, 25) inter-frame 640 x 480 (29.97, 25) lite interframe Movie Length Max duration 29min 59sec, Max file size 4GB (If file size exceeds 4GB a new file will be created automatically) Folders New folders can be manually created and selected File Numbering (1) Consecutive numbering (2) Auto reset (3) Manual reset Other Features Custom Functions 15 Custom Functions Metadata Tag User copyright information (can be set in camera) Image rating (0-5 stars) LCD Panel / Illumination Yes / Yes Intelligent Orientation Sensor Yes Playback zoom 1.5x – 10x Display Formats (1) Single image with information (2 levels) (2) Single image (3) 4 image index (4) 9 image index (5) 36 image index (6) 100 image index (7) Jump Display Slide Show Choose images with Image Search Playback time: 1/2/3/5/10/20 seconds Repeat: On/Off Background music: On/Off Transition effect: Off, Slide in 1, Slide in 2, Fade 1, Fade 2, Fade 3 Histogram Brightness: Yes RGB: Yes Highlight Alert Yes Image Erase/Protection Erase: Select image, select range, all images in folder, all images on a card, all found images (during image search) Protection: Single image, select range, all images in folder, all images on a card, all found images (during image search) Menu Categories (1) Shooting menu (x5) (2) Playback menu (x3) (3) Setup menu (x4) (4) Display Options menu (5) My Menu Menu Languages 25 Languages English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese Firmware Update Update possible by the user. Interface Computer Hi-Speed USB Other Video output (PAL/ NTSC) (integrated with USB terminal), HDMI mini output (HDMI-CEC compatible), External microphone (3.5mm Stereo mini jack) Direct Print Canon Printers Canon Compact Photo Printers and PIXMA Printers supporting PictBridge PictBridge Yes Storage Type SD, SDHC, SDXC (UHS Speed Class 1 compatible) Supported Operating System PC & Macintosh Windows 10 / 8.1 / 8 / 7 (With Microsoft .NET Framework 4.5 is installed) 13 Mac OS X 10.9 / 10.10 / 10.11 / 10.12 Software Image Processing Digital Photo Professional 4 (RAW Image Processing) Other EOS Utility EOS Lens Registration Tool EOS Web Service Registration Tool EOS Sample Music Picture Style Editor Camera Connect app available on iOS and Android devices Power Source Batteries 1 x Rechargeable Li-ion Battery LP-E17 Battery life Viewfinder: Approx. 600 (at 23°C, AE 50%, FE 50%) 14 Viewfinder: Approx. 550 (at 0°C, AE 50%, FE 50%) Live View: Approve 270 (at 23°C, AE 50%, FE 50%) Live View: Approve 230 (at 0°C, AE 50%, FE 50%) Battery Indicator 4 levels Power saving Power turns off after 10/30 (10 sec viewfinder/30 sec live view, functions, image playback etc) sec, 30 sec, 1, 2, 4, 8, or 15 mins. Power Supply & Battery Chargers AC Adapter AC-E6(N), DC coupler: DR-E18, Battery charger LC-E17 Accessories Viewfinder Eyecup Ef Rubber Frame Ef E-series Dioptric Adjustment Lenses Eyepiece Extender EP-EX15II Magnifier MG-Ef Angle Finder C Case Semi Hard case EH26-L / EH27-L Wireless File Transmitter Built in Wi-Fi transmission Connectivity to Smart devices is possible with Android version 4.0-4.4/5.0-5.1 or iOS 7.1/8-8.3. NFC connectivity is possible only with compatible Android devices Bluetooth® (Specification version 4.1, Bluetooth low energy technology) 15 16 Lenses All EF and EF-S lenses Flash Canon Speedlites (90EX, 220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 430EX III-RT, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite, MR-14EX, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT) Remote Controller/ Switch Remote Switch RS-60E3, Remote Controller RC-6, Remote Controller BR-E1 Other Directional Stereo Microphone DM-E1, Hand Strap E2, GP-E2 All data is based on Canon standard testing methods except where indicated. Subject to change without notice. Following lenses are not compatible with in-camera digital stabilisation: EF50mm f/1.0L USM EF300mm, f/2.8L IS II USM EF600mm f/4L USM, EF50mm f/1.2L USM EF400mm f/2.8L USM EF600mm f/4L IS USM, EF85mm f/1.2L USM EF400mm f/2.8L II USM EF600mm f/4L IS II USM, EF85mm f/1.2L II USM EF400mm f/2.8L IS USM EF800mm f/5.6L IS USM, EF200mm f/1.8L USM EF400mm f/2.8L IS II USM EF1200mm f/5.6L USM, EF200mm f/2L IS USM EF500mm f/4L IS USM EF28-80mm f/2.8-4L USM, EF300mm f/2.8L USM EF500mm f/4L IS II USM EF200-400mm f/4L IS USM Extender, EF300mm f/2.8L IS USM EF500mm f/4.5L USM 1.4x Dual Pixel CMOS AF – AF is possible over an area of approx. 80% Vertical x 80% Horizontal of the frame Peripheral Cross type AF points will not function as a cross type AF points with the following lenses: EF 35-80mm f4-5.6 (II/III/USM), EF35-105mm f4.5-5.6 (USM). EF 80-200mm f4.5-5.6 (II) Maximum number of AF frame is dependent on selected image aspect ratio Dual Pixel CMOS AF – AF is possible over an area of approx. 80% Vertical x 80% Horizontal of the frame with EF300mm f/2.8L IS USM at 50kph Recommended Exposure Index with 50mm lens at infinity, -1m-1 dpt Large/Fine(Quality 8) resolution Sustained continuous shooting speed is tested based on Canon’s testing standard. Function requires compatible SDHC/SDXC UHS Speed Class 1 memory card, total number of frames captured varies depending on shooting subject, settings and brand of memory card Based on Canon’s testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc. Sustained continuous shooting speed is tested based on Canon’s testing standard. Function requires compatible SDHC/SDXC UHS Speed Class 1 memory card, total number of frames captured varies depending on shooting subject, settings and brand of memory card Software applications compatible with Windows 10 in Windows 10 Desktop Mode only Based on the CIPA Standard and using the batteries and memory card format supplied with the camera, except where indicated Equipped with Bluetooth® low energy technology. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Canon Europe Ltd. is under license. Other trademarks and trade names are those of their respective owners. Bluetooth connection requires smart device to be equipped with Bluetooth version 4.0 (or later). Also requires smart device to be using operating system iOS 8.4 (or later) or Android 5.0 (or later) as well as latest version of Camera Connect app installed
