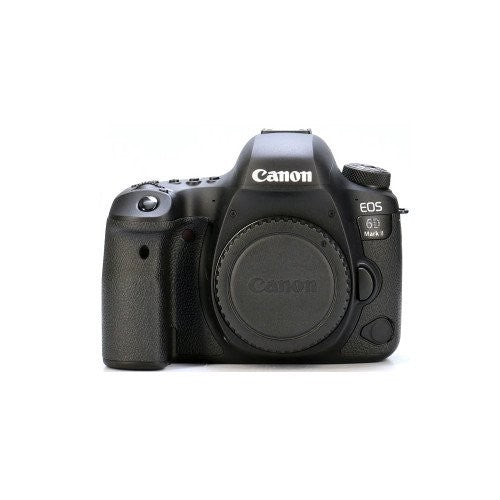

Canon Eos Camera Pro - 6D Mkii Body Only

Image Sensor Type Approx. 35.9 x 24.0 mm CMOS Effective Pixels Approx. 26.2 megapixels Total Pixels Approx. 27.1 megapixels Aspect Ratio 3:2 Low-Pass Filter Built in/Fixed Sensor Cleaning EOS integrated cleaning system Colour Filter Type Primary Colour Image Processor Type DIGIC 7 Lens Lens Mount EF (excludes EF-S, EF-M lenses) Focal Length Equivalent to 1.0x the focal length of the lens Image Stabilisation Optical Image Stabilizer on compatible lens Movie: In-camera 5-axis Digital IS available.1 Focusing Type Via optical viewfinder: TTL secondary image-forming phase detection system with AF dedicated sensor Via liveview on LCD screen: Dual Pixel CMOS AF System. Phase detection pixels built onto imaging sensor2 AF System/ Points Via optical viewfinder: 45 cross-type AF points (45 f/5.6 cross-type AF points, up to 27 f/8 (9 cross-type) points3, centre point is f/2.8 and f/5.6 dual cross-type and sensitive to -3 EV) The number of available cross-type AF points will differ depending on the lens. Via liveview on LCD screen: Maximum 63 AF points (Fixed location on 9×7 grid) via camera automatic selection4 AF working range Via optical viewfinder: EV -3 – 18 (at 23 °C & ISO 100) with centre AF point & f/2.8 or brighter lenses Via liveview on LCD screen: EV -2.5- 18 (at 23 °C & ISO 100) with One-Shot AF AF Modes Via optical viewfinder: One Shot AF Predictive AI Servo AF (AI Servo II algorithm) AI Focus AF Via liveview on LCD screen: One-Shot AF Servo AF AF Point Selection Via optical viewfinder: Automatic selection: 45 point AF Manual selection: Single point/ Spot AF Manual selection: Zone AF Manual selection: Large Zone AF AF points can be selected separately for vertical and horizontal shooting Via LCD screen: Automatic selection: Face AIAF + Tracking, up to 63 AF points when no subject/ face detected Manual selection via touch screen or freely position 1 AF point/ 1 AF Zone (9 points, 3×3 grid).5 Selected AF point display Superimposed in viewfinder and indicated on top LCD panel and Quick Control screen Predictive AF Yes6 AF Lock Locked when shutter button is pressed half way in One Shot AF mode or AF-ON Button is pressed. AF Assist Beam Emitted by an optional dedicated Speedlite or optional Speedlite Transmitter ST-E2 Manual Focus Selected on lens AF Microadjustment C.Fn II-16 +/- 20 steps (wide and tele setting for Zooms) Adjust all lenses by same amount Adjust up to 40 lenses individually Adjustments remembered for lens by serial number Exposure Control Metering modes Via optical viewfinder: 7560-pixel RGB+IR metering sensor Metering with the area divided into 63 segments (9 × 7) (1) Evaluative metering (linked to all AF points) (2) Partial metering (approx. 6.5 % of viewfinder) (3) Spot metering (approx. 3.2 % of viewfinder) (4) Center-weighted average metering Via liveview on LCD screen: (1) Evaluative metering (315 zones) (2) Partial metering (approx. 6.3 % of LCD screen) (3) Spot metering (approx. 2.7 % of LCD screen) (4) Center-weighted average metering Metering Range Via optical viewfinder: EV 1-20 (at 23 °C , ISO 100) Via liveview on LCD screen: EV 0-20 (at 23 °C, ISO 100, evaluative metering) AE Lock Auto: In 1-shot AF mode with evaluative metering exposure is locked when focus is achieved. Manual: By AE lock button in creative zone modes. Exposure Compensation +/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB). AEB 2, 3, 5 or 7 Shots +/-3 EV 1/3 or 1/2 stop increments ISO Sensitivity Stills: Auto (100 – 40000), 100 – 40000 (in 1/3-stop or whole stop increments), Manual ISO can be expanded to L: 50, H1: 51200, H2: 1024007 Movie: Auto (100 – 25600), 100 – 25600 (in 1/3-stop or whole stop increments), Auto ISO/ Manual ISO settings can be expanded to H1: 51200. H2: 1024008 Shutter Type Electronically-controlled focal-plane shutter Speed 30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode) White Balance Type Auto white balance with the imaging sensor Settings AWB (Ambeince priority/White priority), Daylight, Shade, Cloudy, Tungsten, White Fluorescent light, Flash, Custom, Colour Temperature Setting (Approx. 2500 K – 10000 K) White balance compensation: 1. Blue/Amber +/-9 2. Magenta/ Green +/-9. Custom White Balance Yes, 1 setting can be registered WB Bracketing +/-3 levels in single level increments 2, 3, 5 or 7 Selectable Blue/Amber bias or Magenta/ Green bias. Viewfinder Type Pentaprism Coverage (Vertical/Horizontal) Approx. 98 % Magnification Approx. 0.71×9 Eyepoint Approx. 21mm (from eyepiece lens centre) Dioptre Correction -3 to +1 m-1 (dioptre) Focusing Screen Fixed (Transmissive LCD screen) Mirror Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF600mm f/4 or shorter) Viewfinder Information AF information: AF points, focus confirmation, AF area selection mode, AF mode Exposure information: Exposure mode, Shutter speed, aperture value, ISO speed, AE lock, exposure level/compensation, Metering mode, spot metering circle, exposure warning, AEB. Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation, red-eye reduction light. Image information: Card information, maximum burst (2 digit display), Highlight tone priority (D+). Composition information: Grid, Electronic level, Aspect Ratio Other information: Drive mode, Battery level, Alert symbol, Flicker Detection, Image Quality (RAW/ JPEG) Depth of field preview Yes, with Depth of Field preview button. Eyepiece shutter On strap LCD Monitor Type Touch screen Vari angle 7.7cm (3.0″) 3:2 Clear View II TFT, approx. 1040K dots Coverage Approx. 100% Viewing Angle (horizontally/vertically) Approx. 170° Coating Anti smudge Brightness Adjustment Adjustable to one of seven levels Display Options (1) Quick Control Screen (2) Camera settings (3) Electronic Level Flash Modes E-TTL II Auto Flash, Metered Manual X-sync 1/180 sec Flash Exposure Compensation +/- 3EV in 1/2 or 1/3 increments Flash Exposure Bracketing Yes, with compatible External Flash Flash Exposure Lock Yes Second Curtain Synchronisation Yes HotShoe/ PC terminal Yes/ No External Flash Compatibility E-TTL II with EX series Speedlites, wireless multi-flash support (with optional accessory) External Flash Control via camera menu screen Shooting Modes Scene Intelligent Auto, Creative Auto, Special Scene (Portrait, Group Photo, Landscape, Sports, Kids, Panning10, Close-up, Food, Candlelight, Night Portrait, Handheld Night Scene, HDR Backlight Control), Program AE, Shutter-priority AE, Aperture-priority AE, Manual exposure, Bulb exposure, Custom (C1/C2) Picture Styles Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3) Colour Space sRGB and Adobe RGB Image Processing Highlight Tone Priority Auto Lighting Optimizer (4 settings) Long exposure noise reduction High ISO speed noise reduction (4 settings + Multi Shot Noise Reduction) Auto Correction of Lens Peripheral illumination, Distortion correction, Chromatic aberration correction and Diffraction correction Multi-exposure HDR Mode RAW image processing – during image Playback only Resize to M or S1, S2 Drive modes Single, Continuous L, Continuous H, Self timer (2s + Remote, 10s + Remote, Continuous), Silent single shooting, Silent continuous shooting Continuous Shooting Max. Approx. 6.5 fps. (speed maintained for up to 150 images in JPEG, 21 images in RAW)1112 intervalometer Built-in, number of shots selectable from 1-99 or unlimited. Bulb timer available Timelapse Movie mode available13 Live View Mode Type Electronic viewfinder with image sensor Coverage Approx. 100% (horizontally and vertically) Frame Rate 29.97 fps Focusing Manual Focus (Magnify the image 5x or 10x at any point on screen) Autofocus: Dual Pixel CMOS AF14, Tracking sensitivity (-3 to +3) and Movie Servo AF Speed (-7 to +2) Metering Real-time evaluative metering with image sensor Active metering time can be changed Display Options Grid overlay (x3), Histogram, Aspect ratios, Electronic Level File Type Still Image Type JPEG: Fine, Normal (Exif 2.30 [Exif Print] compliant) / Design rule for Camera File system (2.0), RAW: RAW, M-RAW, S-RAW (14bit, Canon original RAW 2nd edition), Digital Print Order Format [DPOF] Version 1.1 compliant RAW+JPEG simultaneous recording Yes, any combination of RAW + JPEG, M-RAW + JPEG, S-RAW + JPEG possible. Image Size JPEG 3:2: (L) 6240 x 4160, (M) 4160 x 2768, (S1) 3120 x 2080 (S2) 2400 x 1600 JPEG 4:3: (L) 5536 x 4160, (M) 3680 x 2768, (S1) 2768 x 2080, (S2) 2112 x 1600 JPEG 16:9: (L) 6240 x 3504, (M) 4160 x 2336, (S1) 3120 x 1752, (S2) 2400 x 1344 JPEG 1:1: (L) 4160 x 4160, (M) 2768 x 2768, (S1) 2080 x 2080, (S2) 1600 x 1600 RAW: (RAW) 6240 x 4160, (M-RAW) 4680 x 3120, (S-RAW) 3120 x 2080 Movie Type MP4: Movie: MPEG4 AVC / H.264 (Video: H.264 inter frame, Sound: Linear PCM / AAC, recording level can be manually adjusted by user) MOV: Motion JPEG (4K 29.97/25.00, time-lapse movies only) ALL-I (FHD 29.97/25.00, time-lapse movies only) Movie Size 1920 x 1080 (59.94, 50, 29.97, 25, 23.976 fps) IPB Standard or Light 1280 x 720 (59.94, 50, 29.97, 25 fps) IPB Standard or Light HDR movie15: 1920 x 1080 (59.94, 50, 29.97, 25, 23.976 fps) IPB (Standard, Light) Time-lapse movie: 3840 x 2160 ( 29.97, 25 fps) Motion JPEG 1920 x 1080 ( 29.97, 25 fps) ALL-I Movie Length Max duration 29min 59sec, Max file size 4GB (If file size exceeds 4GB a new file will be created automatically except in Timelapse Movie mode) Folders New folders can be manually created and selected File Numbering (1) Consecutive numbering (2) Auto reset (3) Manual reset Other Features Custom Functions 28 Custom Functions Metadata Tag User copyright information (can be set in camera) Image rating (0-5 stars) GPS coordinates: Latitude, Longitude, Elevation, Coordinated Universal Time (UTC), Satellite signal acquisition status LCD Panel / Illumination Yes / Yes Water/ Dust resistance Yes Sound Memo No Intelligent Orientation Sensor Yes Playback zoom 1.5x – 10x Display Formats (1) Single image with information (2 levels) (2) Single image (3) 4 image index (4) 9 image index (5) 36 image index (6) 100 image index (7) Jump Display (8) Movie/edit Slide Show Playback time: 1/2/3/5/10/20 seconds Repeat: On/Off Background music: On/Off Transition effect: Off, Slide in 1, Slide in 2, Fade 1, Fade 2, Fade 3 Histogram Brightness: Yes RGB: Yes Highlight Alert Yes Image Erase/Protection Erase: Single image, All images in folder, Checkmarked images, unprotected images Protection: Erase protection of one image at a time Menu Categories (1) Shooting menu (x5) (2) Playback menu (x3) (3) Setup menu (x5) (4) Custom Functions menu (5) My Menu Menu Languages 25 Languages English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean and Japanese GPS Compatible satellites: GPS satellites (USA), GLONASS satellites (Russia), Quasi-Zenith Satellite System (QZSS) MICHIBIKI (Japan)16 Position update interval: 1 sec., 5 sec., 10 sec., 15 sec., 30 sec., 1 min., 2 min., 5 min. Time setting: GPS time data set to camera Log data: One file per day, NMEA format Firmware Update Update possible by the user. Interface Computer Hi-Speed USB (USB 2.0) wifi Wi-Fi (2.4GHz) Channels: IEEE802.11b, IEEE802.11g, IEEE802.11n17 Wi-Fi Security Camera Access Point: WPA2-PSK with AES encryption or open Infrastructure: Shared key, with WEP encryption, WPA-PSK/WPA2-PSK with TKIP/AES encryption or open Bluetooth Bluetooth Specification Version 4.1 compliant (Bluetooth low energy technology)18 NFC NFC Forum Type 3/4 Tag compliant (dynamic) Other HDMI output (Type-C), External microphone (3.5 mm Stereo mini jack) Direct Print Canon Printers Canon Compact Photo Printers and PIXMA Printers supporting PictBridge PictBridge Yes (PictBridge via WLAN compatible) Storage Type SD, SDHC or SDXC (UHS-I) card Supported Operating System PC & Macintosh Windows 10 / 8.1 / 8 / 7 (With Microsoft .NET Framework 4.5 is installed)19 Mac OS X 10.9 / 10.10 / 10.11 / 10.12 Software Browsing & Printing Image Processing Digital Photo Professional 4 Other EOS Utility EOS Lens Registration Tool EOS Web Service Registration Tool EOS Sample Music Picture Style Editor Map Utility Power Source Batteries Rechargeable Li-ion Battery LP-E6N (supplied) Battery life Approx. 1200 shots (at 23°C, AE 50%, FE 50%)20 Approx. 1100 shots (at 0°C, AE 50%, FE 50%) Battery Indicator 6 levels + percentage Power saving Power turns off after 1, 2, 4, 8 or 15 mins. Power Supply & Battery Chargers AC Adapter AC-E6(N), DC coupler: DR-E6, Battery charger LC-E6E, Car Battery charger CBC-E6 Accessories Viewfinder Eyecup Eb, E-series Dioptric Adjustment Lens, Eyepiece Extender EP-EX15II, Angle Finder C Case Protecting Cloth PC-E1 Wireless File Transmitter Built in Wi-Fi transmission Lenses All EF lenses (excludes EF-S lenses & EF-M lenses) Flash Canon Speedlites (90EX, 220EX, 270EX, 270EX II, 320EX, 420EX, 430EX, 430EX II, 430EX III-RT, 550EX, 580EX, 580EX II, 600EX, 600EX-RT, Macro-Ring-Lite MR-14EX II, Macro Twin Lite MT-24EX, Speedlite Transmitter ST-E2, Speedlite Transmitter ST-E3-RT) Battery Grip Battery Grip BG-E21 Remote Controller/ Switch Remote Switch RS-80N3 Timer Remote Controller TC-80N3 Remote Controller RC-6 Wireless Remote Control BR-E1 (via Bluetooth) Other Hand Strap E2 Interface Cable IFC-400PCU Directional Stereo Microphone DM-E1 Weight and Dimensions Body Materials Chassis: Aluminum alloy and polycarbonate resin with glass fiber Body: Polycarbonate resin with special conductive fiber & Polycarbonate resin with glass fiber on some parts Operating Environment 0 – 40 °C, 85% or less humidity Dimensions (W x H x D) 144.0 x 110.5 x 74.8 mm Weight (including battery and card) Approx. 765 g All data is based on Canon standard testing methods except where indicated. Subject to change without notice. Following lenses are not compatible with in-camera digital stabilisation: EF50mm f/1.0L USM, EF300mm f/2.8L IS II USM, EF600mm f/4L USM, EF50mm f/1.2L USM, EF400mm f/2.8L USM, EF600mm f/4L IS USM, EF85mm f/1.2L USM, EF400mm f/2.8L II USM, EF600mm f/4L IS II USM, EF85mm f/1.2L II USM, EF400mm f/2.8L IS USM, EF800mm f/5.6L IS USM, EF200mm f/1.8L USM, EF400mm f/2.8L IS II USM, EF1200mm f/5.6L USM, EF200mm f/2L IS USM, EF500mm f/4L IS USM, EF28-80mm f/2.8-4L USM, EF300mm f/2.8L USM, EF500mm f/4L IS II USM, EF200-400mm f/4L IS USM 1.4x Extender, EF300mm f/2.8L IS USM, EF500mm f/4.5L USM Dual Pixel CMOS AF – AF is possible over an area of approx. 80% Vertical x 80% Horizontal of the frame The number of AF points, cross-type AF points, and dual cross-type AF points vary depending on the lens used. For full compatibility list please refer to product manual available on www.canon-europe.com/support Maximum number of AF frame is dependent on selected image aspect ratio Dual Pixel CMOS AF – AF is possible over an area of approx. 80% Vertical x 80% Horizontal of the frame With EF300mm f/2.8L IS USM at 50kph Recommended Exposure Index Recommended Exposure Index With 50mm lens at infinity, -1m-1 dpt Available when using Liveview via LCD. Maximum effect in Panning Mode available when using following lenses: EF 24-105mm f/4L II IS USM Based on Canon’s testing conditions, JPEG, ISO 100, Standard Picture Style. Varies depending on the subject, memory card brand and capacity, image recording quality, ISO speed, drive mode, Picture Style, Custom functions etc. Sustained continuous shooting speed is tested based on Canon’s testing standard. Function requires compatible SDHC/SDXC UHS Speed Class 1 memory card, total number of frames captured varies depending on shooting subject, settings and brand of memory card Following lenses are not compatible with in-camera digital stabilisation: EF 50mm f/1.2L USM, EF 85mm f/1.2L II USM, EF 200mm f/2L IS USM, EF 300mm f/2.8L IS II USM, EF 400mm f/2.8L IS II USM, EF 500mm f/4L IS II USM, EF 600mm f/4L IS II USM, EF 800mm f/5.6L IS USM and EF 200-400mm f/4L IS USM Dual Pixel CMOS AF – AF is possible over an area of approx. 80% Vertical x 80% Horizontal of the frame HDR Movie available in some SCN Modes only GPS use may be restricted in certain countries or regions. Use of GPS should comply with the laws and regulations of the country and area in which it is being operated including any restriction on the use of electronics. Wi-Fi use may be restricted in certain countries or regions. Bluetooth connection requires smart device to be equipped with Bluetooth version 4.0 (or later). Also requires smart device to be using operating system iOS 8.4 (or later) or Android 5.0 (or later) as well as latest version of Camera Connect app installed Software applications compatible with Windows 10 in Windows 10 Desktop Mode only Based on the CIPA Standard and using the batteries and memory card format supplied with the camera, except where indicated
