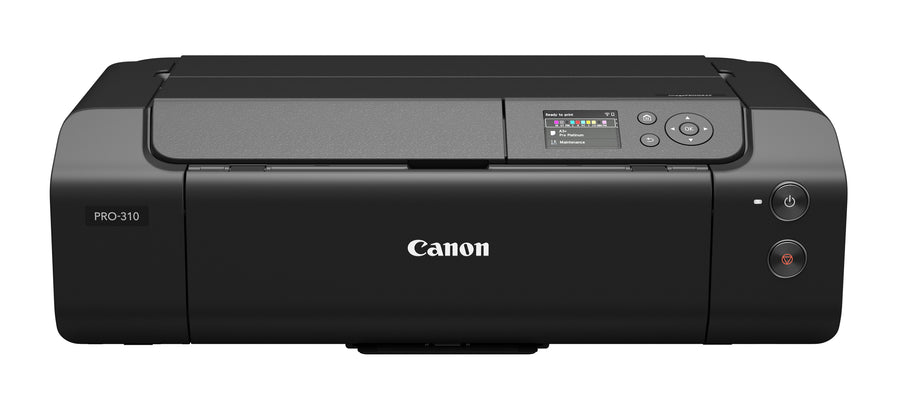

Canon - Imageprograf PRO-310

Specifications in detail General Specifications Class 13″ PRINT HEAD / INK Type Permanent Number of Nozzles Number of Nozzles: Total 7,680 nozzles (MBK/PBK/C/M/Y/PC/PM/GY/R/CO) each 768 nozzles x 10 Number of Ink Tanks 10 Colours – MBK/PBK/C/M/Y/PC/PM/GY/R/CO MAXIMUM PRINTING RESOLUTION Maximum Print Resolution 4800 (horizontal)1 x 2400 (vertical)2dpi PRINT SPEED Print speed Photo(11″x14″ image on A3+ with Border)3 Color/PT-101: approx.4 m 15s Black/PT-101: approx.4 m 15s MAXIMUM PRINTABLE PAPER SIZE Top Tray (width) Up to 329 mm (A3+)Borderless Printing Manual Feed (width) Up to 330.2 mm Custom (length) 1800mm PRINTABLE AREA Borderless Printing Top/Bottom/Right/Left margin: each 0 mm Bordered Printing Top margin:3 mm, Bottom margin:5 mm, Left/Right margin: each 3.4 mm (Sizes other than Letter or Legal) or Square 5” Top/Bottom/Right/Left margin: each 6.0mm, Recommended Top/Bottom margin for Fine Art Paper: each 25mm SUPPORT MEDIA Top Tray Plain Paper/ Photo Paper Pro Platinum (PT-101)/Photo Paper Plus Glossy II (PP-201)/ Photo Paper Pro Luster (LU-101)/ Photo Paper Plus Semi-gloss (SG-201)/ Matte Photo Paper (MP-101) / Lightweight Photo Paper/ Heavyweight Fine Art Paper / Canvas / Photo Paper (Grayscale Printing) /Photo Paper (Long-form Printing)/ Fine Art Paper (Long-form Print) /Greeting Card Manual Feed Photo Paper Pro Platinum (PT-101) / Photo Paper Plus Glossy II (PP-201)/Photo Paper Pro Luster (LU-101)/ Photo Paper Plus Semi-gloss (SG-201)/ Matte Photo Paper (MP-101)/ Photo Paper Pro Premium Matte (PM-101)/ Premium Fine Art Smooth(FA-SM)/ Premium Fine Art Rough/ Lightweight Photo Paper/ Heavyweight Photo Paper / Heavyweight Fine Art Paper / Extra Heavyweight Fine Art Paper/Highest Density Fine Art Paper / Canvas / Baryta Photo Paper / Photo Paper (Grayscale Printing) /Fine Art Paper (Grayscale Print) / Photo Paper (Long-form Printing) / Fine Art Paper (Long-form Print) /Greeting Card Multi-Purpose Tray Printable Disk PAPER SIZE Top Tray (Maximum Number) A5/A4/A3/ A3+/B5/B4/ 4″x6″(KG) / 5″×7″ / 7″×10″ / 8″×10″/ 9″ x13″ / 11″ x14″ / 10″×12″ / 12″x12″ / Square 5″ (127x127mm) Custom size(width 89mm – 329.0mm, length 127mm – 990.6mm or 1800mm) Manual Feed (Maximum Number) A5/A4/A3/A3+/B4/ 9″x13″ / 11″x14″/13″x19″ /8″x10″/ 10″x 12″/ 12″x12″ Custom size (width 203.2mm – 330.2mm, length 254.0mm – 990.6 mm or 1800mm) Multi-Purpose Tray Printable Disc 120 x120 mm PAPER SIZE (BORDERLESS) Paper Size (Borderless) A5/A4/A3/A3+/B5/B4 / 4″x6″ (KG) / 5″×7″ / Square 5″ (127x127mm) / 7″×10″ / 8″x10″ / 10″×12″ / 11″x14″/ 12″×12″/ 13″x19″ / Paper Handling Top Tray Plain Paper: A4/A5/B5 = 100 A3 = 50 Photo Paper Pro Platinum (PT-101): 4″x6″ (KG) = 20 A3/A4/2L/8″×10″ = 10 10″×12″/A3+ = 1 Photo Paper Plus Glossy II (PP-201): 4″x6″ (KG)/ Hagaki/Square 5″ (127×127 mm) = 20 A3/A4 8″×10″/5”x7” = 10 A3+ = 1 Photo Paper Pro Luster (LU-101): A4 /A3 = 10 A3+ = 1 Photo Paper Plus Semi-gloss (SG-201): 4″x6″ (KG) = 20 A4 /A3/5×7/8″×10″ = 10 10″×12″/A3+ = 1 Matte Photo Paper (MP-101): 4″x6″ (KG) = 20 A4 /A3 = 10 A3+ = 1 Manual Feed Photo Paper Pro Platinum (PT-101): A3/A4/8″×10″ /10″×12″/A3+ = 1 Photo Paper Plus Glossy II (PP-201): A4/A3/A3+ = 1 Photo Paper Pro Luster (LU-101): A4/A3/A3+ = 1 Photo Paper Plus Semi-gloss (SG-201): A4/A3/8″×10″ /10″×12″/A3+ = 1 Matte Photo Paper (MP-101): A4/A3/A3+ = 1 Photo Paper Pro Premium Matte (PM-101): A4/A3/A3+ = 1 Premium Fine Art Smooth (FA-SM): A4/A3/A3+ = 1 Premium Fine Art Rough (FA-RG1): A4/A3/A3+ = 1 Multi-Purpose Tray 1 (Multi-purpose Tray) PAPER WEIGHT Top Tray Plain Paper: 64-105 g/m2 Specialty paper: Up to 380 g/m2 Manual Feed Paper Thickness 0.1 ~0.6mm or less INK TANK Ink Model LUCIA PRO II Ink Tanks: PFI-5100 MBK/PBK/C/M/Y/PC/PM/GY/R/CO Page yield (4×6″ PT-101) Number of 10x15cm photos4 Matte Black (MBK): 1679 photos* Photo Black (PBK): 450 photos Grey (GY): 233 photos Cyan (C): 842 photos* Photo Cyan (PC): 704 photos* Magenta (M): 610 photos* Photo Magenta (PM): 430 photos* Yellow (Y): 551 photos* Red (R): 969 photos* Chroma Optimizer (CO): 256 photos * Estimated Supplemental Yield Page yield (A3+ PT-101) Number of A3+ photos5 Matte Black (MBK): 244 photos* Photo Black (PBK): 41 photos* Grey (GY): 48 photos* Cyan (C): 82 photos Photo Cyan (PC): 119 photos* Magenta (M): 100 photos* Photo Magenta (PM): 76 photos Yellow (Y): 108 photos Red (R): 134 photos* Chroma Optimizer (CO): 66 photos* * Estimated Supplemental Yield CONNECTIVITY Protocols SNMP/HTTP/TCP/IP(IPv4/IPv6) Interface USB B Port: Hi-Speed USB Wired LAN Network Type: IEEE 802.3 10base-T / IEEE 802.3u 100base-TX Data Rate: 10Mbps/100Mbps(Auto switching) Security: IEEE 802.1X(EAP-TLS/EAP-TTLS/PEAP) Wireless LAN Network Type: IEEE802.11n/IEEE802.11g/IEEE802.11b IEEE802.11a Frequency Band: 2.4GHz Range: Indoor 50 m depends on the transmission speed and conditions Security: WPA-PSK(AES) WPA2-PSK(AES) WPA3-SAE(AES) WPA-EAP(AES)* WPA2-EAP(AES)* WPA3-EAP(AES)* * IEEE802.1X(EAP-TLS/EAP-TTLS/PEAP) available Direct connection (Wireless LAN) Available SYSTEM REQUIREMENTS Supported Operating Systems Windows 7 SP1, Windows 8.1, Windows 10, Windows 11 Windows Server 2008 R2 SP16, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 Mac OS OS11.7.10 – OS15 Chrome OS Supported Mobile Systems iOS Android SOFTWARE SUPPORT Canon Professional Print & Layout Available Adobe Photoshop / Lightroom Supported via Canon PPL Plugin PRINT APPLICATIONS & METHODS Canon PRINT Available AirPrint Available Mopria Available Canon Print Service (for Android) Available Cloud Link Available OPERATION PANEL Display 3.0 inch/7.5cm LCD(Display Panel, Color) Language 33 Languages Selectable: Japanese/English(mm &inch) /German/French/Italian/Spanish/Dutch/Portuguese/Norwegian/ Swedish/Danish/Finnish/Russian/Czech/Hungarian/ Polish/Slovene/Turkish/Greek/Simplified Chinese/Traditional Chinese/ Korean/Indonesian/Slovakian/Estonian/Latvian/Lithuanian/ Ukrainian/Romanian/Bulgarian/Thai/Croatian/Vietnamese ACOUSTIC NOISE (PC PRINT) Acoustic Noise Plain Paper(A4, Color)7: Approx. 40.5dB(A) Photo Paper Pro Platinum (PT-101)(4×6,Color, borderless): Approx.38.5dB(A) Quiet Mode Available Power Power AC 100 – 240 V 50 /60 Hz Power consumption Standby (Minimum) (USB Connection to PC) Approx. 1.0W* *The wait time for standby cannot be changed. OFF Approx. 0.05W Printing (USB Connection to PC) Approx. 16W Standby (Sleep) for ErP Lot 26 regulation>: Approx. 2.3W Time to enter Standby Mode for ErP Lot 26 regulation> : Approx. 15 minutes Dimensions W x D x L With the trays retracted approx. 639 x 379 x 200 mm With the trays extended approx. 639 x 837 x 416 mm Weight Weight approx. 14.4 kg General Specifications Operating Environment Temperature: 5~35 ? Humidity: 10~90 %RH (no dew condensation)8 Recommended Environment Temperature: 15~30 ? Humidity: 10~80 %RH (no dew condensation)9 Storage Environment Temperature: 0~40 ? Humidity: 5~95 %RH (no dew condensation) Environment Energy saving: ErP Lot 6/26(EU) Resource saving/Recycle: WEEE(EU) Elimination of harmful substances: RoHS(Mainly EU), REACH(EU) Prints with a pitch of 1/2400 inch (ink droplets) at minimum. Prints with a pitch of 1/2400 inch (ink droplets) at minimum. Print speed is based on the default setting using ISO/JIS-SCID N2 and does not take into account data processing time on host computer. Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc. Declared yield value in accordance with ISO/IEC 29102. Values obtained by continuous printing. Right-click the image on Windows 10 and select “Print”from the menu to print. When printing ISO/JIS-SCID N2 test file at 11″ x 14” continuously on A3+ , with the default settings of testing paper using Windows 10 printer driver and Photoshop CC. Minimum system reguirements is according to that of OS and application software used. Acoustic Noise is measured based on ISO7779 standard with default setting. Print quality may deteriorate depending on temperature and humidity Refer to the paper package or the instruction manual supplied with the paper for temperature and humidity conditions of p
