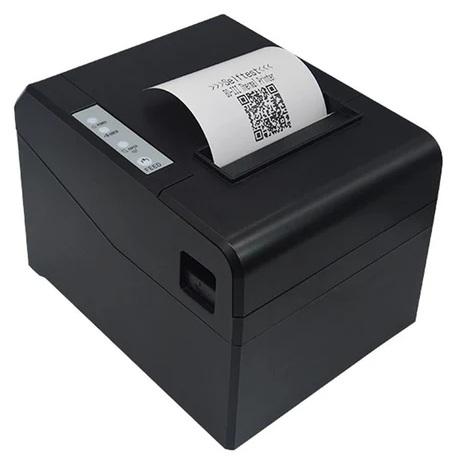

Bluetooth Thermal Receipt Printer

BLUETOOTH THERMAL RECEIPT PRINTER - 8330-A

USB + Bluetooth

Basic Characteristics

Product Name:  Receipt Printer

Item Number:  POS - 8330-A

It can be used for all kinds of Commercial in Retail POS Systems, Restaurant System

Industrial Control Systems in areas such as.

Light Weight and Portable

Beautiful Shape

Low Cost and High-Quality Thermal Printing

Cash Drawer Drive Supported

Easy Paper-Roll Installation, Easy Maintenance and Rational Structure

Low-Power Waste, Low-Run Cost (without the Ribbons, Ink Cartridges)

Built-In Data Buffers (be capable of receiving Print Data while Printing)

Characters can be amplified, Printed in bold optionally, and line spacing Printing can be adjusted

Support different density Bitmap Graphics Printing

Support NV Image Downloading and Printing

Support Raster Bitmap Printing

High-Speed Printing using Embedded soft fonts for all Interfaces

Compatible with ESC/POS Print Instruction Set, optional columns and font (adjusted by DIP Switch)

Advantage Characteristics

Audible and Visual Alarm External Device available (Best Application for kitchen Menu Printing)

Front-Feeding Structure (Water- & Oil-Resistant Design)

Parameter Detail

Printing Method: Thermal Line Printing

Character Size:  512 Dots / Line

Font A: 12 x 24 Dots, 1.5(W) x 3.0(H)mm

Font B: 9 x 17 Dots, 1.1(W) x 2.1(H)mm

Simplified / Traditional: 24 x 24 Dots,3.0(W) x 3.0(H)mm

Print Parameters: Support to Download the Logo Trademark

ANK:  ANK Characters

Extended Character Table

OEM437 / Katakana / OEM850 / OEM860 / OEM863 / OEM865 / West Europe

Greek / Hebrew East Europe / Iran / WPC1252 / OEM866 / OEM852 / OEM858

Iran II / Latvian / Arabic / PT1511251 / OEM747 / WPC1257 / Vietnam / OEM864

Hebrew / WPC1255 / Thai

Barcode Types: UPC-A / UPC-E / JAN13(EAN13 / JAN8 (EAN8) CODABAR ITF / CODE39 / CODE93 / CODE128

Print Speed: 300mm/second

Interface: Parallel / Serial Port / USB Port/ Ethernet

Emulation: ESC / POS command

Print Width:  79.5±0.5mm (Print Width 72mm)

Print Diameter:  83mm

Print Thickness: 0.06-0.08mm

Power:  DC24V / 2.5A

Cutter:  Full or Partial cut

Reliability Print:  100km

Weight:  2.2kg

Temperature:  0-45

Contrast Humidity:  10-80%

Drivers:  Win9X / Win2000 // Win2003 / Win Vista / Win 7 / Window XP /Win 8 / Linux

Compatible with ESPON, SAMSUNG

External Dimension (L x W x H):  190 x 145 x 145mm
