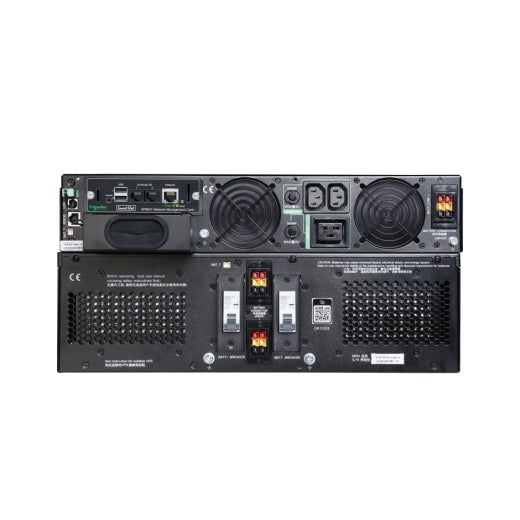

APC Smart-UPS RT 10kVA 230V
APC Smart-UPS RT 10kVA 230V The APC Smart-UPS RT 10kVA 230V is in our Uninterruptible Power Supply (UPS) range and available to order online from WeShopTech. Key details – Main Input Voltage: 230 V; Main Output Voltage: 230 V; Rated power in...
APC Smart-UPS RT 10kVA 230V
The APC Smart-UPS RT 10kVA 230V is in our Uninterruptible Power Supply (UPS) range and available to order online from WeShopTech. Key details – Main Input Voltage: 230 V; Main Output Voltage: 230 V; Rated power in W: 10000 W.
What's in the Box
- 1 x USB cable
- 1 x rack mounting brackets
- 1 x stabilization/wall mounting feet
- 1 x installation manual
- 1 x C13-C14 power cord
Technical Specifications
| Specification | Details |
|---|---|
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in W | 10000 W |
| Rated power in VA | 10000 VA |
| Output connector type | Hard wire 3-wire (H N + E) 1 |
| Number of rack unit | 5U |
| Network frequency | 40...70 Hz auto-sensing |
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Input voltage limits | 160...285 V full load |
| Maximum input current | 30 A |
| Max short time withstand current | 40 kA |
| Maximum configurable power in VA | 10000 VA |
| Maximum configurable power in W | 10000 W |
| Output frequency | 50/60 Hz +/- 4 Hz sync to mains |
| Wave type | Sine wave |
| Efficiency | 93.5 % |
| Crest factor | 3 : 1 |
| bypass type | Internal bypass (automatic and manual) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Battery type | Lead-acid battery |
| Battery recharge time | 4 h |
| Number of battery replacement quantity | 2 |
| Battery voltage | +/- 96 V |
| Battery charger power | 431 W rated |
| Replacement battery | APCRBC174 |
