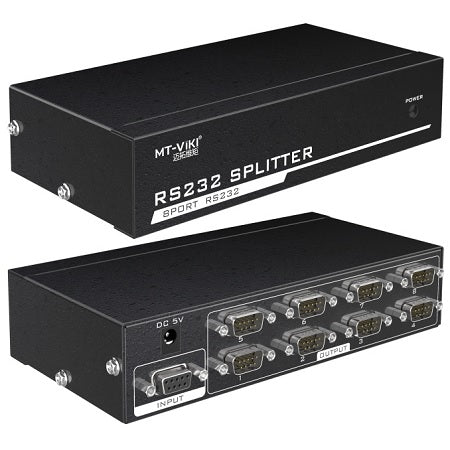

8 WAY SERIAL PORT SPLITTER
RS 232 SERIAL SPL ITTER. Application. RS232 Serial Splitter is widely used in a variety of small and medium- sized Multimedia Conference Room. The Central Control System. The Serial Splitter Product is Designed to solve the problem of such Engineering Applications. Users can use the Device will be an RS232 Interface Extended to 4 or 8 Port. Suitable for the need for RS232 Communication Port Expansion of the Engineering Application System. Pin Definition. Output Port Adopting DR9 Male. Wiring. The Computer Serial Port through the straight-through Serial Cable Connected to the RS232 Splitter's Input. The Output Port is also directly Connected to the Device by the straight-through Serial Cable. (That is, the Serial Line 2 to 2,3 to 3 Connected Lines). At this time the Product can be used as 1 in 4 Out or 1 in 8 Out.
Technical Specifications
| Specification | Details |
|---|---|
| Pin is defined as | 3-Pin Transmit, 2-Pin Receive, 5-Pin Ground (That is, Analog Computer Serial Output Order) |
| Product Name | Serial Port Splitter |
| Input Type | DR9 Female RS-232 |
| Baud Rate | 300-115200bps |
| Test Low Temperature | -20C 40C |
| Power Supply | DC5V |
| Model | MT-RS108 |
| Output Port Type | DR9 Female RS-232 |
| Communication Distance | 30M |
| Housing Material | Metal Iron Housing |
