8 Port Gigabit Switch
8 PORT GIGABIT SWITCH 8-Ports 10/100/1000Mbps Unmanaged Ethernet Switch. Hardware Specification. Standards and Protocols. IEEE802.3, IEEE802.3i, IEEE 802.3u. IEEE802.3ab, IEEE802.3x, IEEE802.3az. Network Media. Operation Mode. And Ports 1 - 7 Cannot Communicate with Each Other. Indicators. Environment. Technical Specifications Specification Details Model...

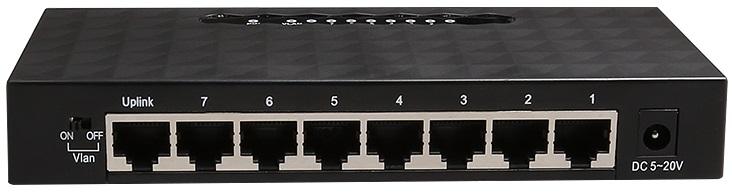

8 PORT GIGABIT SWITCH
8-Ports 10/100/1000Mbps Unmanaged Ethernet Switch. Hardware Specification. Standards and Protocols. IEEE802.3, IEEE802.3i, IEEE 802.3u. IEEE802.3ab, IEEE802.3x, IEEE802.3az. Network Media. Operation Mode. And Ports 1 - 7 Cannot Communicate with Each Other. Indicators. Environment.
Technical Specifications
| Specification | Details |
|---|---|
| Model Name | TXE210 |
| Chipset | EN8851FU |
| Interface | 8 x 10 / 100 / 100Mbps Auto -Negotiation Ports |
| 10Base-T | UTP Category 3, 4, 5 Cable (Maximum 100m) |
| 100Base-Tx | UTP Category 5, 5e Cable (Maximum 100m) |
| 1000Base-T | UTP Category 5, 5e Cable (Maximum 100m) |
| Transfer Method | Store-And-Forward |
| MAC Address Table | 8K |
| Switching Capacity | 16Gbps |
| Packet Forwarding Rate | 11.9Mpps |
| Packet Buffer | 4Mbits |
| Jumbo Frame | 15Kbytes |
| VLAN OFF | All Ports Can Communicate Normally |
| VLAN ON | Ports 1 - 7 Of The Switch Can Only Communicate With The Uplink Port |
| Per Device | Power (Green) VLAN (Green) |
| Per Port | Link/Activity (Green) |
| Power Supply | DC:5V/1A |
| Power Consumption | 2.72W (MAX.) |
| Dimensions (W x D x H) | 160.9 x 71.6 x 26.3mm |
| Operating Temperature | 0? - 40? |
| Storage Temperature | -40?- 70? |
| Operating Humidity | 10%~90% Non-Condensing |
| Storage Humidity | 5%~90% Non-Condensing |
