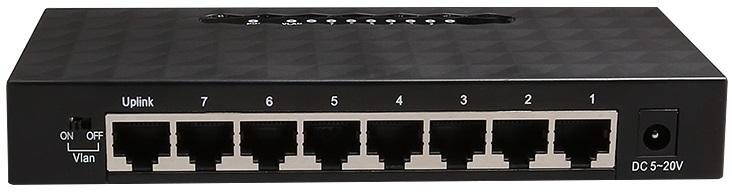

Mlink 8 Port Gigabit Switch
8 PORT GIGABIT SWITCH - TXE0998-Ports 10/100/1000Mbps Unmanaged Ethernet SwitchHardware SpecificationModel Name: TXE210Chipset: EN8851FUStandards and ProtocolsIEEE802.3, IEEE802.3i, IEEE 802.3uIEEE802.3ab, IEEE802.3x, IEEE802.3azInterface: 8 x 10 / 100 / 100Mbps Auto -Negotiation PortsNetwork Media10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)100Base-Tx: UTP Category 5,...
8 PORT GIGABIT SWITCH - TXE099
8-Ports 10/100/1000Mbps Unmanaged Ethernet Switch
Hardware Specification
Model Name: TXE210
Chipset: EN8851FU
Standards and Protocols
IEEE802.3, IEEE802.3i, IEEE 802.3u
IEEE802.3ab, IEEE802.3x, IEEE802.3az
Interface: 8 x 10 / 100 / 100Mbps Auto -Negotiation Ports
Network Media
10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
100Base-Tx: UTP Category 5, 5e Cable (Maximum 100m)
1000Base-T: UTP Category 5, 5e Cable (Maximum 100m)
Transfer Method: Store-And-Forward
MAC Address Table: 8K
Switching Capacity: 16Gbps
Packet Forwarding Rate: 11.9Mpps
Packet Buffer: 4Mbits
Jumbo Frame: 15Kbytes
Operation Mode
VLAN OFF: All Ports Can Communicate Normally
VLAN ON: Ports 1 - 7 Of The Switch Can Only Communicate With The Uplink Port
And Ports 1 - 7 Cannot Communicate With Each Other
Indicators
Per Device: Power (Green) VLAN (Green)
Per Port: Link/Activity (Green)
Power Supply: DC:5V/1A
Power Consumption: 2.72W (MAX.)
Dimensions (W x D x H): 160.9 x 71.6 x 26.3mm
Environment
Operating Temperature: 0? - 40?
Storage Temperature: -40?- 70?
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
