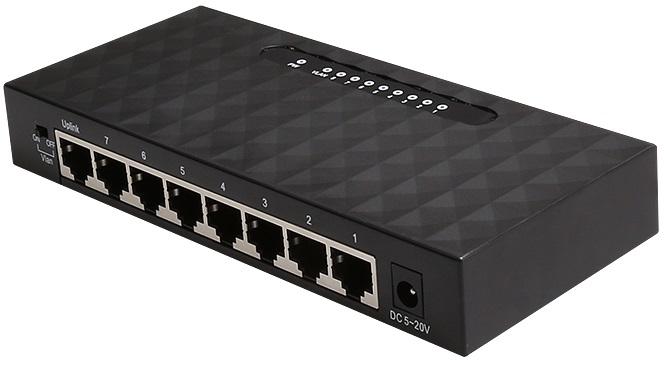

Mlink 8 Port 10/100 Switch

8 PORT 10/100 SWITCH - TXE059

8-Port 10/100Mbps Unmanaged Switch

Description

TXE059 Is A 10/100Mbps On Management Switch, which provides 8 10/100Mbps RJ45 Ports

And Supports Wire Speed Forwarding Of All Ports

It Supports IEEE802.3az Energy Efficient Ethernet (EEE) Technology

IEEE802.3x Full Duplex flow control function and Half Duplex back pressure flow control function

TXE059 has a Durable Design, quiet operation, simple and Convenient Use

No Configuration, Plug and Play, very suitable for Small Office

Home office (SoHo), Small and Medium Business (SMB) Environment

Features

Comply with IEEE802.3, IEEE802.3ii, IEEE 802.3u, IEEE802.3xx, IEEE802.3az Ethernet Standards

Support 8 x10/100Mbps Auto-Negotiation RJ45 Ports

Support Auto MDI/MDIX

Supports IEEE802.3x Flow Control For Full-duplex Mode And Backpressure For Half-Duplex Mode

Supports IEEE802.3az Energy Efficient Ethernet (EEE) Technology

1K entry MAC Address Table of the Switch with Auto-Learning and Auto-Aging

LED Indicators for Monitoring Port Link / Activity

External Power Supply, Exquisite Design, suitable for Desktop Install and Use

Specification

Model Name: TXE059

Chipset: IP178G

Standards And Protocols: IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3az

Interface: 8 x 10/100Mbps Auto-Negotiation Ports

Network Media: 10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)

100Base-Tx: UTP Category 5, 5e Cable (maximum 100m)

Transfer Method: Store-And-Forward

MAC Address Table: 1K

Switching Capacity: 1.6Gbps

Packet Forwarding Rate: 1.19Mpps

Indicators

Per Device Power

Per Port Link/Activity

Power Supply DC:5V,0.5A External Power

Power Consumption Maximum: 1.7W (220V/50Hz)

Dimensions (W x D x H): 130.7 x 52.3 x 20mm

Environment

Operating Temperature: 0 - 45

Storage Temperature: -40 - 70Operating

Humidity: 10% - 90% Non-Condensing

Storage Humidity: 5% - 90% Non-Condensing
