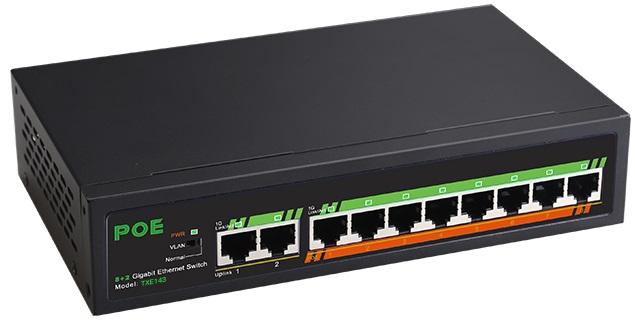

8+2 Gigabit PoE Switch
8+2 GIGABIT POE SWITCH 8-Ports 10/100/1000Mbps PoE + 2 Ports. 10/100/1000Mbps Uplink Unmanaged Ethernet Switch. Hardware Specification. Standards and Protocols. IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x. IEEE802.3az, IEEE802.1q,IEEE802.3at, IEEE802.3af. Network Media. Indicators. Environment. 2 PIN Powercord Included. Technical Specifications Specification Details Model Name TXE323...
8+2 GIGABIT POE SWITCH
8-Ports 10/100/1000Mbps PoE + 2 Ports. 10/100/1000Mbps Uplink Unmanaged Ethernet Switch. Hardware Specification. Standards and Protocols. IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x. IEEE802.3az, IEEE802.1q,IEEE802.3at, IEEE802.3af. Network Media. Indicators. Environment. 2 PIN Powercord Included.
Technical Specifications
| Specification | Details |
|---|---|
| Model Name | TXE323 |
| Chipset | AN8855H+TMI7608 |
| Interface | 10 x 10/100Mbps Auto -Negotiation Ports |
| 10Base-T | UTP Category 3, 4, 5 Cable (Maximum 100m) |
| 100Base-Tx | UTP Category 5, 5e Cable (Maximum 100m) |
| 1000Base-T | UTP Category 5, 5e Cable (Maximum 100m) |
| Transfer Method | Store-And-Forward |
| Switching Capacity | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| PoE Ports(RJ45) | 8 x PoE Ports Compliant With 802.3at/af |
| Power Pin Assignment | 1/2(+),3/6(-) |
| PoE Budget | 90W |
| Per Device | Power |
| Per Port | Link/Activity |
| Power Supply | 180 - 240VAC, 50/60Hz |
| Power Consumption | Maximum(PoEon): 95W (220V/50Hz) |
| Dimensions ( W x D x H ) | 220 x 160 x 40mm |
| Operating Temperature | 0? - 45? |
| Storage Temperature | -40?- 70? |
| Operating Humidity | 10%~90% Non-Condensing |
| Storage Humidity | 5%~90% Non-Condensing |
