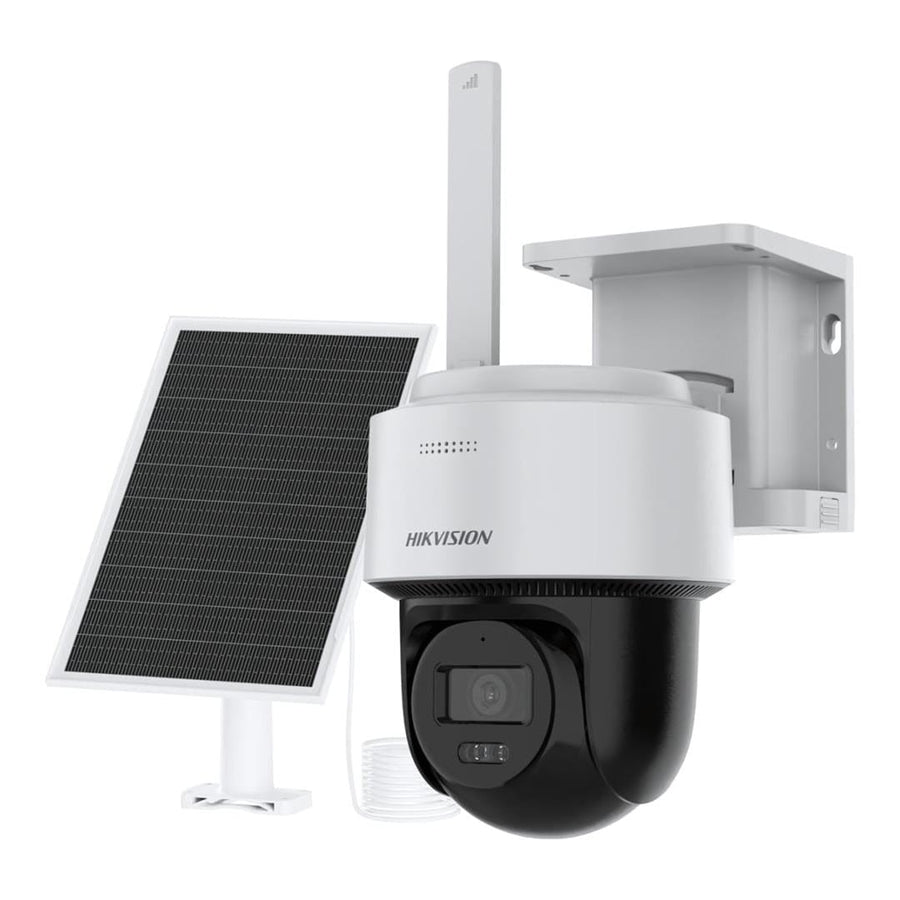

Hikvision 4mm 4G Battery Cam with Solar Panel

Hikvision 4MP 24/7 Solar 4G PT Camera

Features:

• Support AOV Mode：24/7 video recording
• 8 W solar panel and 9000 mAh battery
• Support 4G LTE data transmission
• Smart Hybrid Light: 30 m white light and IR
• Motion Detection 2.0: Support person and vehicle detection
• Built-in microphone and speaker, support two-way audio
• Water and dust resistant (IP66)
• Smart Tracking: PT Camera achieves person tracking with Motion Detection 2.0

Technical Specifications:

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Maximum Resolution: 2560 × 1440
Minimum Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter

Lens
Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & Field of View:
2.8 mm: Horizontal 95.7°, Vertical 51.7°, Diagonal 113.7°
4 mm: Horizontal 79.6°, Vertical 43.2°, Diagonal 93.2°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.28

PTZ
Pan Range: 0° to 340°
Tilt Range: 0° to 80°
Pan Speed: Up to 20°/s
Tilt Speed: Up to 25°/s

DORI
2.8 mm: Detect 63.9 m, Observe 25.4 m, Recognize 12.8 m, Identify 6.4 m
4 mm: Detect 77.6 m, Observe 30.8 m, Recognize 15.5 m, Identify 7.8 m

Illuminator
Supplement Light Type: IR and White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream:
50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Video Bit Rate: 32 Kbps to 8 Mbps
H.265 Profile: Main Profile
Bit Rate Control: CBR, VBR

Audio
Audio Compression: G.711ulaw
Audio Bit Rate: 64 Kbps (G.711ulaw)
Audio Sampling Rate: 8 kHz / 16 kHz
Environment Noise Filtering: Yes

Network
Simultaneous Live View: Up to 6 channels
API: ISAPI
User/Host: Up to 32 users (Administrator, Operator, User)

Client & Mobile Communication
Client: Hik-Connect
Mobile Communication Standard: LTE-FDD, LTE-TDD, UMTS
Supported Frequencies:
EU LTE-FDD: B1 / 3 / 5 / 7 / 8 / 20 / 28
LA LTE-FDD: B2 / 3 / 4 / 5 / 7 / 8 / 28 / 66
Data Rate:
EU / IN / LA: LTE Cat 1 – Uplink 5.1 Mbps, Downlink 10.3 Mbps
NA / JP: LTE Cat 4 – Uplink 50 Mbps, Downlink 150 Mbps
SIM Card Type: Nano SIM

Image Settings: Saturation, brightness, contrast, sharpness, white balance
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: Digital WDR

Interface
On-Board Storage: microSD / microSDHC / microSDXC up to 512 GB
Built-in Microphone: 1 microphone
Built-in Speaker: 1 speaker
Reset Key: Yes

Event
Basic Event: Motion detection with human and vehicle target classification
Linkage: Upload to FTP / NAS / memory card, notify surveillance center, trigger recording, capture, audible warning

General
Power Supply: 12 V DC, 0.75 A
Material: Plastic
Dimensions: 208 mm × 131 mm × 282.7 mm
Weight: Approx. 850 g
Package Dimensions: 386 mm × 201 mm × 225 mm
Weight with Package: Approx. 5400 g
General Functions: Mirror, flash log
Startup & Operating Conditions: 0 °C to 50 °C, ≤95% RH (non-condensing)
Storage Conditions: −30 °C to 60 °C, ≤95% RH (non-condensing)

Battery
Battery Type: Lithium
Capacity: 9000 mAh (3.7 V)
Battery Voltage: DC 6 V to DC 8.4 V
Max. Charging Voltage: 8.4 V
Max. Output Voltage: 8.4 V
Operating Temperature:
Charging: 0 °C to 45 °C
Discharging: −20 °C to 55 °C
Battery Life: More than 800 cycles

Approvals & Compliance
RF: CE-RED compliant (EU models only)
EMC: CE-EMC, ICES-003, KC compliant
Safety: IEC 62368-1, CE-LVD, BIS compliant
Environment: RoHS, WEEE, REACH compliant

Protection
Ingress Protection: IP66 (IEC 60529-2013)
