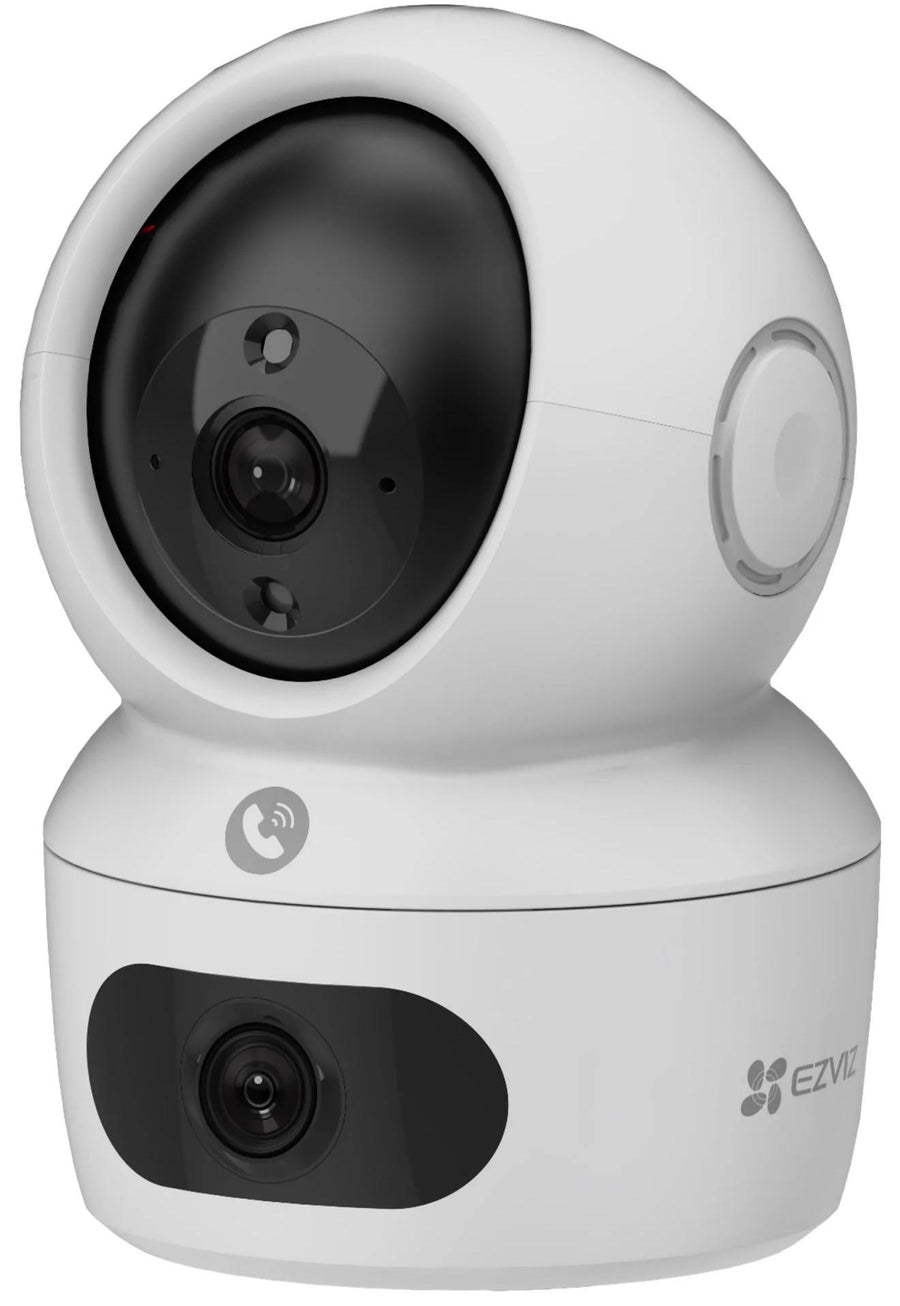

Ezviz 2K Dual Lens Camera - AI
EZVIZ H7C 2K DUAL LENS CAMERA - AI - E-H7CType - CH7C Dual 2K+ & 2K+Dual - Lens Pan & Tilt Wi - Fi CameraSpecificationsModel: CS-H7c-R100-8G44WFCameraResolution: Dual 2K+ ResolutionImage Sensor: 1/3" Progressive Scan CMOSShutter Speed: Self-Adaptive ShutterFixed Lens: 2.8mm@F1.6, View Angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical)PT Lens...
EZVIZ H7C 2K DUAL LENS CAMERA - AI - E-H7C
Type - C
H7C Dual 2K+ & 2K+
Dual - Lens Pan & Tilt Wi - Fi Camera
Specifications
Model: CS-H7c-R100-8G44WF
Camera
Resolution: Dual 2K+ Resolution
Image Sensor: 1/3" Progressive Scan CMOS
Shutter Speed: Self-Adaptive Shutter
Fixed Lens: 2.8mm@F1.6, View Angle: 108°(Diagonal), 92° (Horizontal), 50°(Vertical)
PT Lens : 6mm@F1.6 , View Angle: 60°(Diagonal), 51° (Horizontal), 28°(Vertical)
Lens Mount: M12
Day & Night: IR-Cut Filter with Auto-Switching
DNR: 3D DNR
WDR: Digital WDR
Compression
Video Compression: H.264/H.265
Video Bit Rate: Adaptive bit rate.
Network
Smart Alarm: Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection
Wi-Fi Pairing: AP Paring
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Max. Resolution: 2560 × 1440
Frame Rate: Max:30fps; Self-Adaptive during Network Transmission
Interface
Storage: Micro SD Card Slot (Max. 512G)
Power: TYPE-C
Wired Network: RJ45 X 1 (10M/100M Self-Adaptive Ethernet Port)
Wi-Fi
Standard: IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax
Frequency Range: 2.4GHz: 2.4 GHz - 2.4835 GHz 5GHz: 5.15GHz~5.25GHz
Channel Bandwidth: 2.4GHz Supports 20MHz 5GHz Supports 80MHz
Security: WPA-PSK, WPA2-PSK, WPA3-Personal
Transmission Rate: 2.4GHz Max. Rate Support: 11b_11M,11g_54M, 11n_MCS7_20M
11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M
11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M
Output Power(EIRP): 20 dBm
Antenna Gain: 2.56dBi@2.48GHz, 3.18dBi@5.22GHz
General
Operating Conditions: -10°C to 45°C ( -14 °F to 113 °F ) Humidity 95% or less (non-condensing)
Power Consumption: 8W max
Power Supply: DC 5V/2A
IR Range: MAX. 10 meters (32.81ft)
Dimensions: 88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in)
Package Dimensions: 200 × 105 ×105 mm (7.87 × 4.13 × 4.13 in)
Net Weight: 270 g (9.52 oz)
Bare Weight: 499 g (17.60 oz)
In The Box
Camera (x1)
Power Adapter (x1)
Power Cable (x1)
Drill Template (x1)
Mounting Plate (x1)
Screw Kit (x1)
Regulatory Information (x1)
Quick Start Guide (x1)
Certifications
Certifications: CE / UKCA / WEEE / RoHS / REACH / UL
