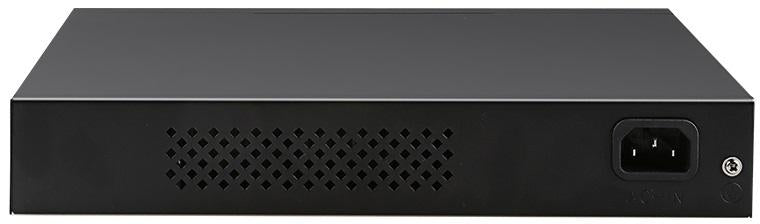

16 Port Gigabit Switch
16 PORT GIGABIT SWITCH - TXE01816 Ports 10/100/1000Mbps Unmanaged Ethernet SwitchHardware SpecificationModel Name: TXE241Chipset: EN8853D+EN8808QStandards and ProtocolsIEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3xInterface: 16 x 10/100/1000Mbps Auto-Negotiation PortsNetwork Media10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)100Base-Tx: UTP Category 5, 5e Cable (Maximum 100m)1000Base-T: UTP...
16 PORT GIGABIT SWITCH - TXE018
16 Ports 10/100/1000Mbps Unmanaged Ethernet Switch
Hardware Specification
Model Name: TXE241
Chipset: EN8853D+EN8808Q
Standards and Protocols
IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x
Interface: 16 x 10/100/1000Mbps Auto-Negotiation Ports
Network Media
10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
100Base-Tx: UTP Category 5, 5e Cable (Maximum 100m)
1000Base-T: UTP Category 5, 5e Cable (Maximum 100m)
Transfer Method: Store-And-Forward
MAC Address Table: 8K
Switching Capacity: 56Gbps
Packet Forwarding Rate: 23.8Mpps
Packet Buffer: 4Mbits
Jumbo Frame: 15Kbytes
Operation Mode
VLAN OFF: All Ports Can Communicate Normally
VLAN ON: Ports 1 - 7 Of The Switch Can Only Communicate With The Uplink Port
And Ports 1 - 7 Cannot Communicate With Each Other
Indicators
Per Device: Power (Green) VLAN (Green)
Per Port: Link/Activity (Green)
Power Supply: DC:5V/1A
Power Consumption: 6.3W(MAX.)
Dimensions (W x D x H): 238.7 x 89.5 x 21mm
Environment
Operating Temperature: 0 - 40
Storage Temperature: -40- 70
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
